Bug #112726
测试 Test-IT #110867: V1.0测试功能汇总
测试 Test-IT #110875: BSP-BVT测试-TP
【BSP】【EVT】【TP】VC1的屏幕中间部分TP坐标识别不准确，造成屏幕抖动，影响正常操作
| Status: | CLOSED | Start date: | 2022-10-20 | |
|---|---|---|---|---|
| Priority: | High | Due date: | ||
| Assignee: | CDTS_TEST 刘勇 | % Done: | 100% | |
| Category: | BSP | |||
| Target version: | 依赖客户及其供应商问题List | |||
| Need_Info: | -- | Found Version: | FlatBuild_VX1_MCE_xx.xx_FSE.R.user.0.0.0.20221020.alpha_0038 | |
| Resolution: | FIXED | Degrated: | -- | |
| Severity: | Major | Verified Version: | FlatBuild_HH_VX1_MCE_FSE.M.D.user.01.00.X101.202211160534 | |
| Reproducibility: | Every time | Fixed Version: | ||
| Test Type: | IT | Root cause: | 供应商更新固件 |
Description
【前提条件】
1、设备已开机
【测试步骤】
1、点击屏幕中间部分的应用
2、长按屏幕中间空白处
【预期结果】
1、进入应用
2、进入桌面编辑模式
【实际结果】
1、2：屏幕抖动，无法实现预期结果
Phone-STS40X190122 2022-10-20 10-11-09.mp4 (16 MB)
123.txt
(7.29 MB)
atmel.rar (238 KB)
History
#1 Updated by CD TEST-方永红 over 2 years ago
测试情况补充说明：
1：该情况为第一次刷新版本之后会概率出现，之后再重新刷该版本不能复现
2：随这时间的推移，屏幕抖动区域会慢慢变小，直到整个屏幕恢复正常（10点刷机后情况最严重，下午2点再尝试时屏幕已经恢复正常）
#2 Updated by CD BSP-余霄 over 2 years ago

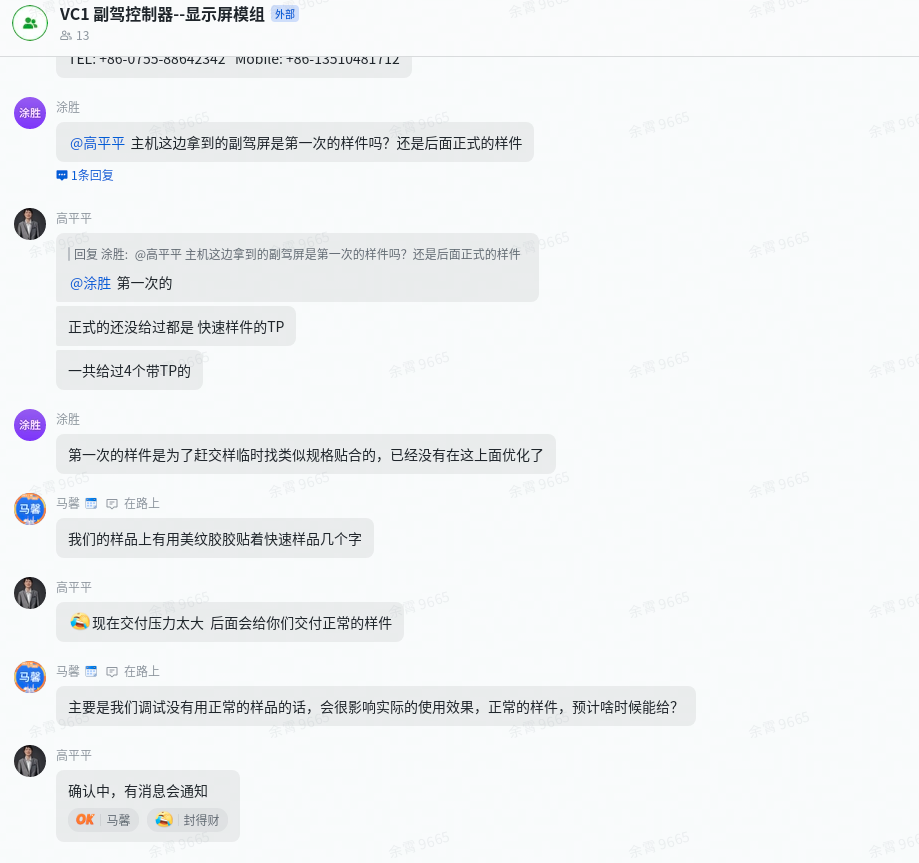

- File vc1tp.png added
- Status changed from New to RESOLVED
- Assignee changed from CD BSP-余霄 to CDTS_TEST 王成
确认目前所使用的样机为快速样机，非正式样机，待正式样机后再进行测试。
#3 Updated by CDTS_TEST 王成 over 2 years ago
- Target version changed from VX1_MCE_FSE_V3.0_20221030 to VX1_MCE_FSE_V3.0_update_20221130
等待客户提供正式VC1屏幕
#4 Updated by CDTS_TEST 王成 over 2 years ago
- Status changed from RESOLVED to NEED_INFO
#5 Updated by CDTS_TEST 王成 over 2 years ago
- Target version changed from VX1_MCE_FSE_V3.0_update_20221130 to 依赖客户及其供应商问题List
#6 Updated by CDTS_TEST 王成 over 2 years ago
- Assignee changed from CDTS_TEST 王成 to CD BSP-余霄
#7 Updated by CD BSP-余霄 over 2 years ago
- File atmel.rar added
- Assignee changed from CD BSP-余霄 to CDTS_TEST 王成
1.与供应商确认，当前屏幕非压力屏。
2.供应商更新了一版固件。
升级流程：
解压后运行
update_cfg.bat
验证升级流程：
readme.docx中的
2运行update_cfg.bat,与TP.raw(文本编辑可打开)文件中的数据对比，如果一致，表示升级成功
#8 Updated by CD BSP-余霄 over 2 years ago
- Status changed from NEED_INFO to RESOLVED
#9 Updated by CDTS_TEST 刘勇 over 2 years ago
- Assignee changed from CDTS_TEST 王成 to CDTS_TEST 刘勇
#10 Updated by CDTS_TEST 刘勇 over 2 years ago
- Status changed from RESOLVED to VERIFY_FAILED
- Assignee changed from CDTS_TEST 刘勇 to CD BSP-余霄
【HW】EVT1-VC1及快速屏、EVT2-VC1和IV2屏
【SW】
IV2屏：FlatBuild_HH_VX1_MCE_FSE.M.R.userdebug.01.00.0045.X101
快速屏： FlatBuild_VX1_MCE_xx.xx_FSE.R.userdebug.0.0.0.20221020.alpha_0038
【步骤】
1.DUT烧录UD版本（非User版本）
2.解压atmel.rar后运行update_cfg.bat
3.查看readme.docx中的
4.运行update_cfg.bat,与TP.raw(文本编辑可打开)文件中的数据对比，如果一致，表示升级成功
5.点击屏幕中间部分的应用、长按屏幕中间空白处
【实际结果】
4.升级固件成功到FC63CD
5.屏幕无抖动，可以进入应用、可以进入桌面编辑页面
【验证次数】：2次
【验证结论】当前固件升级未合入到MPU中，刷user并未进行自动升级
#11 Updated by CD BSP-余霄 over 2 years ago
- Status changed from VERIFY_FAILED to RESOLVED
- Assignee changed from CD BSP-余霄 to CDTS_TEST 刘勇
- Root cause set to 供应商更新固件
代码已合入，链接：
https://dev.thundercomm.com/gerrit/c/general/vendor/thundercomm/products/figure/+/161343
11号及之后版本可以验证
#12 Updated by CD BSP-余霄 over 2 years ago
- Resolution changed from -- to FIXED
#13 Updated by CD TEST-方永红 over 2 years ago
- Status changed from RESOLVED to VERIFIED
- % Done changed from 0 to 100
- Verified Version set to FlatBuild_HH_VX1_MCE_FSE.M.D.user.01.00.X101.202211160534
11.17
根据上述测试步骤
VC1屏幕触控、坐标识别等问题有明显改善，满足日常操作
先关闭
#14 Updated by CD TEST-方永红 over 2 years ago
- Status changed from VERIFIED to CLOSED
