Bug #116434
【BSP】【EVT3】【ST】【Boot】使用userdebug版本0068-0075 进行MCU异常断电压测问题，设备出现无法启动反复进recovery
| Status: | CLOSED | Start date: | 2023-02-22 | |
|---|---|---|---|---|
| Priority: | Normal | Due date: | ||
| Assignee: | CDTS_Test 吴诗雨 | % Done: | 100% | |
| Category: | BSP | |||
| Target version: | - | |||
| Need_Info: | TEST | Found Version: | userdebug 0068- userdebug 0075 | |
| Resolution: | FIXED | Degrated: | -- | |
| Severity: | Normal | Verified Version: | ||
| Reproducibility: | Occasionally | Fixed Version: | ||
| Test Type: | ST | Root cause: | 背光亮度值为０时，背光并未完全关闭 |
Description
【前提条件】
None
【测试步骤】
1. 烧写最新MCU mot 0.0.9
2. 然后烧0068的版本，这个mcu是 0.0.7 这里会生一次降级MCU降级，在降级过程中断电
3. 再烧0075的版本，MCU 0.0.9， 这里会生一次降级MCU降级，在降级过程中断电
4. 最后循环升降
【预期结果】
每次均能正常启动
【实际结果】
循环第十三次后，设备反复进行进入recovery
初步分析为key 未备份
History
#1 Updated by CD TPM-王祥林 over 2 years ago
- Category set to BSP
#2 Updated by CD BSP-杜磊 over 2 years ago
- Status changed from New to RESOLVED
- Assignee changed from CD BSP-杜磊 to 移动测试一组_CDTS 刘强
- Need_Info changed from -- to TEST
- Resolution changed from -- to FIXED
- Root cause set to 背光亮度值为０时，背光并未完全关闭
Hi, 刘强，
帮忙验证一下VB版本：
ftp://cdiot@192.168.87.46/Pre_figure/VerifyBuild/Pre_figure_turbox-c2130c-la1.1-qssi12-dev/20230301/202303012056-2775
验证方法：
1. 正常开机，确认一下屏幕能否正常显示，亮灭屏，背光调节是否正常,重启３０次。
2. 异常开机，进入recovery模式时，lcd是否还会有显示。
#3 Updated by CDTS_TEST 王成 over 2 years ago
- Priority changed from Normal to High
- Severity changed from Normal to Critical
#4 Updated by CDTS_Test 吴诗雨 over 2 years ago

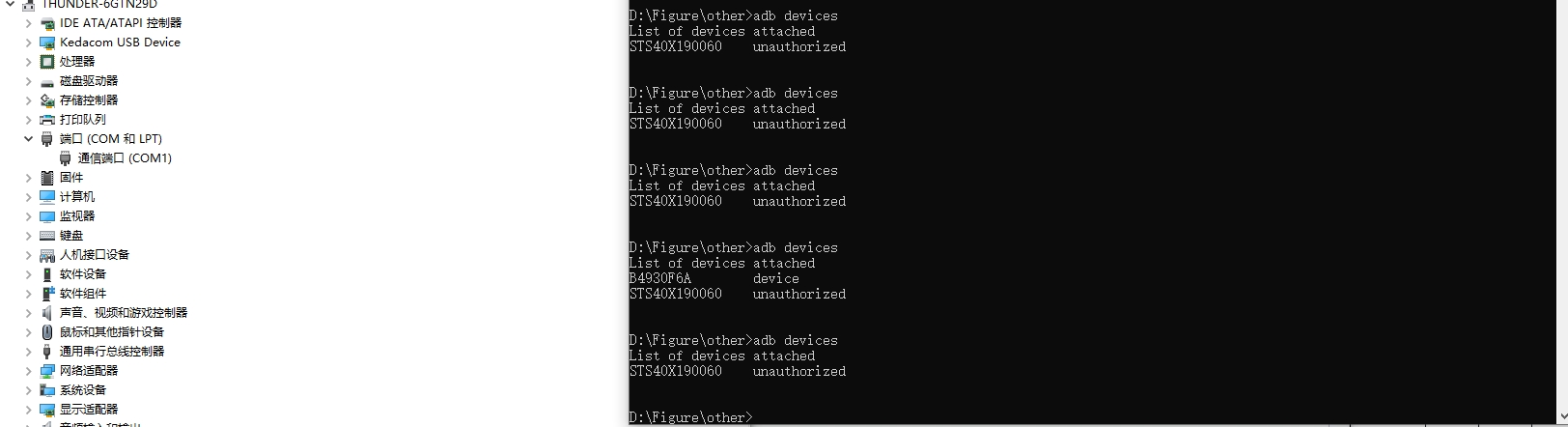

- File 20230306-173926.jpg added
- File 20230306-173908.jpeg added
- Priority changed from High to Normal
- Severity changed from Critical to Normal
【复现结果】
1、正常开机，重启30次，正常显示，亮灭屏，亮度调节正常

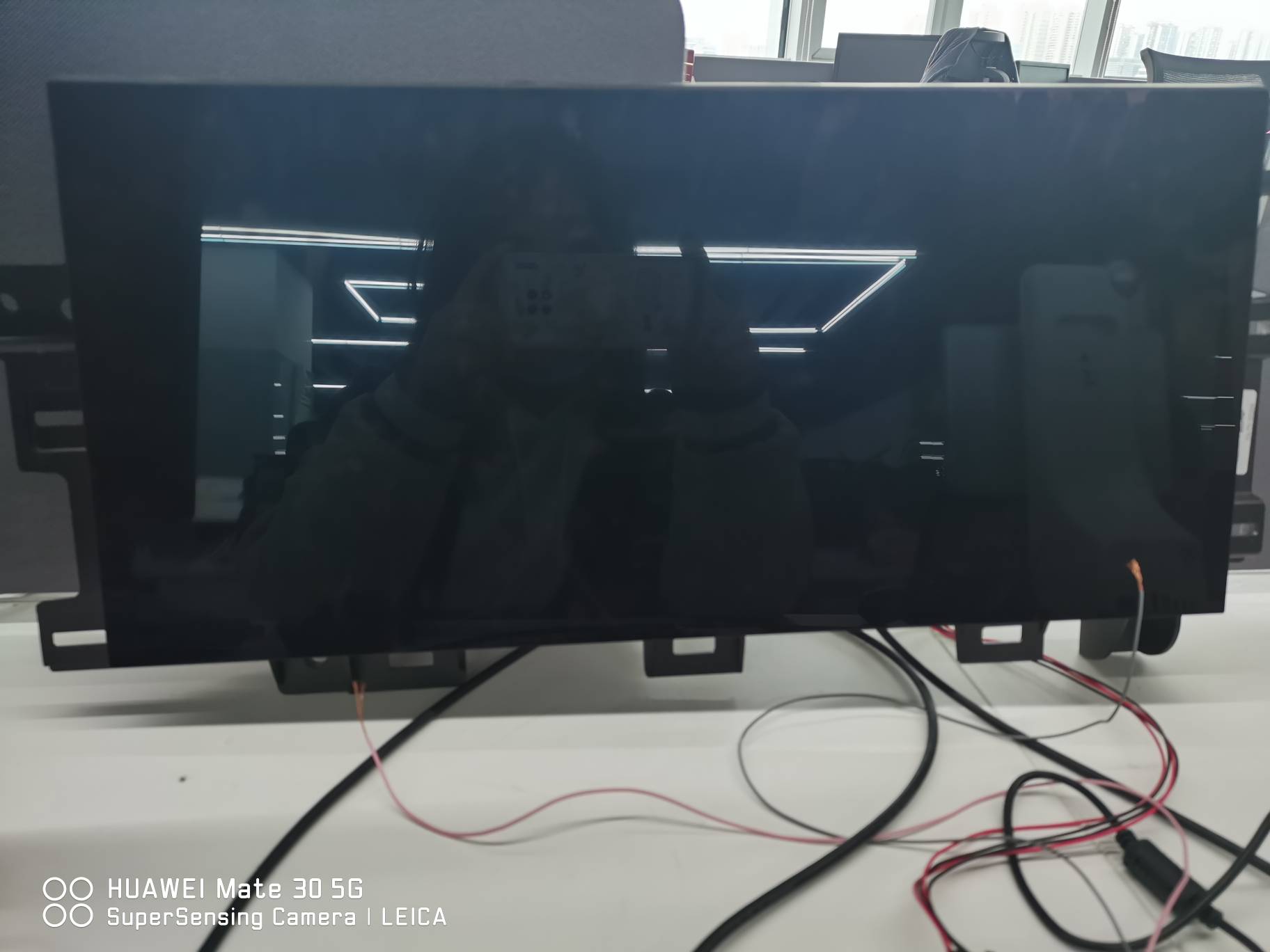

2、异常开机，删除/persist/key和/metadata/vold/*/key后，重启设备进入recovery模式，lcd呈黑屏状态，没有显示
#5 Updated by 移动测试一组_CDTS 刘强 over 2 years ago
- Assignee changed from 移动测试一组_CDTS 刘强 to CDTS_Test 吴诗雨
等合入正式版本后，麻烦再次验证，确认没问题后关闭
#6 Updated by IoT scm over 2 years ago
Gerrit Merge Information：
| ID | Project | Branch | Uploader |
| 185110 | general/abl/tianocore/edk2 | Pre_figure_turbox-c2130c-la1.1-vendor-dev | dulei0503@thundersoft.com |
| BSP:Display: Disable display in recovery mode[1/2] Check current whether in recovery mode TC-RID: 0301-0100805 IssueID: TS-R-DF-116434 Change-Id: I0c5170ab4b7ad8d2810b6811d9193b4d25393532 |
|||
#7 Updated by IoT scm over 2 years ago
Gerrit Merge Information：
| ID | Project | Branch | Uploader |
| 185107 | general/kernel/msm-4.19 | Pre_figure_turbox-c2130c-la1.1-vendor-dev | dulei0503@thundersoft.com |
| BSP:Display: Disable display in recovery mode[2/2] Disable display in recovery mode TC-RID: 0301-0100805 IssueID: TS-R-DF-116434 Change-Id: I275a4ce9e3cdd6b6d39f1f86f08c3f235aed0ad2 |
|||
#8 Updated by CD BSP-杜磊 over 2 years ago
- % Done changed from 0 to 100
#9 Updated by CDTS_Test 吴诗雨 over 2 years ago
- Status changed from RESOLVED to VERIFIED
【验证版本】FlatBuild_HH_MCE_FSE.M.D.user.01.00.C101.202303080018
【验证结果】
1、正常开机，重启30次，正常显示，亮灭屏，亮度调节正常
2、异常开机（总共重复步骤5次进入recovery模式）
删除/persist/key和/metadata/vold/*/key后，重启设备进入recovery模式，lcd呈黑屏状态，没有显示
#10 Updated by CDTS_Test 吴诗雨 over 2 years ago
- Status changed from VERIFIED to CLOSED
