Bug #117111
测试 Test-ST #114575: V5.0功能测试票
测试 Test-ST #114577: Launcher/SystemUI
【AF】【EVT】【设置】【VC1】显示-操作模式页面选择右手模式和左手模式的图片和字体大小位置与ui图有差距
| Status: | CLOSED | Start date: | 2023-03-23 | |
|---|---|---|---|---|
| Priority: | Normal | Due date: | ||
| Assignee: | CDTS_Test 吴诗雨 | % Done: | 100% | |
| Category: | CD-FW | |||
| Target version: | - | |||
| Need_Info: | -- | Found Version: | FlatBuild_HH_MCE_FSE.M.R.user.01.00.0085.C101(X101) | |
| Resolution: | FIXED | Degrated: | No | |
| Severity: | Normal | Verified Version: | ||
| Reproducibility: | Every time | Fixed Version: | 2023-03-24 | |
| Test Type: | ST | Root cause: | 对齐方式与设计协调不一致导致。 |
Description
【前提条件】
1、设备正常启动
【测试步骤】
1、进入设置
2、点击显示
3、点击操作模式
4、选择左手模式，对比ui图
5、选择右手模式，对比ui图
【预期结果】
4、左手模式与ui图相符合
5、右手模式与ui图相符合
【实际结果】

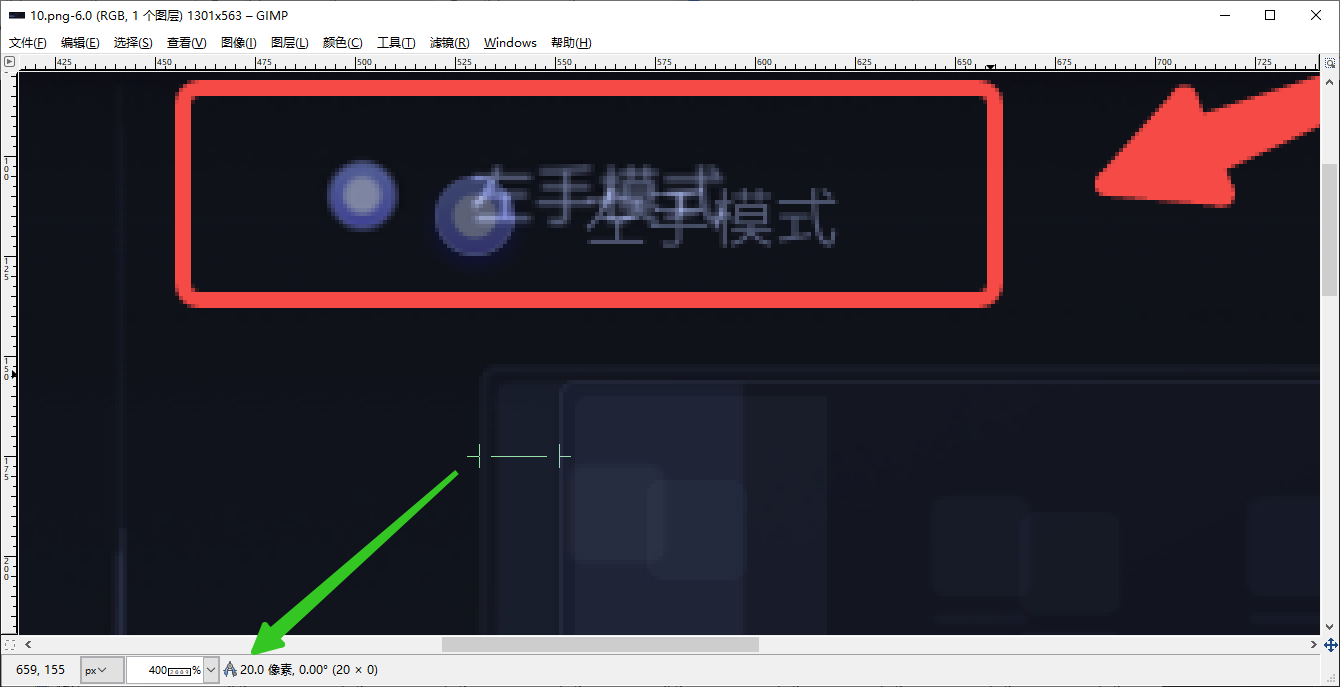

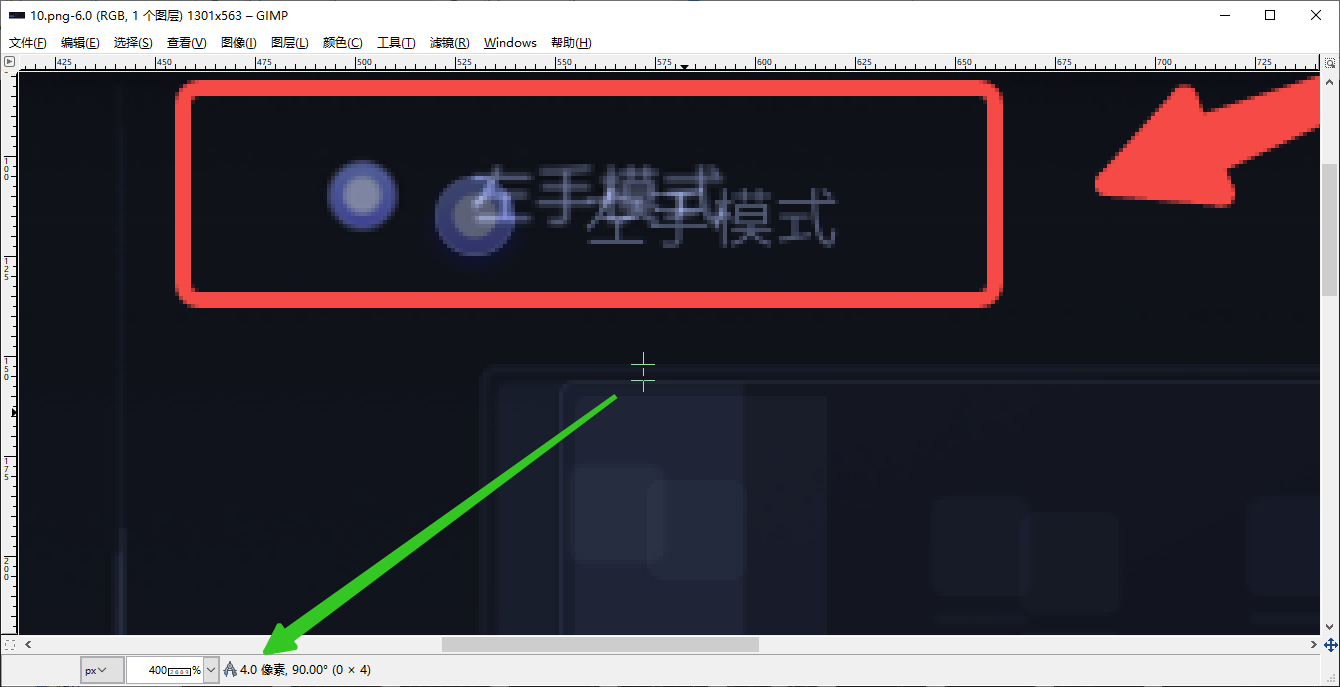

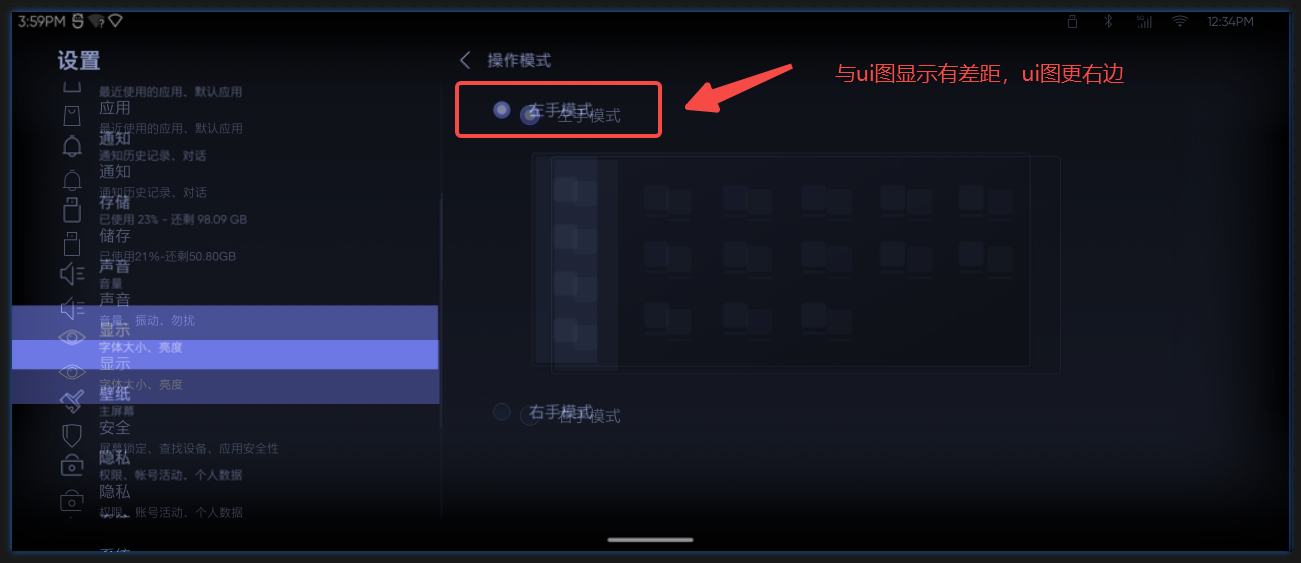

4、左手模式与ui图有差距，图片和字体大小位置与ui图有差距

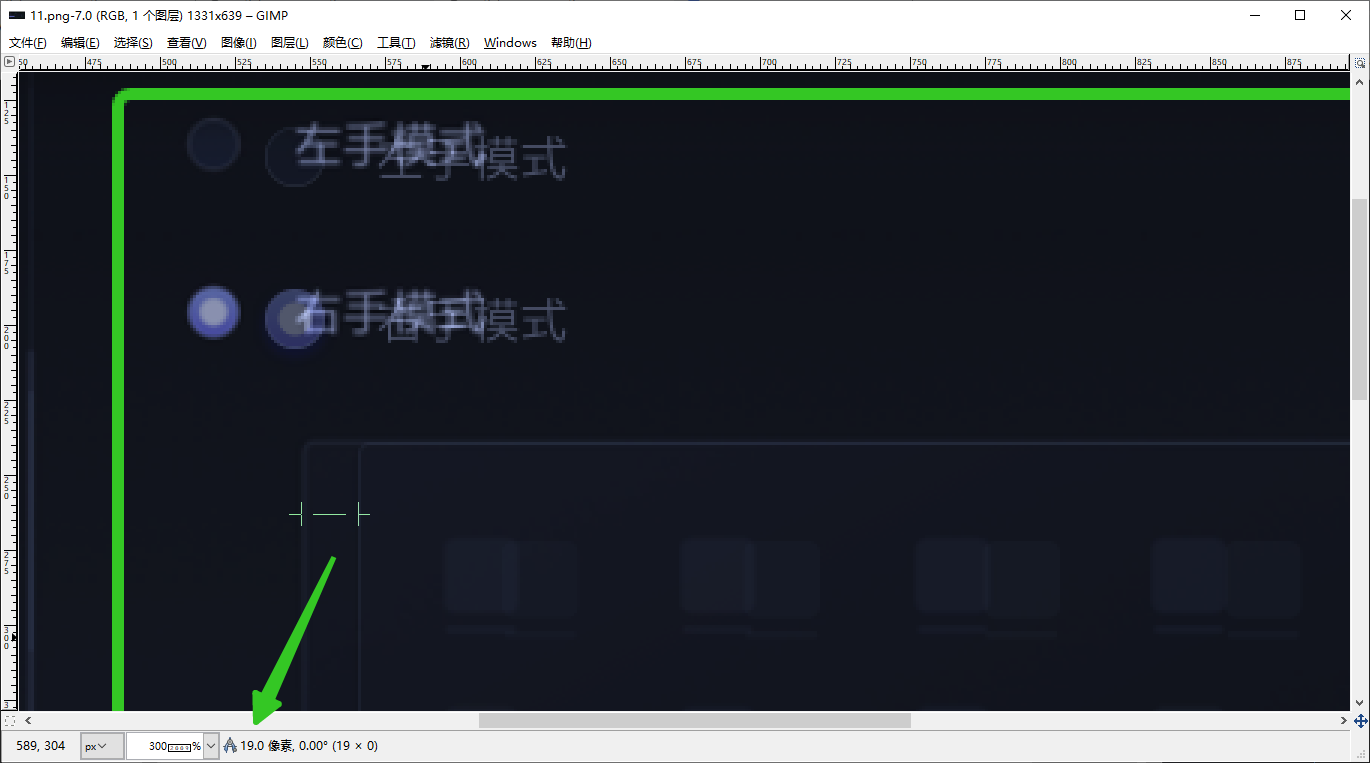

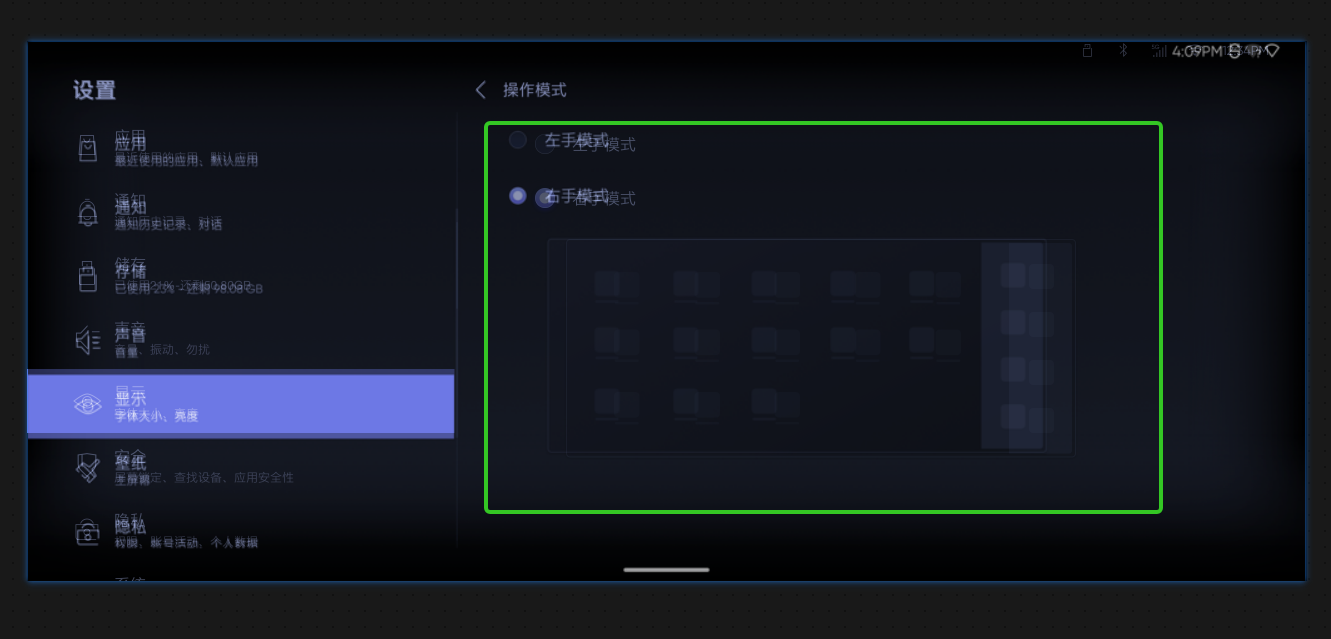

5、右手模式与ui图有差距，图片和字体大小位置与ui图有差距
【复现率】
3/3
History
#1 Updated by CD FW-廖涛 over 2 years ago
- Status changed from New to RESOLVED
- Assignee changed from CD FW-廖涛 to CDTS_Test 吴诗雨
- % Done changed from 0 to 100
- Resolution changed from -- to FIXED
- Degrated changed from -- to No
- Fixed Version set to 2023-03-24
- Root cause set to 对齐方式与设计协调不一致导致。
■ Current conclusion
已处理，代码已入库。
■ My analysis
VX1 与 VC1 对齐方式与设计协调不一致导致。最终对齐方式保持与 VX1 一样，验证时请用最新的设计稿。
■ Next action
测试验证。
#2 Updated by IoT scm over 2 years ago
Gerrit Merge Information：
| ID | Project | Branch | Uploader |
| 189695 | general/platform/packages/apps/Settings | Pre_figure_turbox-c2130c-la1.1-qssi12-dev | tao.liao@thundersoft.com |
| AF:Settings: Adapter operation mode preview view left margin. TC-RID: 1201-0201813 IssueID: TS-R-BUG-117111 Change-Id: Ieb5895e05b046f22ca6b08e65ee5a249cc04e031 |
|||
#3 Updated by CDTS_Test 吴诗雨 over 2 years ago
- Status changed from RESOLVED to VERIFIED
[验证版本]0328release版本
【验证情况】显示-操作模式页面选择右手模式和左手模式的图片和字体大小位置与ui图相同
#4 Updated by CDTS_Test 吴诗雨 over 2 years ago
- Status changed from VERIFIED to CLOSED
