Bug #117151

测试 Test-ST #114575: V5.0功能测试票

测试 Test-ST #114577: Launcher/SystemUI

【AF】【EVT】【小窗模式】【VC1&VX1】小窗顶部导航条及相关按钮尺寸与UI图不符

Added by CD TEST-方永红 over 2 years ago. Updated about 2 years ago.

Status:CLOSEDStart date:2023-03-24
Priority:NormalDue date:2023-03-31
Assignee:CD TEST-方永红% Done:

100%

Category:窗口定制
Target version:-
Need_Info:-- Found Version:FlatBuild_HH_MCE_FSE.M.D.user.01.00.C102(X102).202303240240
Resolution:FIXED Degrated:--
Severity:Normal Verified Version:FlatBuild_HH_MCE_FSE.M.D.user.01.00.C103(X103).202304210449
Reproducibility:Every time Fixed Version:
Test Type:ST Root cause:按照UI重新调整大小

Description

【前提条件】
1、设备正常启动

【测试步骤】
1、打开一个应用小窗

【预期结果】
1、小窗的相关部件尺寸与UI设计一致

【实际结果】

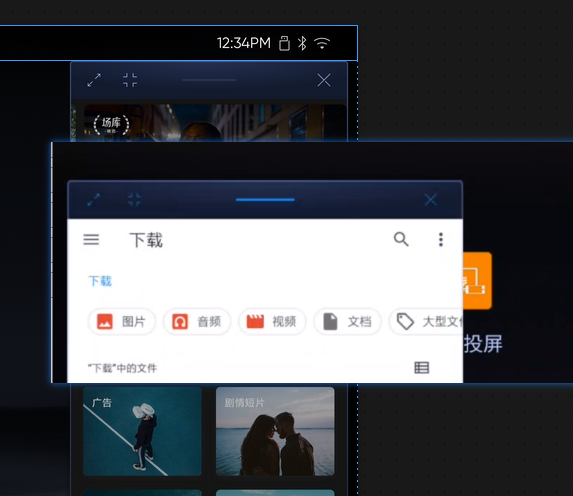

1、小窗顶部导航条及相关按钮尺寸与UI图不符
且文件小窗的顶部导航条的所有按钮的颜色与UI图有明显差异


1537

History

#1 Updated by CD TEST-方永红 over 2 years ago

  • Category changed from CD-FW to 窗口定制

#2 Updated by CD FW-鲁凯峰 over 2 years ago

  • Due date set to 2023-03-31

#3 Updated by CD FW-鲁凯峰 over 2 years ago

重新调整VC1的CaptionUI问题

#4 Updated by IoT scm over 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
191117 general/platform/packages/apps/DocumentsUI Pre_figure_turbox-c2130c-la1.1-qssi12-dev
FW:DocumentsUI:update colors
TC-RID: 1201-0300801
IssueID: TS-R-BUG-117151
Change-Id: I7fb8db01ea60fe0ce9037d087415b267c96383d5

#5 Updated by IoT scm over 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
191015 general/platform/frameworks/base Pre_figure_turbox-c2130c-la1.1-qssi12-dev
AF:MultiWindow: update ui layout
TC-RID: 1201-0204601
IssueID: TS-R-BUG-117151
Change-Id: I799b8dc720374b6ea0636221b13774c27157bca5

#6 Updated by CD FW-鲁凯峰 over 2 years ago

  • Status changed from New to RESOLVED
  • Assignee changed from CD FW-鲁凯峰 to CD TEST-方永红
  • Resolution changed from -- to FIXED
  • Root cause set to 按照UI重新调整大小

#7 Updated by CD TEST-方永红 over 2 years ago

  • Status changed from RESOLVED to VERIFY_FAILED
  • Assignee changed from CD TEST-方永红 to CD FW-鲁凯峰

4.4
小窗顶部导航条及相关按钮尺寸与UI仍有差距
验证失败

#8 Updated by CD FW 曹覃刚 about 2 years ago

  • Assignee changed from CD FW-鲁凯峰 to CD FW 曹覃刚

#9 Updated by CD FW-鲁凯峰 about 2 years ago

■ Current conclusion
已经重新修改

■ My analysis
由于小窗的内容要缩放,所以在进行窗口大小计算的时候,也把里面的控件进行了缩放,所以要符合UI设计图,就是除以缩放比列,这样计算出来的大小才符合UI设计

■ Submit URL
https://dev.thundercomm.com/gerrit/c/general/platform/frameworks/base/+/195002

#10 Updated by IoT scm about 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
195002 general/platform/frameworks/base Pre_figure_turbox-c2130c-la1.1-qssi12-dev
AF:MultiWindow: update ui layout
TC-RID: 1201-0204601
IssueID: TS-R-BUG-117151
Change-Id: I36a71034cb2730e23a08d2d39e54f201727937e7

#11 Updated by CD FW-鲁凯峰 about 2 years ago

  • Status changed from VERIFY_FAILED to RESOLVED
  • Assignee changed from CD FW 曹覃刚 to CD TEST-方永红

#12 Updated by CD TEST-方永红 about 2 years ago

  • Status changed from RESOLVED to VERIFIED
  • % Done changed from 0 to 100
  • Verified Version set to FlatBuild_HH_MCE_FSE.M.D.user.01.00.C103(X103).202304210449

4.21
验证通过

#13 Updated by CD TEST-方永红 about 2 years ago

  • Status changed from VERIFIED to CLOSED
