Bug #117243: 【AF】【EVT3】【桌面】【VC1】VC1的dock栏中的应用图标位置整体上移 - Figure - 中科创达

Bug #117243

测试 Test-IT #110867: V1.0测试功能汇总

测试 Test-IT #110895: AF-V1.0功能测试-桌面

【AF】【EVT3】【桌面】【VC1】VC1的dock栏中的应用图标位置整体上移

Added by CD TEST-方永红 over 2 years ago. Updated about 2 years ago.

Status:

CLOSED

Start date:

2023-03-30

Priority:

Normal

Due date:

2023-04-10

Assignee:

CD TEST-方永红

% Done:

100%

Category:

CD-APP

Target version:

Need_Info:

Found Version:

FlatBuild_HH_MCE_FSE.M.R.user.01.00.0086.C102(X102)

Resolution:

FIXED

Degrated:

Severity:

Normal

Verified Version:

FlatBuild_HH_MCE_FSE.M.D.user.01.00.C103(X103).202304210449

Reproducibility:

Every time

Fixed Version:

2023-04-15

Test Type:

Root cause:

编码问题

Description

【前置条件】
设备刚恢复出厂设置
且禁用主屏音频控制后重启

【测试步骤】（出现该现象时所做操作，非必现步骤）
1、进入任务管理器
2、点击小窗列表中的搜狗输入法

【预期结果】
2、dock栏应用显示正常

【测试结果】

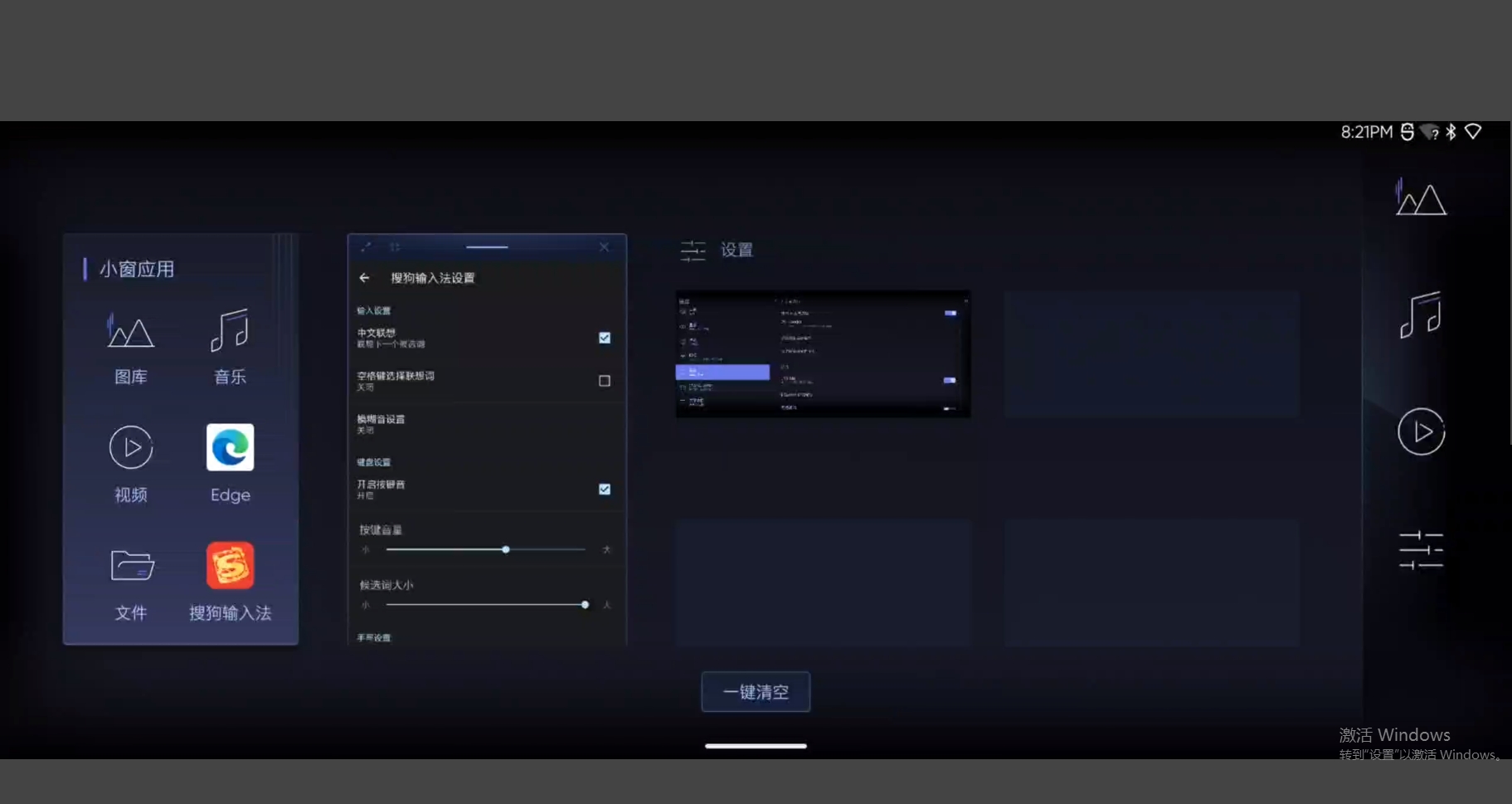

2、VC1的dock栏中的应用图标位置整体上移

1014.txt (3.93 MB) CD TEST-方永红, 2023-03-30 10:29


History

#1 Updated by CD APP-王营 over 2 years ago

Status changed from New to ASSIGNED
Assignee changed from CD APP-王营 to CD APP-王宏

#2 Updated by CD APP-王营 over 2 years ago

Due date set to 2023-04-10

#3 Updated by CD APP-王宏 about 2 years ago

Status changed from ASSIGNED to NEED_INFO
Assignee changed from CD APP-王宏 to CD TEST-方永红

■ Current conclusion
分析中
■ My analysis
加日志复测
■ Next action
等待jinkens编译结束后打包复测，复现后抓取日志继续分析
http://192.168.87.26:8080/view/Projects/view/Project-IOT/job/VerifyBuild_for_IOT_6490/308/

#4 Updated by CD TEST-方永红 about 2 years ago

Status changed from NEED_INFO to ASSIGNED
Assignee changed from CD TEST-方永红 to CD APP-王宏

#5 Updated by CD APP-王宏 about 2 years ago

% Done changed from 0 to 50

■ Current conclusion
已提交
■ My analysis
根据代码分析

@Override
    public void setInsets(Rect insets) {
        FrameLayout.LayoutParams lp = (FrameLayout.LayoutParams) getLayoutParams();
        DeviceProfile grid = mActivity.getDeviceProfile();

if (grid.isVerticalBarLayout()) {
            mQsb.setVisibility(View.GONE);

if (grid.isSeascape()) {
                lp.gravity = Gravity.LEFT | Gravity.CENTER_VERTICAL;
                lp.width = grid.hotseatBarSizePx + insets.left;
                lp.leftMargin = grid.hotseatMarginLeftOrRight;
            } else {
                lp.gravity = Gravity.RIGHT | Gravity.CENTER_VERTICAL;
                lp.width = grid.hotseatBarSizePx + insets.right;
                lp.rightMargin = grid.hotseatMarginLeftOrRight;
            }
            lp.topMargin =  grid.hotseatMarginTopOrBottom;
            lp.bottomMargin = grid.hotseatMarginTopOrBottom;
        } else {
            mQsb.setVisibility(View.VISIBLE);
            lp.gravity = Gravity.BOTTOM;
            lp.width = ViewGroup.LayoutParams.MATCH_PARENT;
            lp.height = (grid.isTaskbarPresent
                    ? grid.workspacePadding.bottom
                    : grid.hotseatBarSizePx)
                    + (grid.isTaskbarPresent ? grid.taskbarSize : insets.bottom);
        }
设置控件位置只在 setInsets()方法内，由于现象显示topMargin大概为0，所以推断此方法未执行，因此直接在xml布局中设置marginTop，确保一定会设置上

■Submit URL
https://dev.thundercomm.com/gerrit/c/general/platform/packages/apps/Launcher3/+/192087

#6 Updated by IoT scm about 2 years ago

Gerrit Merge Information：

ID	Project	Branch	Uploader
192087	general/platform/packages/apps/Launcher3	Pre_figure_turbox-c2130c-la1.1-qssi12-dev	hong.wang_a@thundersoft.com
AF:Launcher:fixed hotseat display exception TC-RID: 0301-0205301 IssueID: TS-R-BUG-117243 Change-Id: I2d36c7bf212bfdf3c56940f3e7fbe205fe394244
