Bug #111348: 【BSP】【EVT】【系统升级】【单板必现】QFIL刷机结束后，不能自动开机 - Figure - 中科创达

Bug #111348

测试 Test-IT #110867: V1.0测试功能汇总

测试 Test-IT #110879: BSP-BVT测试-QFIL刷机

【BSP】【EVT】【系统升级】【单板必现】QFIL刷机结束后，不能自动开机

Added by SZTS_TEST 邹涛 almost 3 years ago. Updated over 2 years ago.

Status:

CLOSED

Start date:

2022-08-18

Priority:

High

Due date:

Assignee:

SZTS_TEST 邹涛

% Done:

60%

Category:

SYSTEM

Target version:

VX1_MCE_FSE_V3.0_update_20221115

Need_Info:

Found Version:

0.0.0.20220818_alpha_004

Resolution:

Degrated:

Severity:

Major

Verified Version:

Reproducibility:

Every time

Fixed Version:

Test Type:

Bring Up Test

Root cause:

Description

前置条件：
1、DUT各模块功能正常且处于9008状态

操作步骤：
1、使用QFIL刷机工具烧录0817刷机包
2、刷机结束后查看板子是否自动开机

实际结果：
1、QFIL刷机结束后，板子不会自动开机；需要手动插拔下DC才能启动

预期结果：
1、刷机结束后，板子可以正常开机

Serial-COM119_20220818133045_QFIL刷机不能自动起来需要手动断电.log (716 KB) SZTS_TEST 邹涛, 2022-08-18 15:56

Serial-COM119_20220818151223_shuaji 起不来.log (1.02 MB) SZTS_TEST 邹涛, 2022-08-18 15:56

xbl.elf (3.32 MB) CD SYSTEM-赵正军, 2022-09-15 12:58

xbl_config.elf (96.1 KB) CD SYSTEM-赵正军, 2022-09-15 12:58

Serial-COM119_20220916110305.log (10.3 KB) SZTS_TEST 邹涛, 2022-09-16 11:18

Serial-COM119_20220916151802.log (1.16 MB) SZTS_TEST 邹涛, 2022-09-16 15:54

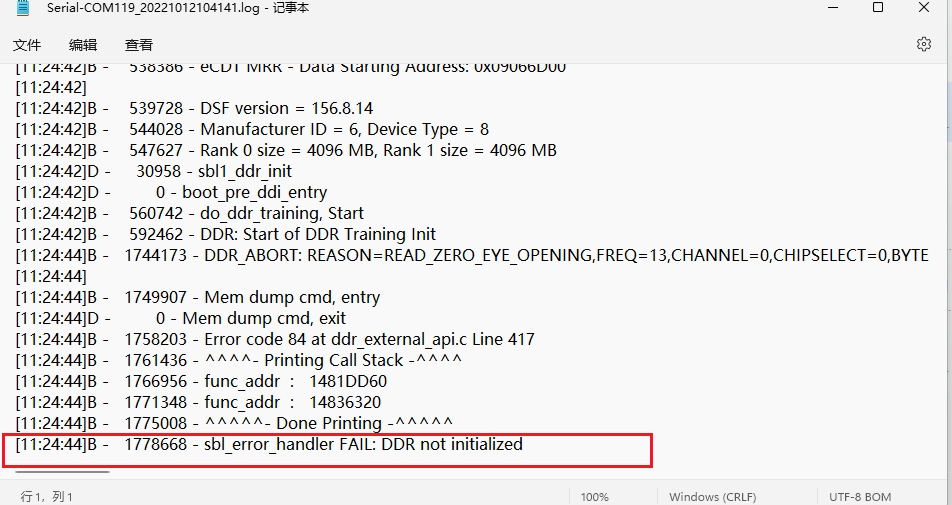

Serial-COM119_20221012104141.log (2.1 MB) SZTS_TEST 邹涛, 2022-10-12 11:32


History

#1 Updated by CD SYSTEM-赵正军 almost 3 years ago

Assignee changed from SZ 系统-张丽果 to CD SYSTEM-赵正军

从现有log看 DDR在sbl阶段没有初始化成功
目前本地完整编译Figure代码，qfile刷机，设备也无法启动。log也是提示DDR 未初始化成功
但是xbl替换成服务器版本中的xbl.elf xbl_config.elf则能正常启动，两个现象可能是同一个原因引起，需再进一步分析

#2 Updated by CD SYSTEM-赵正军 almost 3 years ago

% Done changed from 0 to 20

#3 Updated by CD SYSTEM-赵正军 almost 3 years ago

目前ddr的初始化失败都在xbl阶段,需要先确认XBL是否可用SV1的xbl代码

[14:12:06]B -  16737607 - Frequency = 1805 MHz
[14:12:06]B -  16737637 - DDR: End of DDR Training Init
[14:12:06]D -  16194981 - do_ddr_training, Delta
[14:12:06]D -       885 - sbl1_save_ddr_training_data
[14:12:06]D -  16201875 - sbl1_do_ddr_training
[14:12:06]D -         0 - sbl1_hand_control_to_devprog_ddr
[14:12:06]B -  16765423 - Mem dump cmd, entry
[14:12:06]D -         0 - Mem dump cmd, exit
[14:12:06]B -  16773200 - Error code 84 at ddr_external_api.c Line 417
[14:12:06]B -  16776403 - ^^^^- Printing Call Stack -^^^^
[14:12:06]B -  16781954 - func_addr  :   1481DD60
[14:12:06]B -  16786315 - func_addr  :   148295A4
[14:12:06]B -  16789975 - func_addr  :   14823D50
[14:12:06]B -  16793666 - func_addr  :   14823E0C
[14:12:06]B -  16797326 - func_addr  :   14824358
[14:12:06]B -  16800986 - func_addr  :   1481584C
[14:12:06]B -  16804646 - ^^^^^- Done Printing -^^^^^
[14:12:06]B -  16808306 - sbl_error_handler FAIL: DDR not initialized

#4 Updated by CD TPM-申艳艳 almost 3 years ago

Category changed from BSP to SYSTEM

#5 Updated by CD SYSTEM-赵正军 almost 3 years ago

目前考虑DDR频率偏高导致DDR异常,当前方案调整频率到 1666 MHz,还请用出现问题的硬件以及出现问题的软件版本(替换附件的xbl.elf/xbl_config.elf文件刷机)验证.
替换路径:
DailyBuild_path/ufs/xbl.elf
DailyBuild_path/ufs/xbl_config.elf

同时需要确认xbl代码,因为特殊原因目前xbl使用的SV1项目的xbl代码, 需要确认下当前使用的ddr是否有在SV1基线的PVL验证列表里面

期望启动日志有如下关键log
*B - 16779819 - Frequency = 1666 MHz *

B -    552965 - do_ddr_training, Start
B -    584685 - DDR: LIB lp5 Start of DDR Training Init
B -  16610727 - TRAINING TIME PER FUNCTION: GROUP=PLL Pre-Cal,NAME=PLL Precal,CALL_COUNT=7,TOTAL_TIME(us)=84853

B -  16616491 - TRAINING TIME PER FUNCTION: GROUP=DCC Monitor,NAME=WCK DCC Monitor,CALL_COUNT=4,TOTAL_TIME(us)=465919

B -  16626678 - TRAINING TIME PER FUNCTION: GROUP=DCC Monitor2,NAME=DRAM DCC,CALL_COUNT=1,TOTAL_TIME(us)=76219

B -  16637384 - TRAINING TIME PER FUNCTION: GROUP=DCC Monitor3,NAME=RDT4 DCC Monitor,CALL_COUNT=4,TOTAL_TIME(us)=410042

B -  16647479 - TRAINING TIME PER FUNCTION: GROUP=RCW,NAME=RCW CDC/Full Cycle Sweep,CALL_COUNT=1,TOTAL_TIME(us)=81160

B -  16658368 - TRAINING TIME PER FUNCTION: GROUP=LowSpeed DIT,NAME=tWCK2DQI (DIT),CALL_COUNT=1,TOTAL_TIME(us)=1708

B -  16669073 - TRAINING TIME PER FUNCTION: GROUP=Read,NAME=DQ PBIT,CALL_COUNT=1,TOTAL_TIME(us)=244397

B -  16679596 - TRAINING TIME PER FUNCTION: GROUP=Read,NAME=Global Vref CDC-2D,CALL_COUNT=2,TOTAL_TIME(us)=2129175

B -  16688990 - TRAINING TIME PER FUNCTION: GROUP=Read,NAME=Local Vref CDC-2D,CALL_COUNT=1,TOTAL_TIME(us)=3818295

B -  16699421 - TRAINING TIME PER FUNCTION: GROUP=Read,NAME=RDQS CDC CF,CALL_COUNT=4,TOTAL_TIME(us)=113888

B -  16709821 - TRAINING TIME PER FUNCTION: GROUP=HighSpeed DIT,NAME=DIT - Periodic Training,CALL_COUNT=4,TOTAL_TIME(us)=4851

B -  16719520 - TRAINING TIME PER FUNCTION: GROUP=Write,NAME=DRAM_LP5_WR_Vref,CALL_COUNT=2,TOTAL_TIME(us)=1747925

B -  16730958 - TRAINING TIME PER FUNCTION: GROUP=Write,NAME=LP5_WR_CPY_DVref_Upr_FSP,CALL_COUNT=6,TOTAL_TIME(us)=854

B -  16741328 - TRAINING TIME PER FUNCTION: GROUP=Write,NAME=PHY_Trn_LP5_WR_DCC_CDC,CALL_COUNT=5,TOTAL_TIME(us)=5618130

B -  16752033 - TRAINING TIME PER FUNCTION: GROUP=Write,NAME=Low Freq DQ CDC perbit,CALL_COUNT=4,TOTAL_TIME(us)=1213169

B -  16762861 - TRAINING TIME TOTAL(us): 16010585

B -  16779819 - Frequency = 1666 MHz
B -  16779849 - DDR: End of DDR Training Init

#6 Updated by CD SYSTEM-赵正军 almost 3 years ago

Status changed from New to ASSIGNED
Assignee changed from CD SYSTEM-赵正军 to SZTS_TEST 邹涛
% Done changed from 20 to 60

#7 Updated by CD SYSTEM-赵正军 almost 3 years ago

File xbl.elf added
File xbl_config.elf added

#8 Updated by CDTS-TEST 周婷 almost 3 years ago

Target version set to VX1_MCE_FSE_V1.0_update_20220925

#9 Updated by SZTS_TEST 邹涛 almost 3 years ago

File Serial-COM119_20220916110305.log added

使用修改过硬件gpio的板子
0818号DB解压后替换成上面的xbl和config文件
使用qfil刷机，刷机结束后查看能板子不能正常启动

#10 Updated by SZTS_TEST 邹涛 almost 3 years ago

File Serial-COM119_20220916151802.log added

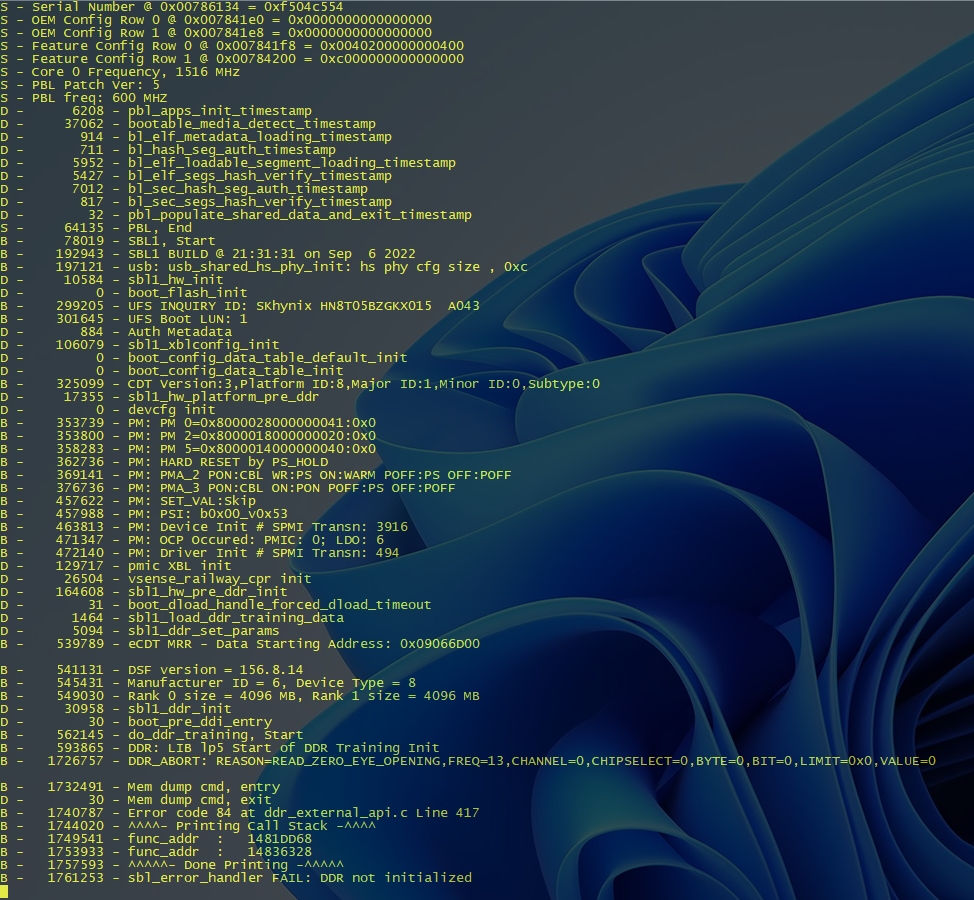

File 中科创达软件股份有限公司20220916-155241.jpg added

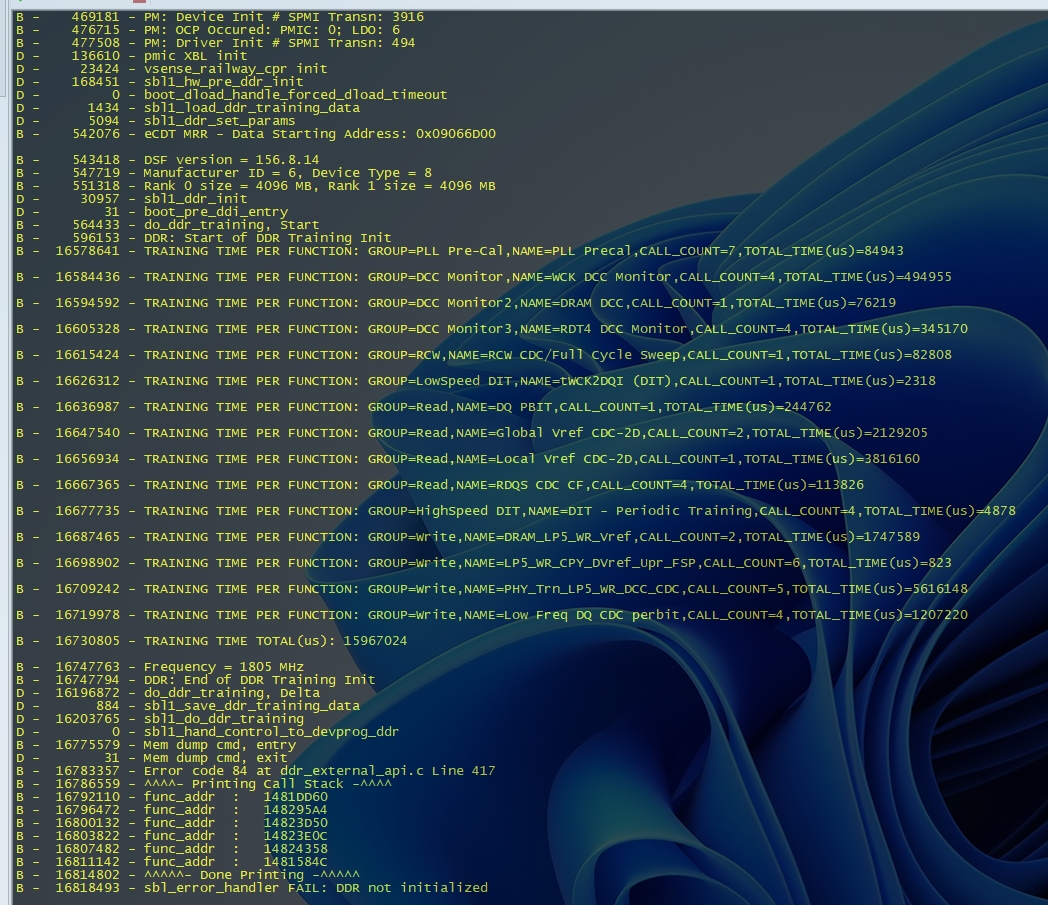

File 中科创达软件股份有限公司20220916-155308.jpg added

0916号DB版本验证，使用qfil刷机，小概率出现刷机结束后设备起不来
0916号DB版本替换掉xbl和config文件后，使用qfil刷机，小概率出现刷机结束后设备起不来

因此替换xbl的修改方式未修复该问题，请研发继续跟进分析解决；谢谢

#11 Updated by SZTS_TEST 邹涛 almost 3 years ago

Assignee changed from SZTS_TEST 邹涛 to CD SYSTEM-赵正军

#12 Updated by 物联网项目组-RD3_CDTS 周飞 almost 3 years ago

Target version changed from VX1_MCE_FSE_V1.0_update_20220925 to VX1_MCE_FSE_V2.0_20220930

#13 Updated by CD SYSTEM-赵正军 almost 3 years ago

Assignee changed from CD SYSTEM-赵正军 to SZTS_TEST 邹涛

因目前硬件有部分改动，同时我这的板子无法复现，还请测试用问题复现高的主板跟踪测试几个版本

#14 Updated by CDTS-TEST 周婷 almost 3 years ago

Severity changed from Critical to Major

优先级放低，不作为0930 必须fix bug 交付

#15 Updated by SZTS_TEST 邹涛 almost 3 years ago

Assignee changed from SZTS_TEST 邹涛 to CD SYSTEM-赵正军
Target version changed from VX1_MCE_FSE_V2.0_20220930 to VX1_MCE_FSE_V2.0_update_20221012
