Bug #111406
测试 Test-IT #110867: V1.0测试功能汇总
测试 Test-IT #110895: AF-V1.0功能测试-桌面
【AF】【EVT】【桌面】蓝牙开关打开状态下，桌面状态栏没有蓝牙图标
| Status: | CLOSED | Start date: | 2022-08-22 | |
|---|---|---|---|---|
| Priority: | High | Due date: | 2022-08-30 | |
| Assignee: | CD Test赵飞 | % Done: | 100% | |
| Category: | LC | |||
| Target version: | - | |||
| Need_Info: | -- | Found Version: | FlatBuild_VX1_MCE_xx.xx_FSE.D.userdebug.0.0.0.20220822.alpha | |
| Resolution: | -- | Degrated: | -- | |
| Severity: | Major | Verified Version: | 这个行为是aosp的原生行为 | |
| Reproducibility: | Every time | Fixed Version: | ||
| Test Type: | IT | Root cause: |
Description
测试版本：FlatBuild_VX1_MCE_xx.xx_FSE.D.userdebug.0.0.0.20220822.alpha
【前提条件】
1、设备已开机
【测试步骤】
1、进入设置 - 已连接设备 - 连接偏好设置 - 蓝牙
2、打开蓝牙开关
3、查看状态栏显示
【预期结果】
3、状态栏显示蓝牙图标（未连接状态）
【实际结果】
1、状态栏无蓝牙图标显示
【复现率】
5/5
【Log】

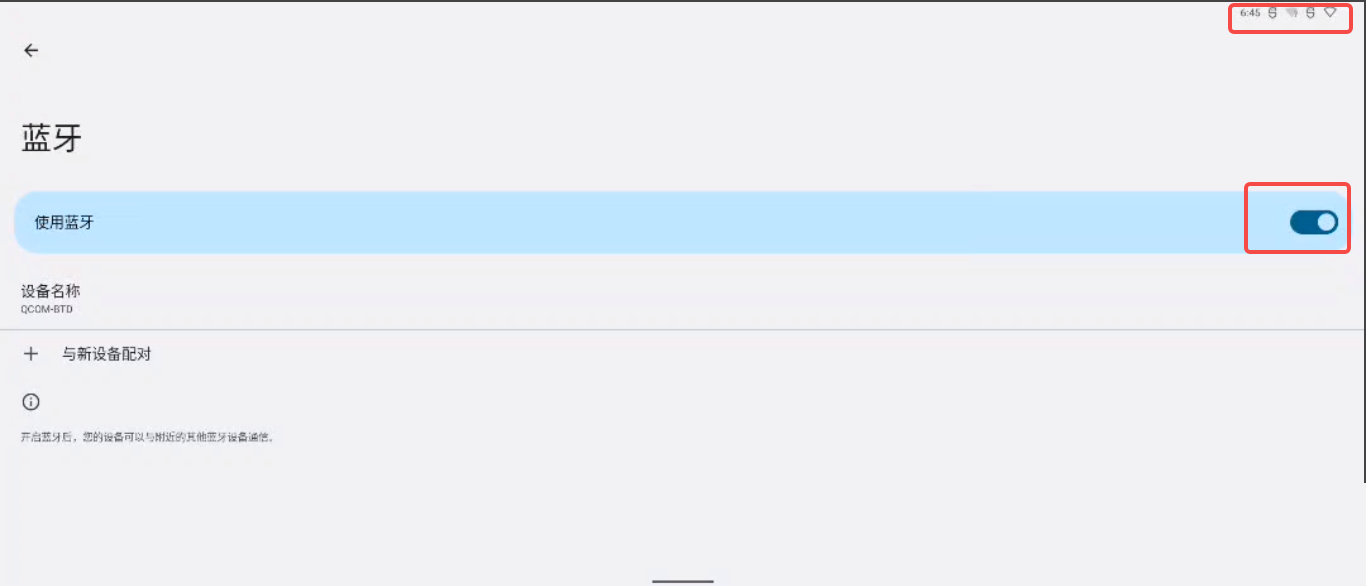

截图见附件
History
#1 Updated by CD FW-王伟 almost 3 years ago
- Assignee changed from CD FW-王伟 to CD LC-徐玺栋
#2 Updated by CD LC-徐玺栋 almost 3 years ago
- Status changed from New to ASSIGNED
hi，
这个行为是aosp原生行为，系统默认是蓝牙链接后才在状态栏显示蓝牙图标，需要改成打开蓝牙就在状态栏显示蓝牙图标吗？
#3 Updated by CD LC-徐玺栋 almost 3 years ago
- Assignee changed from CD LC-徐玺栋 to CD FW-王伟
#4 Updated by CD LC-徐玺栋 almost 3 years ago
- Assignee changed from CD FW-王伟 to CD LC-徐玺栋
#5 Updated by CD Test赵飞 almost 3 years ago
- Due date set to 2022-08-30
#6 Updated by CD LC-徐玺栋 almost 3 years ago
当前进展：
按照想法在代码里作了修改，编译完调试设备发现系统黑屏，正在调查原因；
下一步计划：
对问题已经有了初步的猜测，正在测试中，预计最迟明天解决。
#7 Updated by CD LC-徐玺栋 almost 3 years ago
当前进展：
目前编译模块push进设备，导致黑屏问题已解决。目前打开蓝牙，图标就会一直展示已连接状态的图标，我认为会影响用户判断蓝牙是否为已连接状态，正在尝试修改；
下一步计划：
尝试修改图标问题。
#8 Updated by CD LC-徐玺栋 almost 3 years ago
- Status changed from ASSIGNED to RESOLVED
- Verified Version set to 这个行为是aosp的原生行为
当前进展：
当前问题已解决，本地验证没问题；
gerrit：https://dev.thundercomm.com/gerrit/c/general/platform/frameworks/base/+/144725
下一步计划：
请测试人员在8.26的DB进行复测；
#9 Updated by CD LC-徐玺栋 almost 3 years ago
- Assignee changed from CD LC-徐玺栋 to CD Test赵飞
#10 Updated by CD Test赵飞 almost 3 years ago
- Status changed from RESOLVED to VERIFIED
- % Done changed from 0 to 80
验证版本：FlatBuild_VX1_MCE_xx.xx_FSE.D.userdebug.0.0.0.20220826.alpha
验证结果：PASS
打开蓝牙开关后，在状态栏显示蓝牙图标（未连接状态）
#11 Updated by CD Test赵飞 almost 3 years ago
- Status changed from VERIFIED to CLOSED
- % Done changed from 80 to 100
#12 Updated by CD TPM-申艳艳 almost 3 years ago
- Category set to LC
#13 Updated by CD FW-王伟 over 2 years ago
| ID | Project | Branch | Uploader |
| 144725 | general/platform/frameworks/base | Pre_figure_turbox-c2130c-la1.1-qssi12-dev | xidong.xu@thundersoft.com |
| LC:BT:Turn on bluetooth display the icon in the status bar This is aosp native behavior; Modified the logic of "updateBluetooth()" TC-RID: 1201-0400120 IssueID: TS-R-DF-111406 Change-Id: Ie4d7de0f3b236f3781c652349858ecbf66afa475 |
|||
