Bug #112704
测试 Test-IT #110961: V2.0功能测试
测试 Test-IT #111047: AF-V2.0-小窗模式
【AF】【EVT】【小窗模式】小窗大小与VC1及VX1的屏幕不适配（实屏幕和单独投屏都有此问题）
| Status: | CLOSED | Start date: | 2022-10-19 | |
|---|---|---|---|---|
| Priority: | Normal | Due date: | ||
| Assignee: | CD TEST-方永红 | % Done: | 100% | |
| Category: | 窗口定制 | |||
| Target version: | VX1_MCE_FSE_V3.0_20221030 | |||
| Need_Info: | -- | Found Version: | FlatBuild_VX1_MCE_xx.xx_FSE.D.userdebug.0.0.0.20221019.alpha | |
| Resolution: | FIXED | Degrated: | -- | |
| Severity: | Normal | Verified Version: | ||
| Reproducibility: | Every time | Fixed Version: | 2022-10-20 | |
| Test Type: | IT | Root cause: | 缩放比计算错误，导致视图效果被压缩。 |
Description
【前提条件】
1、设备已开机
【测试步骤】
1、长按时钟应用、进入小窗模式
2、观察页面显示
【预期结果】
2、页面合理
【实际结果】

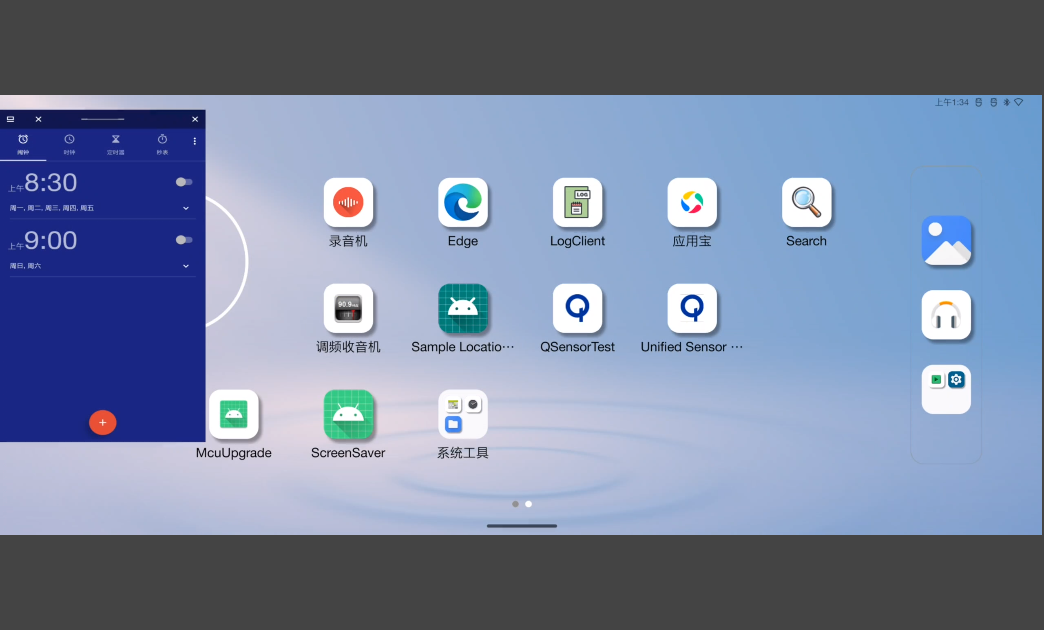

2、小窗大小与VC1的屏幕不适配，有被压缩的感觉
【复现率】
100%
【Log】
Log见附件
History
#1 Updated by DL FW-张挽强 over 2 years ago
- Status changed from New to ASSIGNED
- Assignee changed from DL FW-张挽强 to CD TEST-方永红
Window #11 Window{f3594ad u0 com.android.deskclock/com.android.deskclock.DeskClock}:
mDisplayId=0 rootTaskId=1865 mSession=Session{a8b601 10178:u0a10068} mClient=android.os.BinderProxy@31b1dc4
mOwnerUid=10068 showForAllUsers=false package=com.android.deskclock appop=NONE
mAttrs={(0,0)(fillxfill) sim={adjust=pan forwardNavigation} ty=BASE_APPLICATION wanim=0x10302fe
fl=LAYOUT_IN_SCREEN LAYOUT_INSET_DECOR SPLIT_TOUCH HARDWARE_ACCELERATED DRAWS_SYSTEM_BAR_BACKGROUNDS
pfl=NO_MOVE_ANIMATION FORCE_DRAW_STATUS_BAR_BACKGROUND USE_BLAST FIT_INSETS_CONTROLLED
vsysui=LAYOUT_STABLE LAYOUT_HIDE_NAVIGATION LAYOUT_FULLSCREEN
bhv=DEFAULT
fitSides=}
Requested w=630 h=1120 mLayoutSeq=315
mBaseLayer=21000 mSubLayer=0 mToken=ActivityRecord{6289818 u0 com.android.deskclock/.DeskClock t1865}
mActivityRecord=ActivityRecord{6289818 u0 com.android.deskclock/.DeskClock t1865}
mAppDied=false drawnStateEvaluated=true mightAffectAllDrawn=true
mViewVisibility=0x0 mHaveFrame=true mObscured=false
mGivenContentInsets=[0,0][0,0] mGivenVisibleInsets=[0,0][0,0]
mFullConfiguration={1.0 ?mcc?mnc [zh_CN] ldltr sw420dp w420dp h746dp 240dpi nrml long hdr port -touch -keyb/v/h -nav/h winConfig={ mBounds=Rect(0, 36 - 630, 1156) mAppBounds=Rect(0, 36 - 630, 1156) mMaxBounds=Rect(0, 0 - 2380, 1020) mWindowingMode=freeform mDisplayWindowingMode=fullscreen mActivityType=standard mAlwaysOnTop=undefined mRotation=ROTATION_0} s.5 fontWeightAdjustment=0}
mLastReportedConfiguration={1.0 ?mcc?mnc [zh_CN] ldltr sw420dp w420dp h746dp 240dpi nrml long hdr port -touch -keyb/v/h -nav/h winConfig={ mBounds=Rect(0, 36 - 630, 1156) mAppBounds=Rect(0, 36 - 630, 1156) mMaxBounds=Rect(0, 0 - 2380, 1020) mWindowingMode=freeform mDisplayWindowingMode=fullscreen mActivityType=standard mAlwaysOnTop=undefined mRotation=ROTATION_0} s.5 fontWeightAdjustment=0}
mHasSurface=true isReadyForDisplay()=true mWindowRemovalAllowed=false
Frames: containing=[0,36][630,1156] parent=[0,36][630,1156] display=[0,36][630,1156]
mFrame=[0,36][630,1156] last=[0,36][630,1156]
surface=[0,0][0,0]
WindowStateAnimator{c82dcfe com.android.deskclock/com.android.deskclock.DeskClock}:
mSurface=Surface(name=com.android.deskclock/com.android.deskclock.DeskClock)/@0xd81ac5f
Surface: shown=true layer=0 alpha=1.0 rect=(0.0,0.0) transform=(1.0, 0.0, 0.0, 1.0)
mDrawState=HAS_DRAWN mLastHidden=false
mEnterAnimationPending=false mSystemDecorRect=[0,0][0,0]
mForceSeamlesslyRotate=false seamlesslyRotate: pending=null finishedFrameNumber=0
mHScale=0.8 mVScale=0.8
isOnScreen=true
isVisible=true
根据window 的dump信息看 缩放比没有问题，之前说这个问题，https://share.thundersoft.com/redmine/issues/112035
跟这个问题是一样的，小窗只能做到等比缩放，如果后续觉得布局不合理，具体布局需要应用自己进行适配
#2 Updated by CD TEST-方永红 over 2 years ago
- Subject changed from 【AF】【EVT】【小窗模式】小窗大小与VC1及VX1的屏幕不适配（实屏幕和单独投屏都有此问题 to 【AF】【EVT】【小窗模式】小窗大小与VC1及VX1的屏幕不适配（实屏幕和单独投屏都有此问题）
- Assignee changed from CD TEST-方永红 to DL FW-张挽强
#3 Updated by DL FW-张挽强 over 2 years ago
- Status changed from ASSIGNED to RESOLVED
- Assignee changed from DL FW-张挽强 to CD TEST-方永红
- Resolution changed from -- to FIXED
- Fixed Version set to 2022-10-20
- Root cause set to 缩放比计算错误，导致视图效果被压缩。
#4 Updated by CD TEST-方永红 over 2 years ago
- Status changed from RESOLVED to VERIFIED
- % Done changed from 0 to 100
10.20日user，显示正常，可以关闭
#5 Updated by CD TEST-方永红 over 2 years ago
- Status changed from VERIFIED to CLOSED
