Bug #112913

测试 Test-IT #111062: V3.0功能测试

测试 Test-IT #111067: AF-V3.0--Launcher/SystemUI-任务管理器

【AF】【EVT】【任务管理器】打开应用小窗，然后关闭，进入多任务管理器，点击该应用的进程卡片，进入全屏模式后使用上划手势退出，应用无法完全退出（具体见视频）

Added by CD TEST-方永红 over 2 years ago. Updated over 2 years ago.

Status:CLOSEDStart date:2022-10-25
Priority:NormalDue date:2022-11-04
Assignee:CD TEST-方永红% Done:

100%

Category:窗口定制
Target version:VX1_MCE_FSE_V3.0_update_20221115
Need_Info:-- Found Version:FlatBuild_VX1_MCE_xx.xx_FSE.R.user.0.0.0.20221025.alpha_0039
Resolution:FIXED Degrated:--
Severity:Normal Verified Version:FlatBuild_HH_VX1_MCE_FSE.M.D.user.01.00.X101.202211160534
Reproducibility:Every time Fixed Version:2022-11-15
Test Type:IT Root cause:在小窗切全平时，没有清除进入recent加入的小窗task信息，导致退出时又恢复了小窗

Description

【前提条件】
1、设备已开机

【测试步骤】
1、进入应用小窗模式（如图库），
2、关闭图库
3、通过上划手势进入多人任务管理器
4、点击图库的进程卡片，进入应用全屏模式
（按理说应该只有小窗进程卡片，但目前是小窗进程卡片和功能卡片都存在，此处两个卡片都会出现问题，不用区分）
5、在应用全屏页面使用快速上划手势

【预期结果】
5、应用退出全屏模式（应用关闭）

【实际结果】

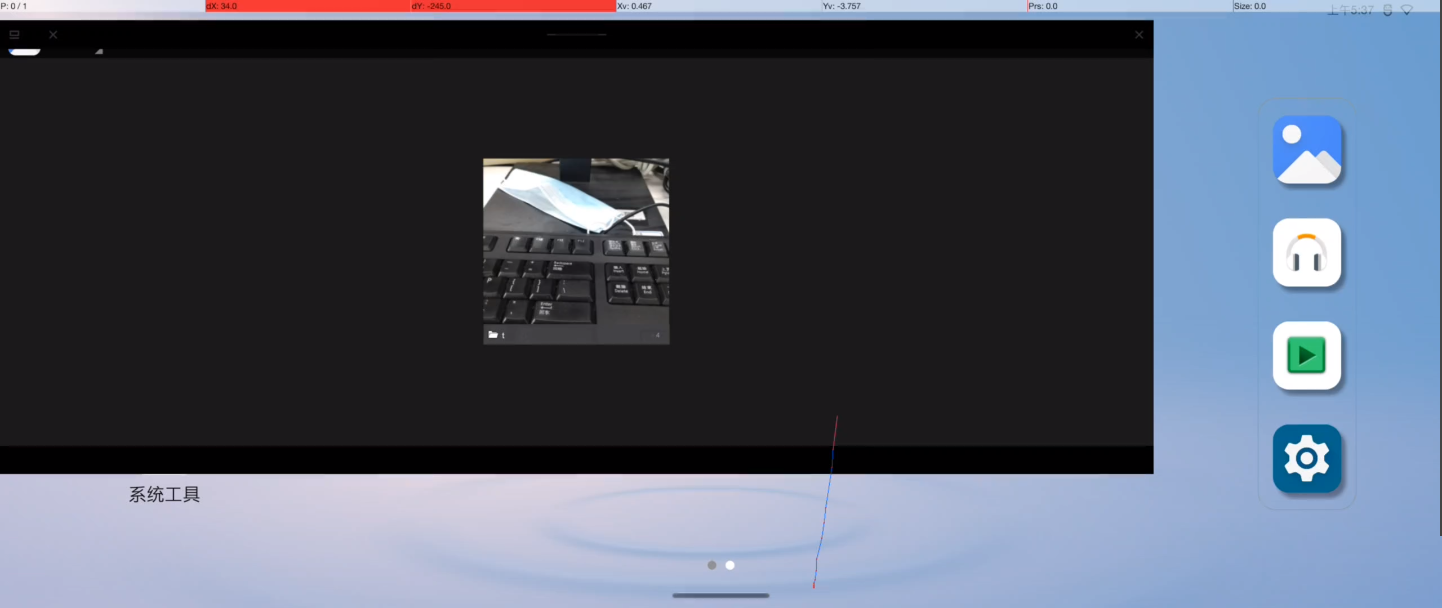

3、应用无法完全退出，卡在中途（见截图），无法对应用内的内容进行操作

Phone-STS40X190122 2022-10-25 15-12-46.mp4 (14.9 MB) CD TEST-方永红, 2022-10-25 15:15

1512.txt Magnifier (3.94 MB) CD TEST-方永红, 2022-10-25 15:15


修改后.mp4 (1.72 MB) CD APP-李德盛, 2022-11-01 10:40

1514

History

#1 Updated by CD TEST-方永红 over 2 years ago

  • Category changed from CD-APP to 窗口定制
  • Assignee changed from CD APP-王营 to DL FW-张挽强

测试内容补充：
刚刚发现不进入任务管理器，直接由小窗模式进全屏模式，然后再向上滑动关闭应用，也会出现该现象
所以可能是由小窗部分的修改引起的

#2 Updated by CDTS-TEST 周婷 over 2 years ago

  • Due date set to 2022-11-04
  • Target version changed from VX1_MCE_FSE_V3.0_20221030 to VX1_MCE_FSE_V3.0_update_20221115

#3 Updated by DL FW-张挽强 over 2 years ago

  • Status changed from New to ASSIGNED

My analysis
用24db 刷写最新代码的system.img 不能复现问题
用27db 刷写最新代码的system.img 必现问题
Next action
1.确认定位引起问题的代码

#4 Updated by DL FW-张挽强 over 2 years ago

  • Assignee changed from DL FW-张挽强 to CD APP-李蛟

排查之后发现是如下代码修改引起的：
https://dev.thundercomm.com/gerrit/c/general/platform/packages/apps/Launcher3/+/157416

麻烦帮忙确认一下 这笔代码的修改是否存在问题

#5 Updated by CD APP-李德盛 over 2 years ago

  • Assignee changed from CD APP-李蛟 to CD APP-李德盛

#6 Updated by CD APP-李德盛 over 2 years ago

  • Assignee changed from CD APP-李德盛 to DL FW-张挽强

■ Current conclusion
新版本未复现
版本：FlatBuild_HH_VX1_MCE_FSE.M.D.userdebug.01.00.X101.202210290310
■ My analysis
在新系统上安装旧版launcher也无法复现，应该是小窗修复了
■ Next action
请确认是否有相关修改

#7 Updated by DL FW-张挽强 over 2 years ago

  • Assignee changed from DL FW-张挽强 to CD APP-李德盛
  • Fixed Version set to 2022-10-31

■ Current conclusion
27号之后小窗没有入库代码
之前确认是由于这笔代码引起的 https://dev.thundercomm.com/gerrit/c/general/platform/packages/apps/Launcher3/+/157416
找测试的测试同学验测试过 这个是必现的问题在最新版本
具体现象和必现手顺 请与测试同学联系

#8 Updated by DL FW-张挽强 over 2 years ago

  • Fixed Version deleted (2022-10-31)

#9 Updated by CD APP-李德盛 over 2 years ago

#10 Updated by CD APP-李德盛 over 2 years ago

  • Assignee changed from CD APP-李德盛 to DL FW-张挽强

■ Current conclusion
复现成功
■ My analysis
旧版本进出recent存在漏掉用enterRecentTasks和exitRecentTasks的问题，导致从应用上划进recent小窗不隐藏，上面那笔提交修复了这点。现在的逻辑：上划进入recent状态调用enterRecentTasks，抬起回到桌面调用exitRecentTasks。去掉上述逻辑后问题消失。
其他操作也能够触发该问题，猜测是任务没有完全退出小窗模式
修改后的测试视频 https://share.thundersoft.com/redmine/attachments/download/70058/%E4%BF%AE%E6%94%B9%E5%90%8E.mp4
■ Next action
请确认关闭小窗以及enterRecentTasks和exitRecentTasks的逻辑，如需launcher修改，请提供完整的调用流程和时序。

#11 Updated by DL FW-张挽强 over 2 years ago

■ My analysis
在小窗由小窗口进入全屏时候，进入recent后没有清除recenttask的list 导致退出后有恢复了小窗模式。
■ Next action
https://dev.thundercomm.com/gerrit/c/general/platform/frameworks/base/+/159445
提交代码 编译验证

#12 Updated by DL FW-张挽强 over 2 years ago

  • Status changed from ASSIGNED to RESOLVED
  • Assignee changed from DL FW-张挽强 to CD TEST-方永红
  • % Done changed from 0 to 100
  • Resolution changed from -- to FIXED
  • Fixed Version set to 2022-11-03
  • Root cause set to 在小窗切全平时，没有清除进入recent加入的小窗task信息，导致退出时又恢复了小窗

#13 Updated by CD TEST-方永红 over 2 years ago

  • Assignee changed from CD TEST-方永红 to DL FW-张挽强

11.3
之前在测试过程发现直接在小窗模式进入全屏，再进入recent也会出现页面卡住的现象（以下称“该问题）
经过验证,该问题已经解决,但按照bug票中的手顺仍能复现，故分析不是同一原因造成，需要研发同事再次分析解决

#14 Updated by DL FW-张挽强 over 2 years ago

  • % Done changed from 100 to 60

#15 Updated by DL FW-张挽强 over 2 years ago

  • Status changed from RESOLVED to ASSIGNED

#16 Updated by DL FW-张挽强 over 2 years ago

  • Status changed from ASSIGNED to RESOLVED
  • Assignee changed from DL FW-张挽强 to CD TEST-方永红
  • % Done changed from 60 to 100
  • Fixed Version changed from 2022-11-03 to 2022-11-15

#17 Updated by CD TEST-方永红 over 2 years ago

  • Status changed from RESOLVED to VERIFIED
  • Verified Version set to FlatBuild_HH_VX1_MCE_FSE.M.D.user.01.00.X101.202211160534

11.16 对有小窗功能的应用进行检查，问题不复现，关闭

#18 Updated by CD TEST-方永红 over 2 years ago

  • Status changed from VERIFIED to CLOSED

#19 Updated by CD FW-王伟 over 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
159445 general/platform/frameworks/base Pre_figure_turbox-c2130c-la1.1-qssi12-dev
AF:MultiWindow:fixed sliding up the app can't exit completely
1.Modify the freeform change fullmode remove root task for recent
TC-RID: 1201-0204601
IssueID: TS-R-BUG-112913
Change-Id: I80f90e344c15123423a362ade4b31dea3bb1c0a5

#20 Updated by CD FW-王伟 over 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
162026 general/platform/frameworks/base Pre_figure_turbox-c2130c-la1.1-qssi12-dev
AF:MultiWindow:The freeform window does not display correctly after exiting Recent
1.modify enterRecentTasks F-interface
Change-Id: I37af0e9796d523e71b0d2023278d2de8c9c5feb7
TC-RID: 1201-0204601
IssueID: TS-R-BUG-112913

#21 Updated by CD FW-王伟 over 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
162371 general/platform/frameworks/base Pre_figure_turbox-c2130c-la1.1-qssi12-dev
AF:MultiWindow:The freeform window does not display correctly after exiting Recent
1.modify enterRecentTasks F-interface
Change-Id: I680c00a317218954f72fb15f1d1afa175c511c50
TC-RID: 1201-0204601
IssueID: TS-R-BUG-112913
