Bug #114174

测试 Test-ST #113421: V4.0功能与专项测试

测试 Test-ST #113425: V4.0专项--BSP专项--压测

【BSP】【EVT1】【Boot】【偶现1/10】【压测】设备烧机后，在启动过程中断电重启，偶现设备无法启动

Added by 移动测试一组_CDTS 刘强 over 2 years ago. Updated over 1 year ago.

Status:CLOSEDStart date:2022-11-28
Priority:UrgentDue date:2023-01-19
Assignee:移动测试一组_CDTS 刘强% Done:

0%

Category:BSP
Target version:VC1_FSE_0086_20230328
Need_Info:-- Found Version:01.00.0051.X101
Resolution:-- Degrated:--
Severity:Critical Verified Version:
Reproducibility:Occasionally Fixed Version:
Test Type:ST Root cause:通过备份秘钥的方式进行规避

Description

【前提条件】
None

【测试步骤】
1.使用Qfile烧机后等待设备自动开机
2.在出现开机动画到homescreen之间随机断开电源然后重新插入
3.然后等待设备再次启动
4.若设备能正常启动则重复2-3 三次
5.再烧机重复1-4 10次

【预期结果】
3-4-5 均能正常启动

【实际结果】
设备会出现无法启动的情况，大约重复7-10次会偶现一次

recovery.txt Magnifier (531 KB) 移动测试一组_CDTS 刘强, 2022-11-28 15:11

uart.log (5.71 MB) 移动测试一组_CDTS 刘强, 2022-11-28 15:11

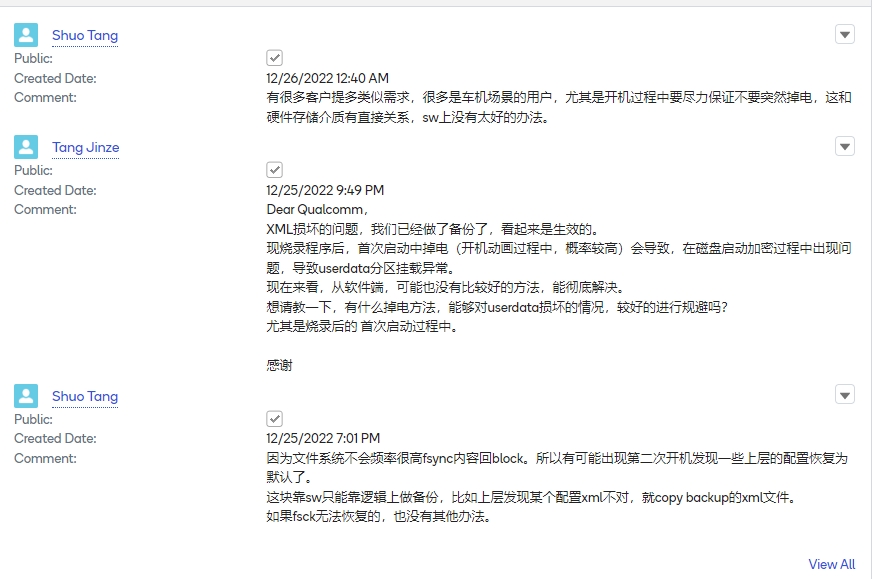

%e5%bc%82%e5%b8%b8%e6%8e%89%e7%94%b5-%e9%ab%98%e9%80%9a%e5%9b%9e%e5%a4%8d%e5%86%85%e5%ae%b9 Screenshot-20221230-151151

History

#1 Updated by CDTS_TEST 王成 over 2 years ago

  • Severity changed from Major to Critical

#2 Updated by CDTS-TEST 周婷 over 2 years ago

  • Target version set to VX1_MCE_FSE_V5.0_20221230

#3 Updated by CD BSP-唐金泽 over 2 years ago

  • Assignee changed from CD BSP-唐金泽 to 移动测试一组_CDTS 刘强

该BUG当前无法按照debug的方式进行解决。
现按照测试复归手顺，在不同的掉电阶段，排查出安全掉电的环境。

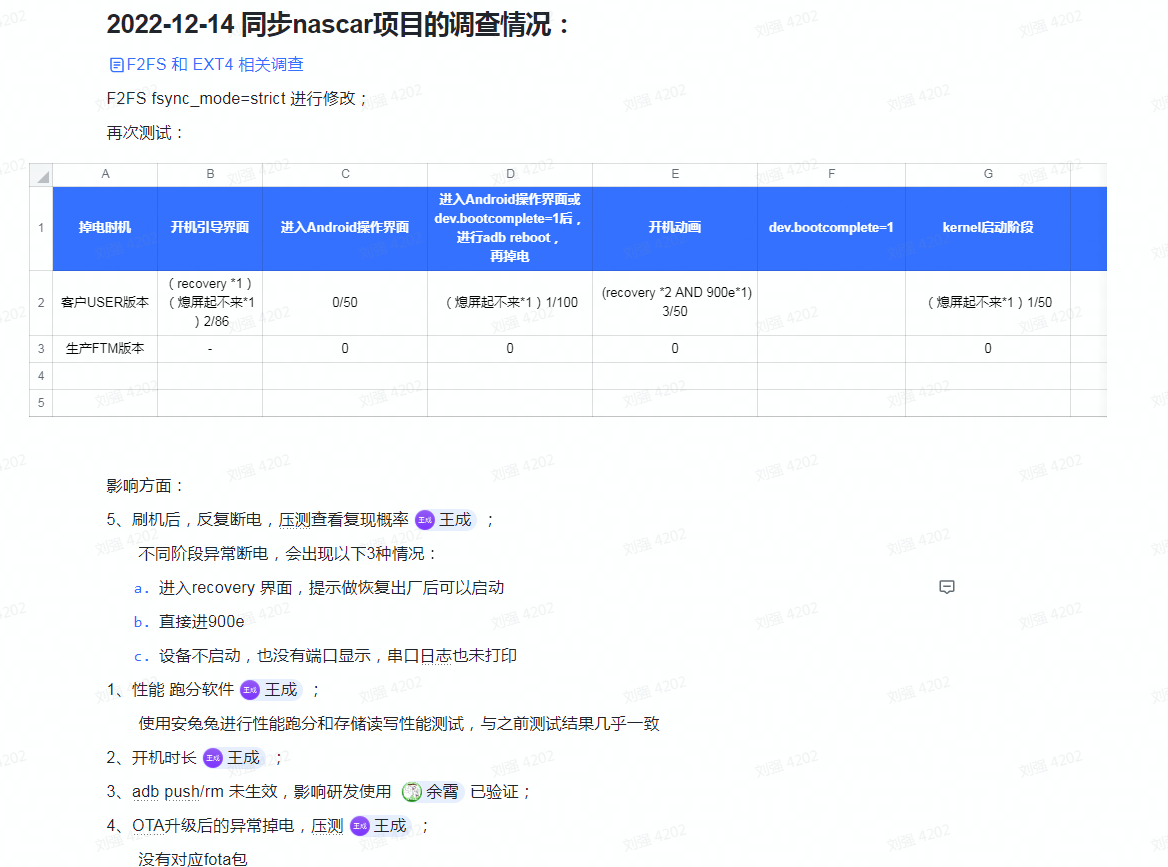

已梳理表格如下,需要测试同学帮忙补充：
https://thundersoft.feishu.cn/docx/Mu77diwUqooeaaxtRNhcbGYen7a

#4 Updated by CDTS-TEST 周婷 over 2 years ago

  • Assignee changed from 移动测试一组_CDTS 刘强 to CD BSP-唐金泽

如需测试依赖，请正确流转bug 状态，谢谢

#5 Updated by CDTS-TEST 周婷 over 2 years ago

  • Due date set to 2022-12-16

12/16 需有结论

#6 Updated by CD BSP-唐金泽 over 2 years ago

已经发布过软件已有策略，和高通建议。
SW暂无其他对策。
之前内部会议过程中，已经达成一致请测试同学进行验证规避手顺和对比。
Owner可以请测试相关同事转移指派过去，继续推进。

#7 Updated by CD BSP-唐金泽 over 2 years ago

  • Root cause set to 现按照测试复归手顺，在不同的掉电阶段，排查出安全掉电的环境。

#9 Updated by CD TPM-王祥林 over 2 years ago

  • Due date changed from 2022-12-16 to 2023-01-19

#10 Updated by IoT scm over 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
175021 general/platform/vendor/qcom/kona Pre_figure_turbox-c2130c-la1.1-vendor-dev
BSP:SYSTEM: Vendor (1/3)Backup the encryption key
Backup the encryption key to persist/key and retrieve key from persist/key
TC-RID: 0301-0100805
IssueID: TS-R-DF-114174
Change-Id: I169a76ef0f295740bd5d294a1d7a5d92f173ed98

#11 Updated by IoT scm over 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
175994 general/platform/system/core Pre_figure_turbox-c2130c-la1.1-vendor-dev
BSP:SYSTEM: Vendor(5/3)Backup the encryption key
Backup the encryption key to persist/key and retrieve key from persist/key
TC-RID: 0301-0100805
IssueID: TS-R-DF-114174
Change-Id: Idc3107b04deda1b23fdd6ccb8f9a3943f32fcf6f

#12 Updated by IoT scm over 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
175177 general/platform/system/sepolicy Pre_figure_turbox-c2130c-la1.1-qssi12-dev
BSP:SYSTEM: Qssi12 (2-1/3)Backup the encryption key
Backup the encryption key to persist/key and retrieve key from persist/key
TC-RID: 0301-0100805
IssueID: TS-R-DF-114174
Change-Id: I0280412e3a1f38fb81bef1efb012e0aa529e09f3

#13 Updated by IoT scm over 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
175026 general/platform/system/core Pre_figure_turbox-c2130c-la1.1-qssi12-dev
BSP:SYSTEM: Qssi12 (3/3)Backup the encryption key
Backup the encryption key to persist/key and retrieve key from persist/key
TC-RID: 0301-0100805
IssueID: TS-R-DF-114174
Change-Id: Ifa81d0dbe655c250169dd125e2b09cee922e4abc

#14 Updated by IoT scm over 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
175991 general/platform/system/core Pre_figure_turbox-c2130c-la1.1-qssi12-dev
BSP:SYSTEM: Qssi12 (6/3)Backup the encryption key
Backup the encryption key to persist/key and retrieve key from persist/key
TC-RID: 0301-0100805
IssueID: TS-R-DF-114174
Change-Id: I8a5bc9d1b4b272fe1a215d898ca3754d48d34342

#15 Updated by IoT scm over 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
175958 general/platform/vendor/qcom/kona Pre_figure_turbox-c2130c-la1.1-vendor-dev
BSP:SYSTEM: Vendor (4/3)Backup the encryption key
Backup the encryption key to persist/key and retrieve key from persist/key
TC-RID: 0301-0100805
IssueID: TS-R-DF-114174
Change-Id: Ie9fd19e5cd6acc818c293cf8b388ed263ff08d1c

#16 Updated by CD BSP-唐金泽 over 2 years ago

  • Status changed from New to RESOLVED
  • Assignee changed from CD BSP-唐金泽 to CDTS_TEST 王成
  • Root cause changed from 现按照测试复归手顺，在不同的掉电阶段，排查出安全掉电的环境。 to 通过备份秘钥的方式进行规避

通过备份秘钥的方式进行规避

#17 Updated by CDTS_TEST 王成 over 2 years ago

  • Assignee changed from CDTS_TEST 王成 to 移动测试一组_CDTS 刘强

#18 Updated by IoT scm over 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
184096 general/platform/vendor/qcom/kona Pre_figure_turbox-c2130c-la1.1-vendor-dev
BSP:SYSTEM: Fix userdebug backup encryption key failure
Fix userdebug backup encryption key failure
TC-RID: 0301-0100805
IssueID: TS-R-DF-114174
Change-Id: I7b41116aec4574f00a1c723975317474bae1f3ae

#19 Updated by 移动测试一组_CDTS 刘强 over 2 years ago

使用新的VB工厂版本和user来回压测验证：目前217次未复现

#20 Updated by IoT scm over 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
178127 general/common Pre_figure_turbox-c2130c-la1.1-vendor-dev
BSP:SYSTEM: Keep metadata/userdata/persist the same
Keep metadata/userdata/persist partitions
same as FTM userdebug's partitions
TC-RID: 0301-0100805
IssueID: TS-R-DF-114174
Change-Id: Ia6c830370855727a6e545ea6a575b8e4bde53301

#21 Updated by 移动测试一组_CDTS 刘强 over 2 years ago

VB 验证 超过200次未复现，已经合入正式版本，继续在3.22 db 正式版本中压测，如不复现将关闭此问题

#22 Updated by CDTS_TEST 王成 over 2 years ago

  • Target version changed from VX1_MCE_FSE_V5.0_20221230 to VC1_FSE_0086_20230328

#23 Updated by 移动测试一组_CDTS 刘强 over 2 years ago

  • Status changed from RESOLVED to VERIFIED

VB验证200次
Release 0085版本验证：229次

【测试步骤】
1. 烧写0085版本
2. 在开机过程中进行异常断电-上电压测 10次
3. 等10次后，进入到操作系统，进行OTA升级
4. 升级成功后，设备重启，在重启过程中进行异常断电压测

验证结果详情：https://thundersoft.feishu.cn/sheets/shtcn7PGzO2W4gnMylrMGfHFaJh?sheet=FKdpGr
压测未复现，暂时关闭

#24 Updated by 移动测试一组_CDTS 刘强 over 2 years ago

  • Status changed from VERIFIED to CLOSED

#25 Updated by IoT scm almost 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
206480 general/platform/system/sepolicy EmeiMoun-660-la4.0-dev
BSP:SYSTEM: Qssi12 (2-1/3)Backup the encryption key
Backup the encryption key to persist/key and retrieve key from persist/key
Change-Id: Ia0e66442b65cfe14998728352d9815d58e87fe80
TC-RID: 0301-0100805
IssueID: TS-R-DF-114174

#26 Updated by IoT scm almost 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
214289 general/platform/system/core EmeiMoun-660-la4.0-dev
BSP:SYSTEM: Backup the encryption key
Backup the encryption key to persist/key and retrieve key from persist/key
TC-RID: 0301-0100805
IssueID: TS-R-DF-114174
Change-Id: I037c82b0b27aab86aaf58ad11a8afe34a2a26111

#27 Updated by IoT scm almost 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
214267 general/platform/vendor/qcom/falcon_64_ms_01 EmeiMoun-660-la4.0-dev
BSP:SYSTEM: Backup the encryption key
Backup the encryption key to persist/key and retrieve key from persist/key
TC-RID: 0301-0100805
IssueID: TS-R-DF-114174
Change-Id: Ifbecd5e15245ca029e0318666e03b99196bc7923

#28 Updated by IoT scm almost 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
215302 general/device/qcom/sepolicy EmeiMoun-660-la4.0-dev
BSP:SYSTEM: Backup the encryption key
Add permissions for backup the encryption key
TC-RID: 0301-0100805
IssueID: TS-R-DF-114174
Change-Id: I5832d7a2485e20cf57ddd21cb85be9047c5eba9f

#29 Updated by IoT scm over 1 year ago

Gerrit Merge Information：
ID Project Branch Uploader
329474 general/LINUX/android/vendor/qcom/proprietary Blink-c6490-la3.1-vendor-dev
Camera:HAL:Add slave configuration for imx415 sensor -V1.0
1.Add a slave driver
2.Separate the master and slave drivers
3.Lock the sensor ID of the master and slave
TC-RID: 0501-0700306
IssueID: TS-R-DF-114174
Change-Id: I7a67dfc4c73681db8f00351e4faa75179af71b8d

#30 Updated by IoT scm over 1 year ago

Gerrit Merge Information：
ID Project Branch Uploader
330395 general/vendor/thundercomm/360 Blink-c6490-la3.1-qssi13-dev
Camera:APP:update camera test app
Optimize camera preview size
TC-RID:0501-0700306
IssueID: TS-R-DF-114174
Change-Id: I2b2c955dc2eb18535cdb98aac05d1b8bfdc2f42f

#31 Updated by IoT scm over 1 year ago

Gerrit Merge Information：
ID Project Branch Uploader
330306 general/LINUX/android/vendor/qcom/proprietary Blink-c6490-la3.1-vendor-dev
Camera:Hal:add crop node
1. add crop node
2. do crop demo
TC-RID: 0501-0700306
IssueID: TS-R-DF-114174
Change-Id: Ie6c5dc32029a6349bd3f7d1616715bbb83284af3

#32 Updated by IoT scm over 1 year ago

Gerrit Merge Information：
ID Project Branch Uploader
331388 general/LINUX/android/vendor/qcom/proprietary Blink-c6490-la3.1-vendor-dev
Camera:Hal:add support for 4 preview stream
1. modify crop 4 stream
2. add 4 preview pipeline and usecase support
TC-RID: 0501-0700306
IssueID: TS-R-DF-114174
Change-Id: Ieb36ffa00adc7846a22294081e05716317c4bc33

#33 Updated by IoT scm over 1 year ago

Gerrit Merge Information：
ID Project Branch Uploader
331744 general/LINUX/android/vendor/qcom/proprietary Blink-c6490-la3.1-vendor-dev
Camera:Hal:Adjusting fps
Adjust fps to 30fps fixed
TC-RID:0501-0700306
IssueID: TS-R-DF-114174
Change-Id: I4f05d4ed003c7a6670482aa5df5ed169670cdff7

#34 Updated by IoT scm over 1 year ago

Gerrit Merge Information：
ID Project Branch Uploader
331863 general/vendor/thundercomm/360 Blink-c6490-la3.1-qssi13-dev
Camera:APP:add open four preview mode
add open four preview mode
optimize config stream
TC-RID:0501-0700306
IssueID: TS-R-DF-114174
Change-Id: I87cd1cc92bb3c14abcb01abc407604089e7f1b19

#35 Updated by IoT scm over 1 year ago

Gerrit Merge Information：
ID Project Branch Uploader
331640 general/LINUX/android/vendor/qcom/proprietary Blink-c6490-la3.1-vendor-dev
Camera:Hal:change stitch algo output to 3840x576
change stitch algo output
close uesless log
TC-RID: 0501-0700306
IssueID: TS-R-DF-114174
Change-Id: I363da11c936fbc72dbb49722c58dae6a275f350d

#36 Updated by IoT scm over 1 year ago

Gerrit Merge Information：
ID Project Branch Uploader
332292 general/LINUX/android/vendor/qcom/proprietary Blink-c6490-la3.1-vendor-factory
Revert Camera:Hal:Adjusting fps
This reverts commit 5e0975b9b2b764cea5d98acf0c07e93d8a4f99b6.
Reason for revert: <for factory>
TC-RID:0501-0700306
IssueID: TS-R-DF-114174
Change-Id: I5f0b96355ebf69cd646f22686f1df50da640d22c

#37 Updated by IoT scm over 1 year ago

Gerrit Merge Information：
ID Project Branch Uploader
332293 general/LINUX/android/vendor/qcom/proprietary Blink-c6490-la3.1-vendor-factory
Revert Camera:HAL:Add slave configuration for imx415 sensor -V1.0
This reverts commit 7c145c834bcdec18f2b8735e0ef45d780234b164.
Reason for revert: <for factory>
TC-RID: 0501-0700306
IssueID: TS-R-DF-114174
Change-Id: I4fef6ee1e02327de2e4fc77278325f1f225a4538

#38 Updated by IoT scm over 1 year ago

Gerrit Merge Information：
ID Project Branch Uploader
334009 general/vendor/thundercomm/360 Blink-c6490-la3.1-qssi13-factory
Camera:APP:Add factory Camera test app
Add factory Camera test app
TC-RID:0501-0700306
IssueID: TS-R-DF-114174, BLINK360-75
Change-Id: I8eb1c2c43a1a07bd2107a5bd3cd4973a6c1f6796

#39 Updated by IoT scm over 1 year ago

Gerrit Merge Information：
ID Project Branch Uploader
342210 general/LINUX/android/vendor/qcom/proprietary Next-c6490-la3.1-vendor-dev
Camera:HAL:Add slave configuration for imx415 sensor -V1.0
1.Add a slave driver
2.Separate the master and slave drivers
3.Lock the sensor ID of the master and slave
IssueID: TS-R-DF-114174
Change-Id: I7a67dfc4c73681db8f00351e4faa75179af71b8d

Also available in: Atom PDF
