Bug #114834
测试 Test-ST #113421: V4.0功能与专项测试
测试 Test-ST #114212: V4.0专项--BSP专项--性能测试
【BSP】【EVT2】【专项】【响应时间】息屏时间，实测：792ms，高于对比机：244ms
| Status: | CLOSED | Start date: | 2023-01-05 | |
|---|---|---|---|---|
| Priority: | High | Due date: | ||
| Assignee: | 移动测试一组_CDTS 刘强 | % Done: | 100% | |
| Category: | CD-FW | |||
| Target version: | - | |||
| Need_Info: | -- | Found Version: | FlatBuild_HH_VX1_MCE_FSE.M.D.user.01.00.X101.202212240330 | |
| Resolution: | FIXED | Degrated: | No | |
| Severity: | Major | Verified Version: | ||
| Reproducibility: | Every time | Fixed Version: | 2023-01-10 | |
| Test Type: | ST | Root cause: | 息屏时间晚的原因，模拟点击时间间隔较长，息屏动画时间较长 |
Description
【前提条件】
使用user版本测试
【测试步骤】
1、设备烧机启动
2、打开下拉通知栏
3、点击息屏
开始计时：点击息屏后，出现坐标轴瞬间
停止计时：屏幕完全黑下去
【预期结果】
不低于对比机244ms
【实际结果】
192ms
测试视频：ftp://cdiot@192.168.87.46/Figure/video/performance/screenoff
29603-29801
792ms
Subtasks
History
#1 Updated by CDTS-TEST 周婷 over 2 years ago
- Assignee changed from CD BSP-唐金泽 to CD SYSTEM-胡兵
#2 Updated by 移动测试一组_CDTS 刘强 over 2 years ago
移动测试一组_CDTS 刘强 wrote:
【前提条件】
使用user版本测试【测试步骤】
1、设备烧机启动
2、打开下拉通知栏
3、点击息屏
开始计时：点击息屏后，出现坐标轴瞬间
停止计时：屏幕完全黑下去【预期结果】
不低于对比机244ms【实际结果】
792ms测试视频：ftp://cdiot@192.168.87.46/Figure/video/performance/screenoff
29603-29801
792ms
#3 Updated by CD SYSTEM-胡兵 over 2 years ago
- Status changed from New to ASSIGNED
现状分析：
当前是点击事件UP才会触发灭屏流程，但快速点击实验下，UP也会耗费200ms的样子(down-up物理耗时/tp irq-app软件耗时)
需要优化为DOWN时触发，但需要评估周边影响？目前看没有长按功能。
子票：https://share.thundersoft.com/redmine/issues/115082
12-24 01:38:49.219 1103 2174 I intercept_power: [ACTION_DOWN,0,0]
12-24 01:38:49.423 1103 2174 I intercept_power: [ACTION_UP,0,0]
12-24 01:38:56.936 1103 1734 I intercept_power: [ACTION_DOWN,0,0]
12-24 01:38:57.139 1103 1734 I intercept_power: [ACTION_UP,0,0]
12-24 01:39:03.843 1103 1734 I intercept_power: [ACTION_DOWN,0,0]
12-24 01:39:04.048 1103 1734 I intercept_power: [ACTION_UP,0,0]
| 耗时点 | 耗时 | 票号 | 组别 | 备注 |
| 点击事件--通知fw powering off（PowerManagerService） | 200ms | 115082 | FW |
下一步计划：
1.继续拆分当前休眠流程
--日志start-end点
--日志时间与相机物理时长匹配
--systrace分析
2.拆解对比机休眠流程
#4 Updated by CD SYSTEM-胡兵 over 2 years ago
- File systrace2.jpg added
- File systrace1.png added
现状分析：

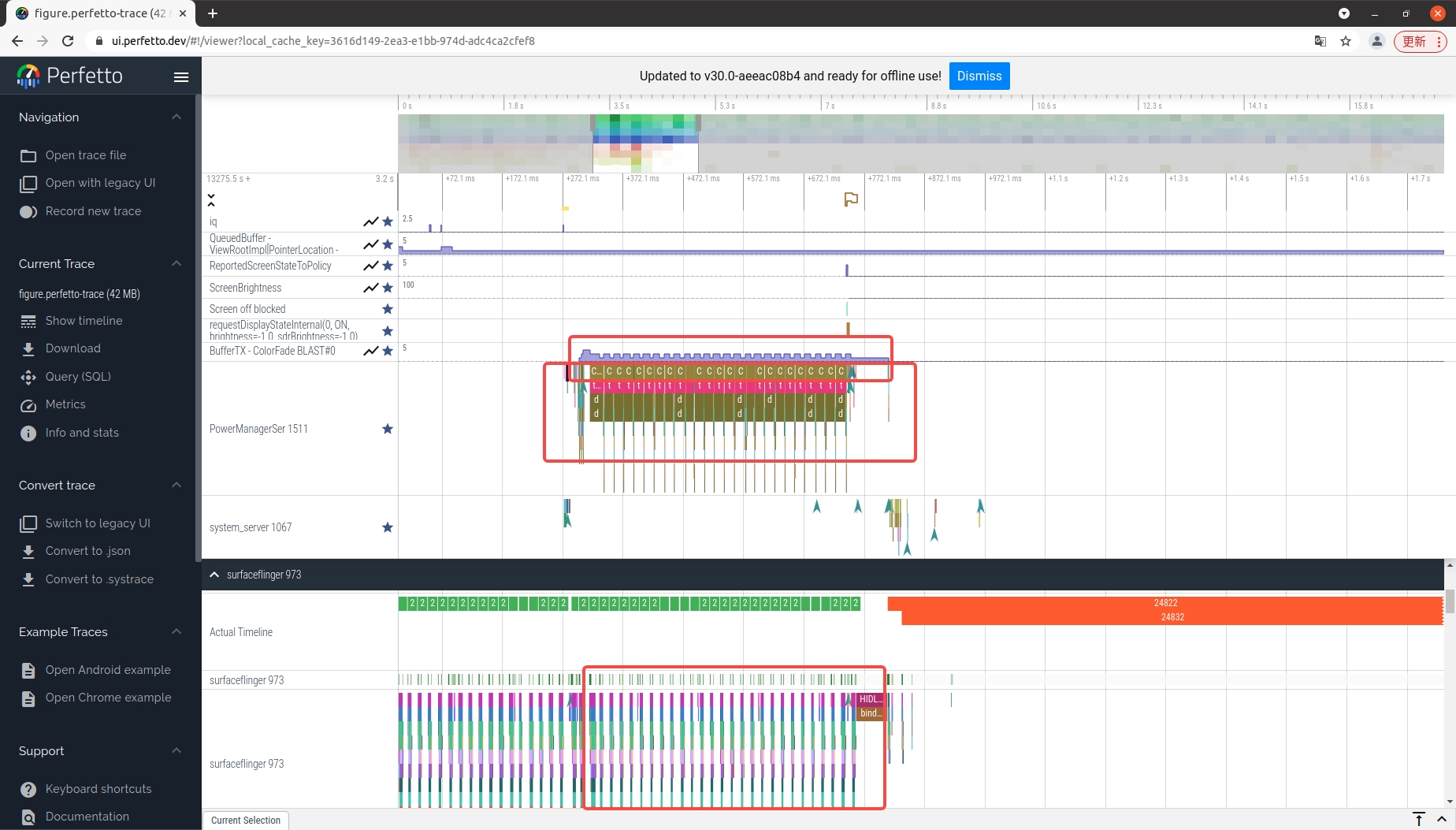

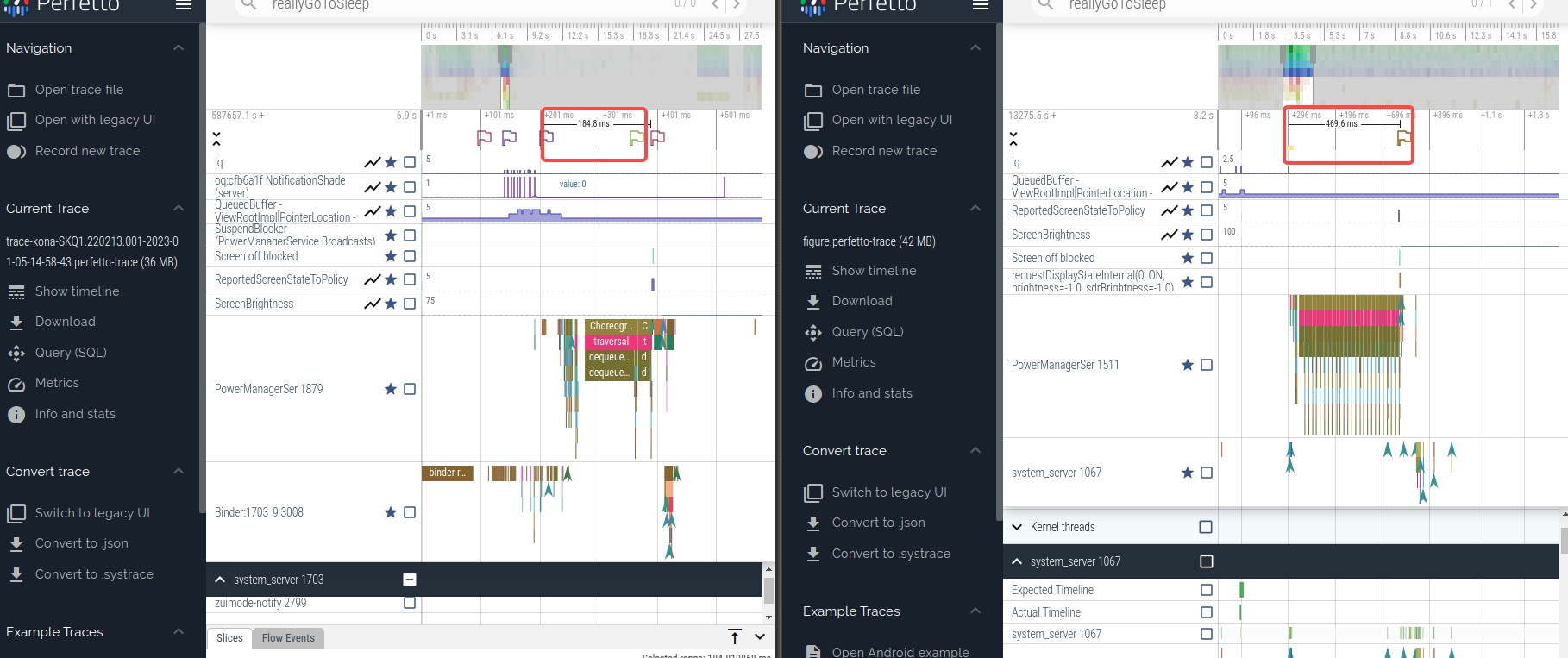

从日志与systrace分析，除TP外的耗时集中在PowerManagerService中，与对比机差距接近300ms左右，
上图可以看到PMS耗时在动画部分
与FW同学沟通后，问题出在PMS动画延时上，FW同学修改出如下VB，包含TP与PMS动画修改，验证有效：
ftp://cdiot@192.168.87.46/Pre_figure/VerifyBuild/Pre_figure_turbox-c2130c-la1.1-qssi12-dev/20230108/202301082003-2099/FlatBuild_HH_VX1_MCE_FSE.M.D.user.01.00.X101.202301082300.zip
麻烦测试同学使用上述VB验证
#5 Updated by 移动测试一组_CDTS 刘强 over 2 years ago
与FW同学沟通后，问题出在PMS动画延时上，FW同学修改出如下VB，包含TP与PMS动画修改，验证有效：
ftp://cdiot@192.168.87.46/Pre_figure/VerifyBuild/Pre_figure_turbox-c2130c-la1.1-qssi12-dev/20230108/202301082003-2099/FlatBuild_HH_VX1_MCE_FSE.M.D.user.01.00.X101.202301082300.zip
验证通过，使用vb版本重新测试：272ms
#6 Updated by CD SYSTEM-胡兵 over 2 years ago
- Assignee changed from CD SYSTEM-胡兵 to CD FW 曹覃刚
Hi 覃刚
麻烦入库下相关提交Thanks
#7 Updated by IoT scm over 2 years ago
| ID | Project | Branch | Uploader |
| 174811 | general/platform/frameworks/base | Pre_figure_turbox-c2130c-la1.1-qssi12-dev | caoqg0702@thundersoft.com |
| AF:SystemOptimization:Optimize the time when the screen goes off Optimize the time when the screen goes off TC-RID: 1201-0205101 IssueID: TS-R-BUG-114834 Change-Id: I88ad082210ab6ab038fa713a3ac09d7a217feaaa |
|||
#8 Updated by CD FW 曹覃刚 over 2 years ago
- Category changed from BSP to CD-FW
- Status changed from ASSIGNED to RESOLVED
- Assignee changed from CD FW 曹覃刚 to 移动测试一组_CDTS 刘强
- Resolution changed from -- to FIXED
- Degrated changed from -- to No
- Fixed Version set to 2023-01-10
- Root cause set to 息屏时间晚的原因，模拟点击时间间隔较长，息屏动画时间较长
#9 Updated by 移动测试一组_CDTS 刘强 over 2 years ago
- Status changed from RESOLVED to VERIFIED
最新验证结果：测试：272ms
测试版本：FlatBuild_HH_VX1_MCE_FSE.M.D.user.01.00.X101.202301120333.zip
#10 Updated by 移动测试一组_CDTS 刘强 over 2 years ago
- Status changed from VERIFIED to CLOSED
