Bug #116114
测试 Test-ST #114575: V5.0功能测试票
测试 Test-ST #114577: Launcher/SystemUI
【AF】【EVT2】【蓝牙】成功连接蓝牙设备后，状态栏蓝牙图标明显变小了
| Status: | CLOSED | Start date: | 2023-02-09 | |
|---|---|---|---|---|
| Priority: | Normal | Due date: | 2023-02-22 | |
| Assignee: | CD Test赵飞 | % Done: | 100% | |
| Category: | LC | |||
| Target version: | VC1_FSE_0082_20230314 | |||
| Need_Info: | -- | Found Version: | FlatBuild_HH_VX1_MCE_FSE.M.R.user.01.00.0073.X101 | |
| Resolution: | FIXED | Degrated: | -- | |
| Severity: | Normal | Verified Version: | ||
| Reproducibility: | Every time | Fixed Version: | ||
| Test Type: | ST | Root cause: | 两种图标的显示大小不一致, 是因为icon图本身的尺寸不一致引起 |
Description
【前提条件】
1、设备已开机
2、准备一个蓝牙设备
【测试步骤】
1、进入设置- 已连接的设备 - 与新设备配对
2、点击搜索到的蓝牙设备名称进行配对连接
3、连接成功后查看状态栏蓝牙图标
【预期结果】
3、状态栏蓝牙图标显示已连接状态，大小与未连接状态一样
【实际结果】
3、状态栏蓝牙图标显示已连接状态，图标大小明显比未连接状态小
【日志】

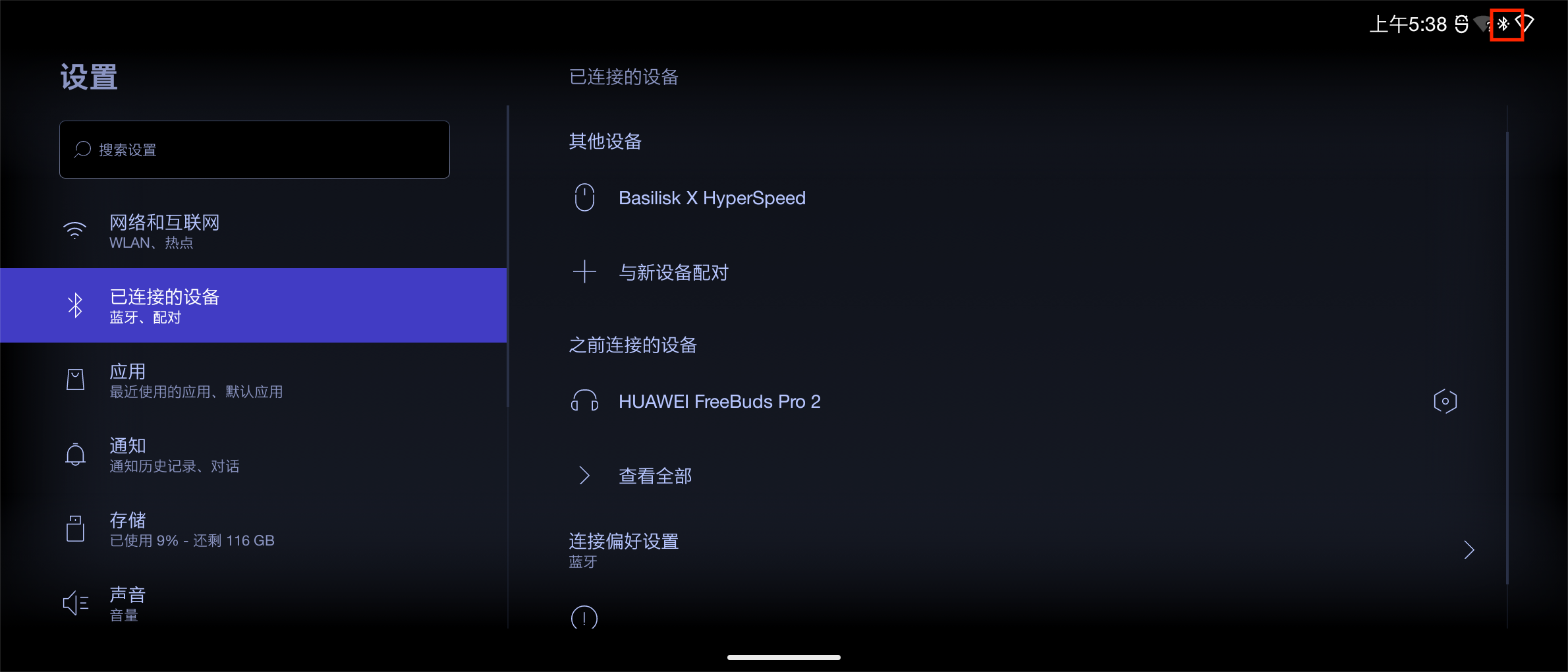

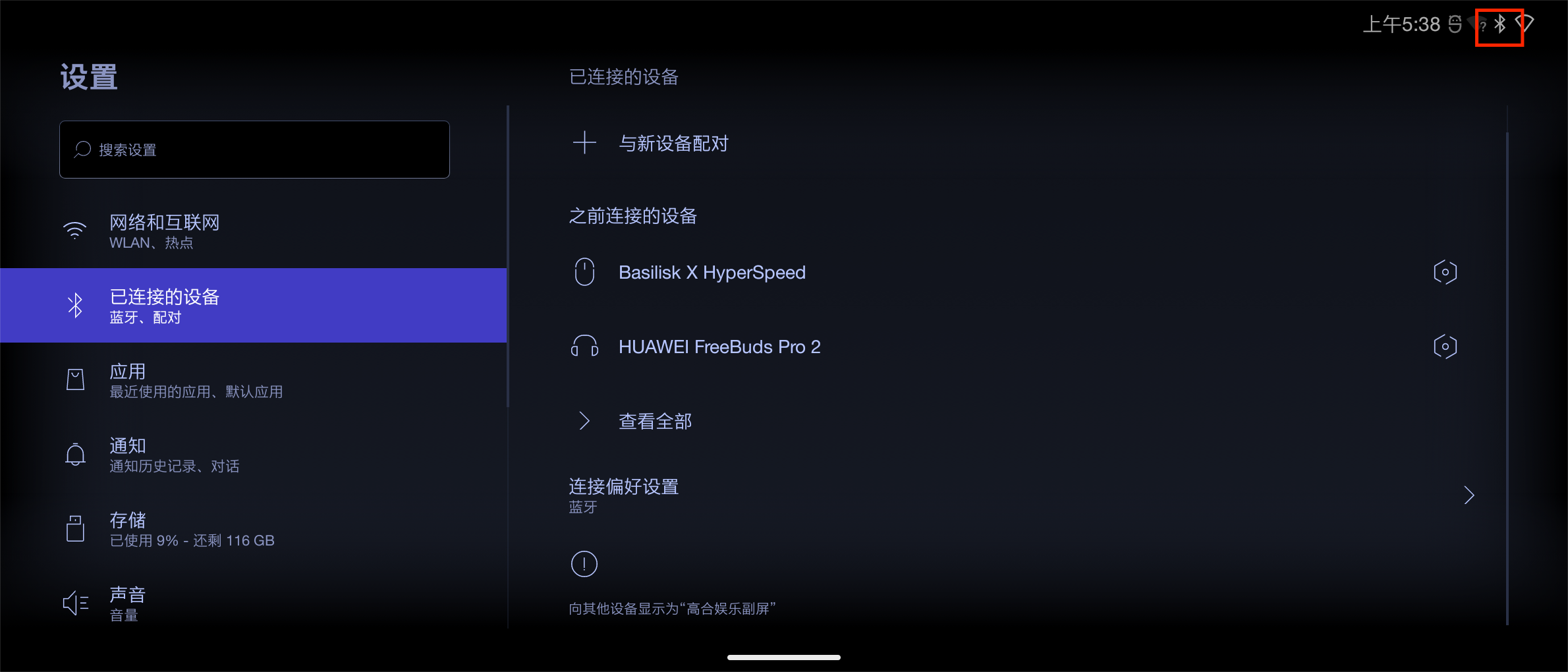

截图见附件
History
#1 Updated by CD FW 曹覃刚 over 2 years ago
- Category changed from CD-FW to LC
- Assignee changed from CD FW 曹覃刚 to CD LC 陶洪普
Hi 普哥
原生只有连接上才会有状态图标的展示
LC在下列提交中增加了两种状态图标的展示, 目前两种图标的显示大小不一致, 是因为icon图本身的尺寸不一致引起，请确认
https://dev.thundercomm.com/gerrit/c/general/platform/frameworks/base/+/144725
#2 Updated by CD LC 陶洪普 over 2 years ago
- File Statbar-BT-icon-size-需求确认.png added
#3 Updated by CD LC 陶洪普 over 2 years ago
如Statbar-BT-icon-size-需求确认.png 中确认
BT连接后的size调整到和未连接一样．
下一步，修改，与测试确认．
http://192.168.87.66:8006/source/xref/Pre_figure_turbox-c2130c-la1.1-qssi12-dev/LA.QSSI/LINUX/android/frameworks/base/packages/SystemUI/res/drawable/ic_bluetooth_connected.xml
#4 Updated by CD LC 陶洪普 over 2 years ago
- Due date set to 2023-02-14
- Status changed from New to ASSIGNED
#6 Updated by CD TPM-王祥林 over 2 years ago
- Target version set to VC1_FSE_0082_20230314
#7 Updated by CD LC 陶洪普 over 2 years ago
- Due date changed from 2023-02-14 to 2023-02-22
- % Done changed from 0 to 10
#8 Updated by CD LC 陶洪普 over 2 years ago
- Status changed from ASSIGNED to NEED_INFO
- Assignee changed from CD LC 陶洪普 to CD Test赵飞
Hi 赵飞，
请帮确认这个编译中图标是否满足要求? 因设计图标显示，请帮忙确认．谢谢！
http://10.0.76.24:8080/job/VerifyBuild_for_IOT_6490/2723/
#9 Updated by CD LC 陶洪普 over 2 years ago
- File VC1-BT-connected.png added

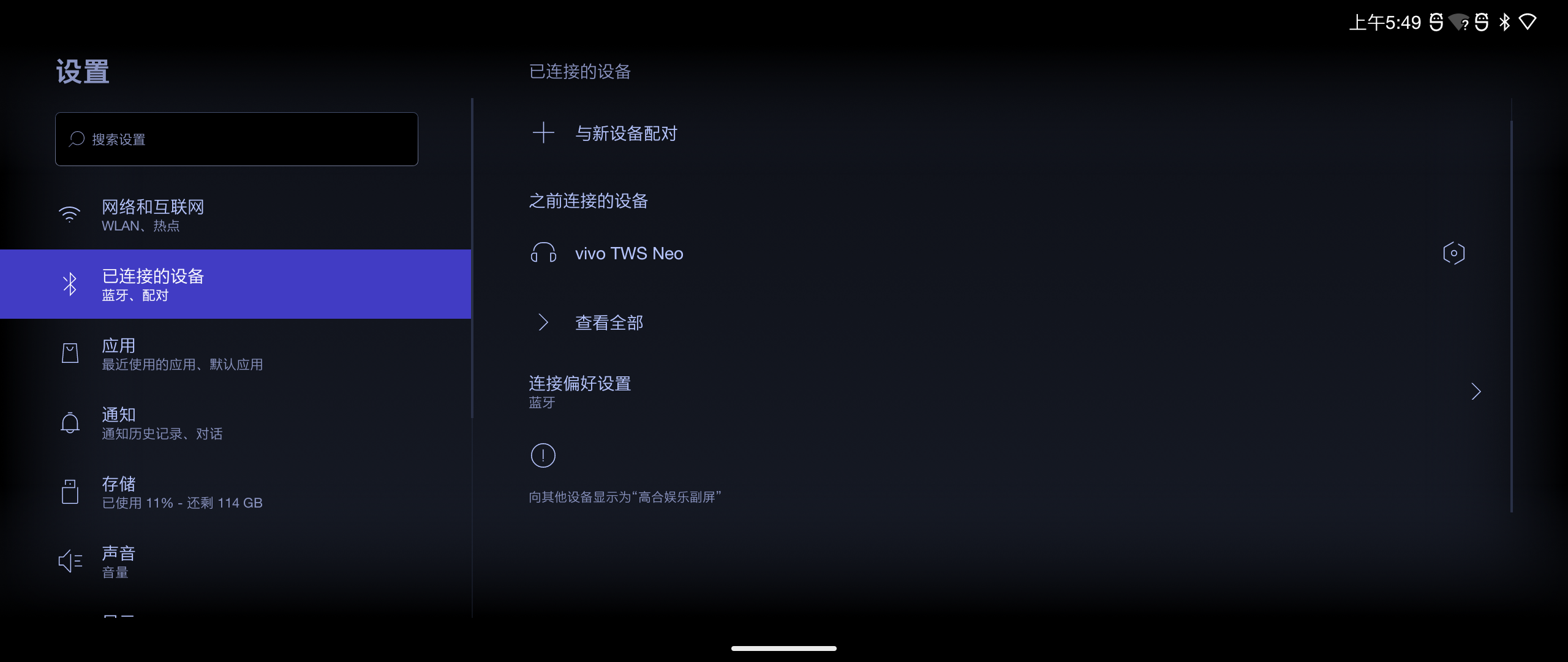

- File VC1-BT-disconnect.png added
#10 Updated by CD LC 陶洪普 over 2 years ago
Summary:
已将未连接与已连接的图标大小，间距做了调整：
https://dev.thundercomm.com/gerrit/c/general/platform/frameworks/base/+/183063
测试结果如附件：
测试王成查看后，确认图标大小差不多，提出两个图标样子不一样．
与李奕霏 确认，图标都要重新设计后，再集成．
请确认当前该票patch是否可合入？是否可关闭？
#11 Updated by CD TPM-王祥林 over 2 years ago
- Status changed from NEED_INFO to ASSIGNED
- Assignee changed from CD Test赵飞 to CD LC 陶洪普
洪普，
如飞书讨论，请先合入这个提交。然后正常走bug状态。
#12 Updated by IoT scm over 2 years ago
| ID | Project | Branch | Uploader |
| 183063 | general/platform/frameworks/base | Pre_figure_turbox-c2130c-la1.1-qssi12-dev | taohp0107@thundersoft.com |
| LC:Bluetooth: Resize the connection Bluetooth Icon size in status bar The connected bluetooth icon is smaller than the disconnected one, so adjust it to fit. TC-RID: 1200-0400102 IssueID: TS-R-BUG-116114 Change-Id: Icad8eb69f5c8c47ba8193acd70828df2f55c5a0c |
|||
#13 Updated by CD LC 陶洪普 over 2 years ago
- Status changed from ASSIGNED to RESOLVED
- Assignee changed from CD LC 陶洪普 to CD Test赵飞
Hi 赵飞，王成
修改size的patch已入库．
周六（王成）提出"未连接"与"已连接"图标除了多了两个圈以外，图形有点区别．
目前AOSP UI设计是这样的．
与李奕霏确认图标后面都有会做替换（UI设计，具体时间还在确认中）．
因该图标确认不协调，先合入，解决size问题．
待后面有UI合入后，再确认．
目前patch已解决当前票中所描述的问题： ＂状态栏蓝牙图标显示已连接状态，图标大小明显比未连接状态小＂
请确认．谢谢！
#14 Updated by CD Test赵飞 over 2 years ago
- Status changed from RESOLVED to VERIFIED
- % Done changed from 10 to 100
- Resolution changed from -- to FIXED
- Root cause set to 两种图标的显示大小不一致, 是因为icon图本身的尺寸不一致引起
验证版本：FlatBuild_HH_MCE_FSE.M.R.user.01.00.0078.C101
验证结果：PASS
当前蓝牙未连接图标与蓝牙连接后的图标显示基本保持了大小一致
后续蓝牙图标UI替换后，再做check
关闭此问题
#15 Updated by CD Test赵飞 over 2 years ago
- Status changed from VERIFIED to CLOSED
