Hi 军哥
输入法的问题，帮忙解析一下

【】当前分析：

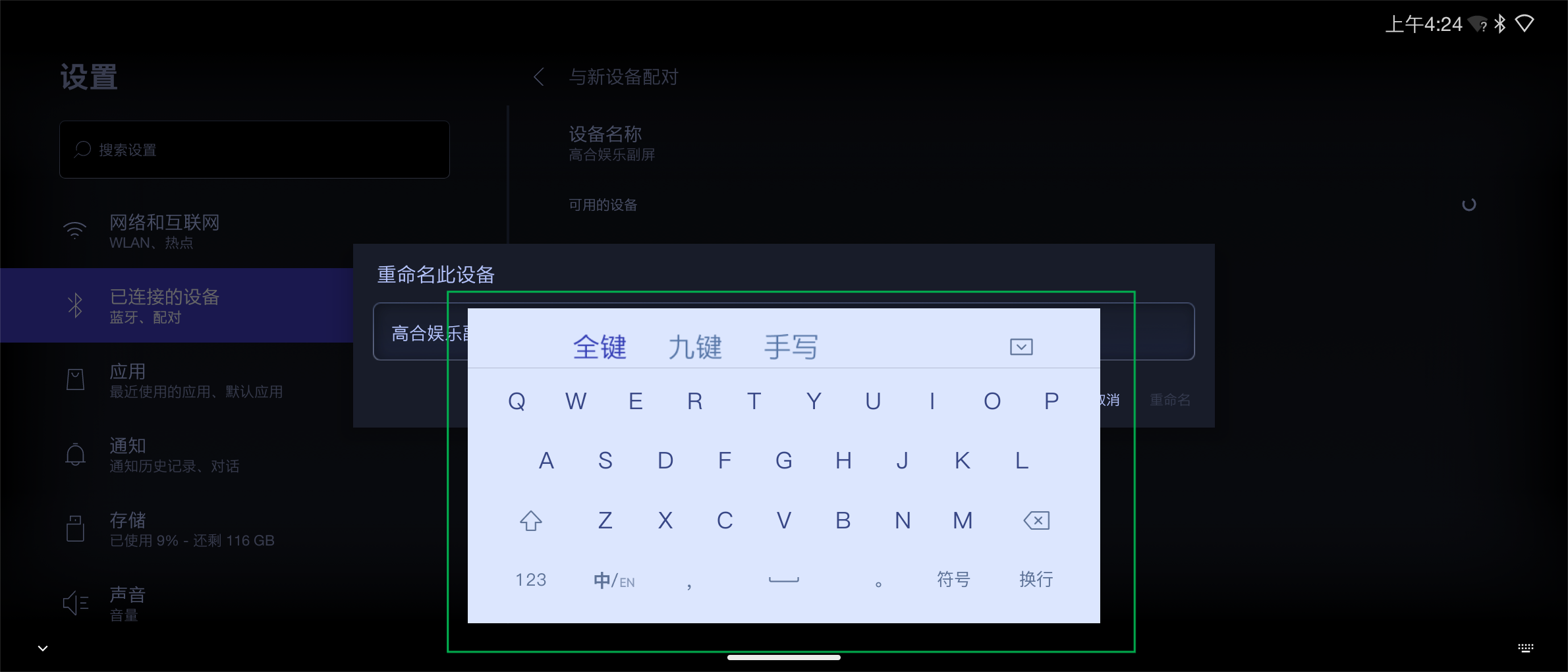

分析了连接蓝牙和未连接蓝牙时，输入软键盘的显示逻辑，从逻辑和日志一起来来看，
连接蓝牙和未连接蓝牙，系统层针对输入法的显示控制并没有差别，显示的差别应该是源于输入法应用内部的UI表现方式。
显示流程的日志：
02-15 18:30:17.874 1004 1166 V InputMethodMenuController: Hide switching menu
02-15 18:30:17.936 2652 2652 V InputMethodManager: Starting input: view=android.widget.EditText{96d738e VFED.VCL. .F...... 30,40-1377,128 #1020003 android:id/edit aid=1073741838},focus=true,windowFocus=true,autofillUiShowing=false,window=android.view.ViewRootImpl$W@51fe7bc,displayId=0,temporaryDetach=false,hasImeFocus=true reason=WINDOW_FOCUS_GAIN
02-15 18:30:17.936 2652 2652 V InputMethodManager: Starting input: tba=android.view.inputmethod.EditorInfo@f786666 ic=com.android.internal.widget.EditableInputConnection@e5adda7
02-15 18:30:17.937 2652 2652 V InputMethodManager: START INPUT: view=android.widget.EditText{96d738e VFED.VCL. .F...... 30,40-1377,128 #1020003 android:id/edit aid=1073741838},focus=true,windowFocus=true,autofillUiShowing=false,window=android.view.ViewRootImpl$W@51fe7bc,displayId=0,temporaryDetach=false,hasImeFocus=true ic=com.android.internal.widget.EditableInputConnection@e5adda7 tba=android.view.inputmethod.EditorInfo@f786666 startInputFlags=VIEW_HAS_FOCUS|IS_TEXT_EDITOR|INITIAL_CONNECTION
02-15 18:30:17.937 1004 3071 V InputMethodManagerService: startInputOrWindowGainedFocusInternalLocked: reason=WINDOW_FOCUS_GAIN client=android.os.BinderProxy@526c8de inputContext=com.android.internal.view.IInputContext$Stub$Proxy@6eefd16 missingMethods= attribute=android.view.inputmethod.EditorInfo@9e2a697 startInputFlags=VIEW_HAS_FOCUS|IS_TEXT_EDITOR|INITIAL_CONNECTION softInputMode=STATE_UNSPECIFIED|ADJUST_RESIZE|IS_FORWARD_NAVIGATION windowFlags=#1800002 unverifiedTargetSdkVersion=31
02-15 18:30:17.937 1004 3071 V InputMethodManagerService: Unspecified window will show input
02-15 18:30:17.938 1004 3071 D InputMethodManagerService: showCurrentInputLocked: mCurToken=android.os.Binder@2622141
02-15 18:30:17.938 1004 3071 V InputMethodManagerService: Calling com.android.internal.view.IInputMethod$Stub$Proxy@4490e0b.showSoftInput(android.os.Binder@e55d4a2, 0, null) for reason: SHOW_AUTO_EDITOR_FORWARD_NAV
02-15 18:30:17.939 2652 2652 V InputMethodManager: Starting input: Bind result=InputBindResult{result=SUCCESS_WITH_IME_SESSION method=com.android.internal.view.IInputMethodSession$Stub$Proxy@2637254 id=com.baidu.input/.ImeService sequence=33 isInputMethodSuppressingSpellChecker=false}
02-15 18:30:17.940 2652 2652 V InputMethodManager: Calling View.onInputConnectionOpened: view= android.widget.EditText{96d738e VFED.VCL. .F...... 30,40-1377,128 #1020003 android:id/edit aid=1073741838}, ic=com.android.internal.widget.EditableInputConnection@e5adda7, tba=android.view.inputmethod.EditorInfo@f786666, handler=null
02-15 18:30:17.943 8241 8241 V InputMethodService: CALL: doFinishInput
02-15 18:30:17.943 8241 8241 V InputMethodService: CALL: onFinishInput
02-15 18:30:17.943 8241 8241 V InputMethodService: CALL: onStartInput
02-15 18:30:17.945 1004 1166 V InputMethodMenuController: Hide switching menu
02-15 18:30:17.949 8241 8241 V InputMethodService: Showing window: showInput=true mShowInputRequested=false mViewsCreated=true mDecorViewVisible=false mWindowVisible=false mInputStarted=true mShowInputFlags=0
02-15 18:30:17.949 8241 8241 V InputMethodService: showWindow: updating UI
02-15 18:30:17.951 8241 8241 V InputMethodService: CALL: onStartInputView
02-15 18:30:17.979 2652 2652 D InputMethodManager: showSoftInput() view=android.widget.EditText{96d738e VFED.VCL. .F...... 30,40-1377,128 #1020003 android:id/edit aid=1073741838} flags=0 reason=SHOW_SOFT_INPUT_BY_INSETS_API
02-15 18:30:17.980 1004 2897 D InputMethodManagerService: --- calledFromForegroundUserOrSystemProcess ? calling uid = 1000 system uid = 1000 calling userId = 0, foreground user id = 0, calling pid = 2652com.android.server.inputmethod.InputMethodManagerService.showSoftInput(InputMethodManagerService.java:3075)
02-15 18:30:17.980 1004 2897 V InputMethodManagerService: Client requesting input be shown
02-15 18:30:17.980 1004 2897 D InputMethodManagerService: showCurrentInputLocked: mCurToken=android.os.Binder@2622141
02-15 18:30:17.981 1004 2897 V InputMethodManagerService: Calling com.android.internal.view.IInputMethod$Stub$Proxy@4490e0b.showSoftInput(android.os.Binder@bcdd18f, 1, null) for reason: SHOW_SOFT_INPUT_BY_INSETS_API
02-15 18:30:18.020 8241 8241 V InputMethodService: showWindow: draw decorView!
02-15 18:30:18.021 1004 3071 D InputMethodManagerService: IME window vis: 3 active: 1 inv: 0 displayId: 0
02-15 18:30:18.030 1004 2897 D InputMethodManagerService: IME window vis: 3 active: 1 inv: 0 displayId: 0
02-15 18:30:18.049 8241 8241 V InputMethodService: Showing window: showInput=true mShowInputRequested=true mViewsCreated=true mDecorViewVisible=true mWindowVisible=true mInputStarted=true mShowInputFlags=1
02-15 18:30:18.050 8241 8241 V InputMethodService: showWindow: updating UI ==
02-15 18:30:18.051 1004 2232 D InputMethodManagerService: IME window vis: 3 active: 1 inv: 0 displayId: 0
02-15 18:30:18.096 1004 2232 D InputMethodManagerService: --- calledFromForegroundUserOrSystemProcess ? calling uid = 1000 system uid = 1000 calling userId = 0, foreground user id = 0, calling pid = 0com.android.server.inputmethod.InputMethodManagerService.reportPerceptibleAsync(InputMethodManagerService.java:3111)
02-15 18:30:18.096 1004 2232 D InputMethodManagerService: IME window vis: 3 active: 1 inv: 0 displayId: 0
02-15 18:30:18.150 1004 2897 D InputMethodManagerService: --- calledFromForegroundUserOrSystemProcess ? calling uid = 1000 system uid = 1000 calling userId = 0, foreground user id = 0, calling pid = 0com.android.server.inputmethod.InputMethodManagerService.reportPerceptibleAsync(InputMethodManagerService.java:3111)
02-15 18:30:18.150 1004 2897 D InputMethodManagerService: IME window vis: 3 active: 1 inv: 0 displayId: 0

横向对比测试：

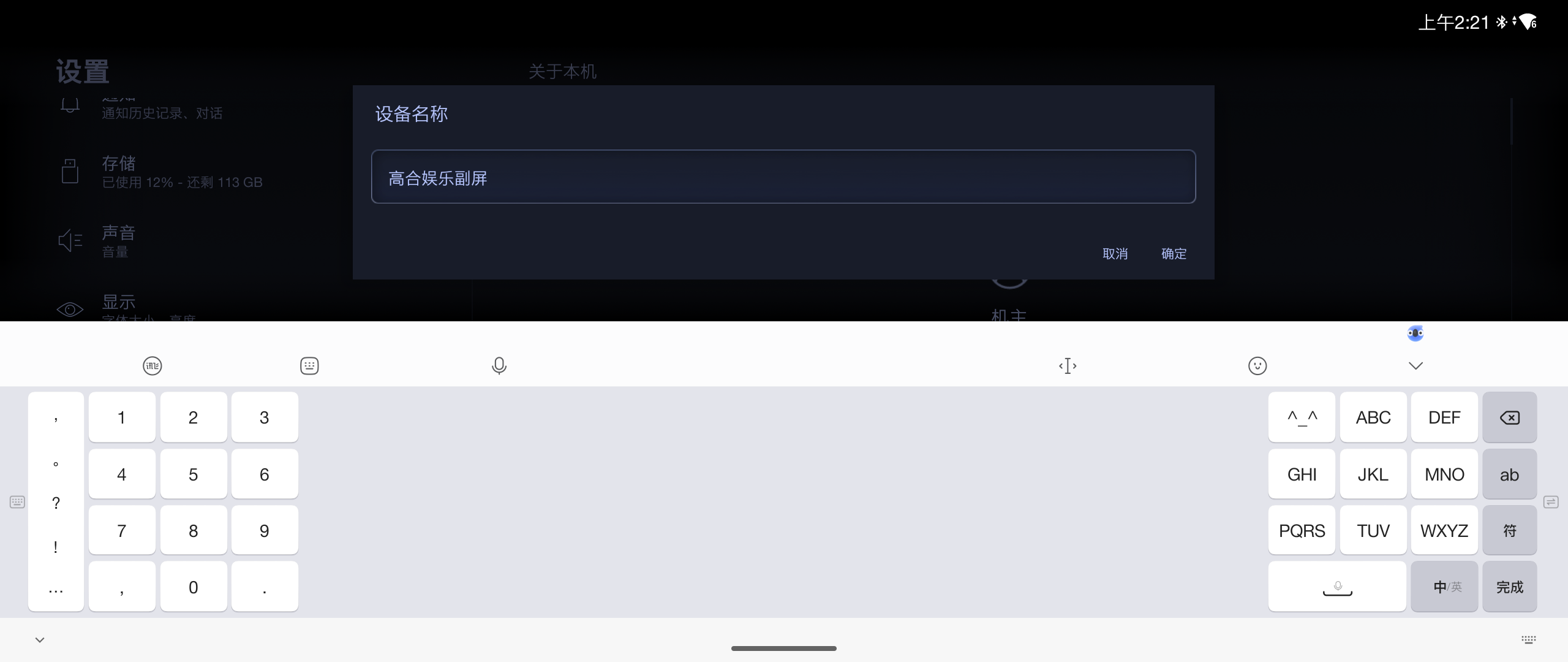

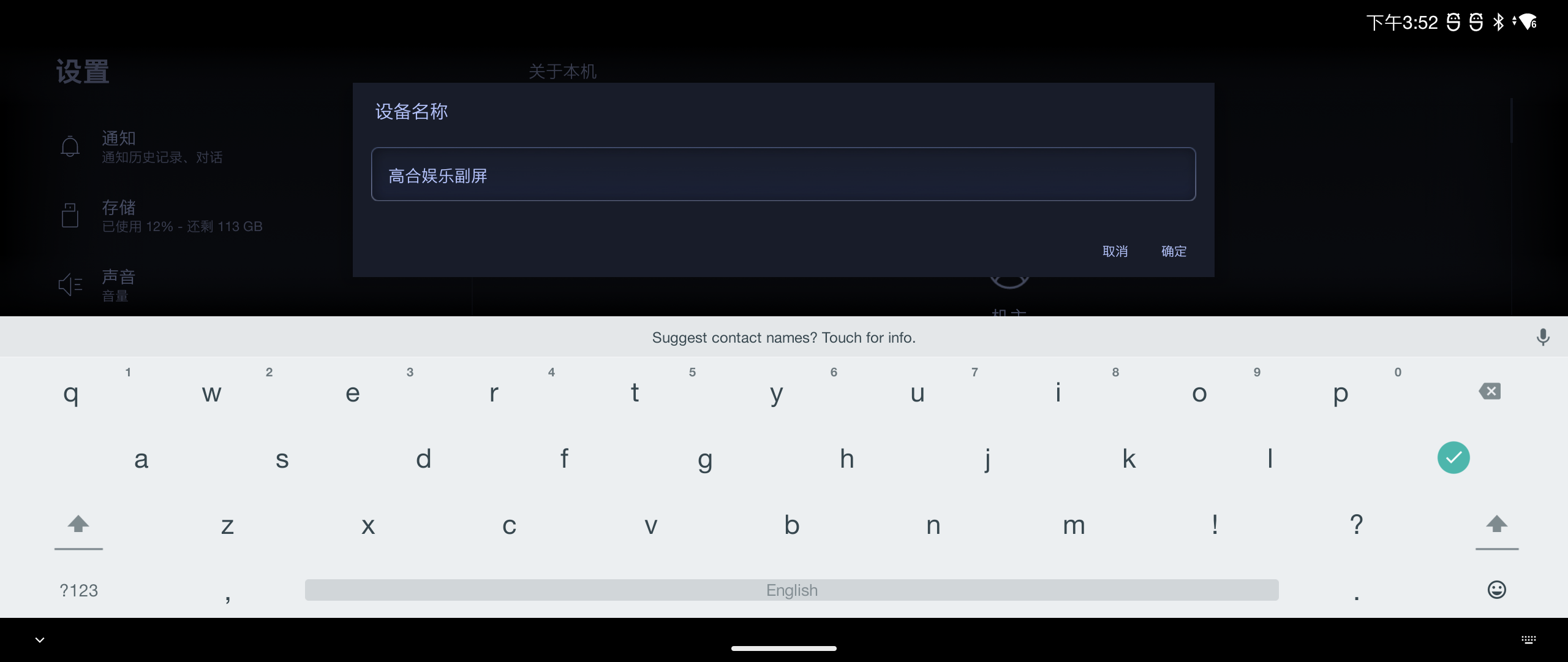

使用了讯飞输入法，自带的原生输入法

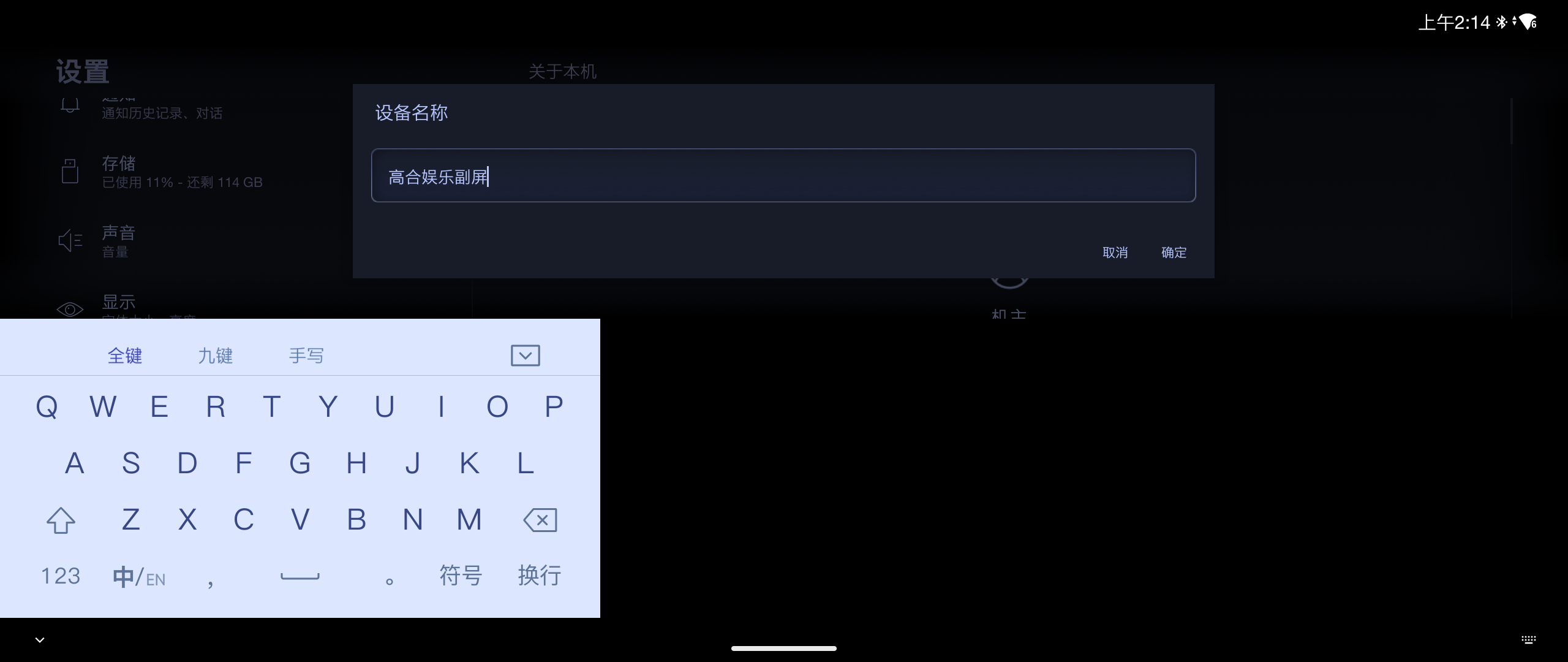

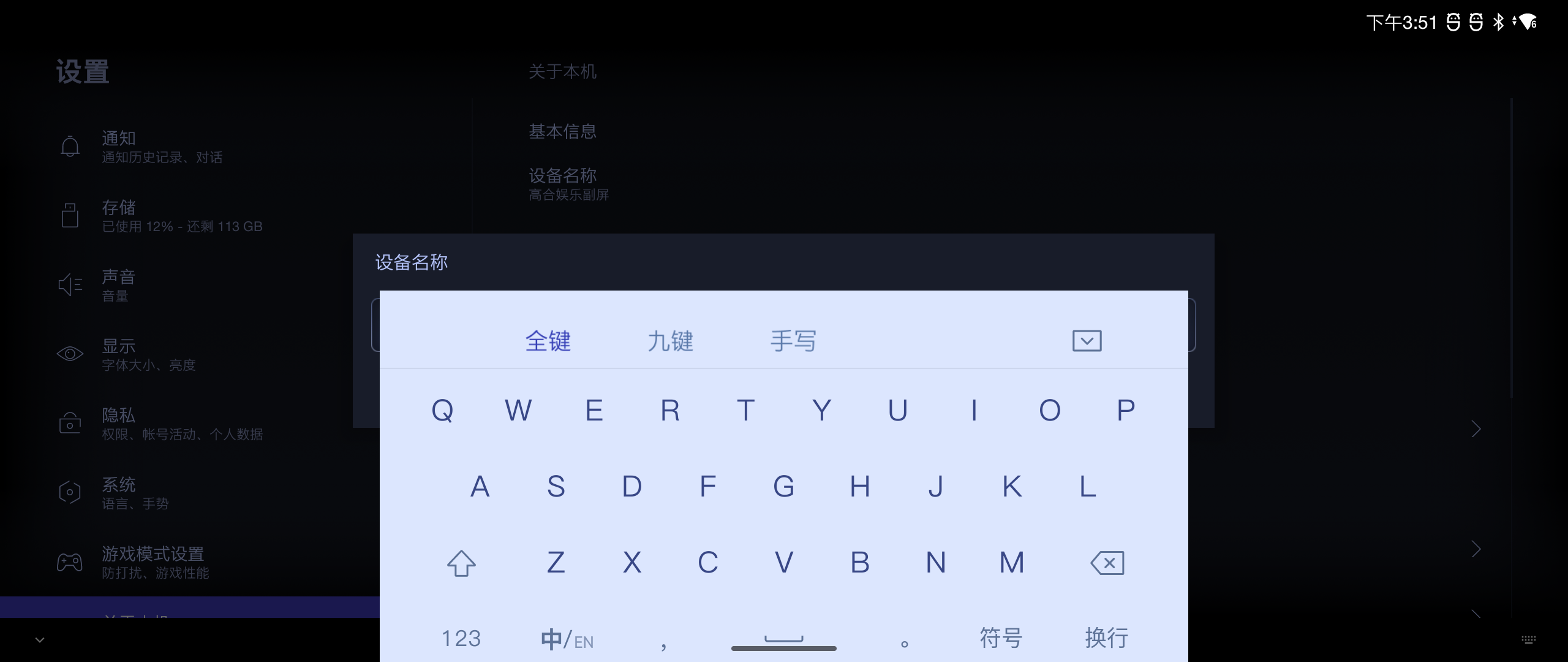

可以发现他们在非蓝牙和蓝牙都是铺满横向的，而百度输入法却是居中或者居左的，可以看出百度输入法在高合设备上表现是有差异的

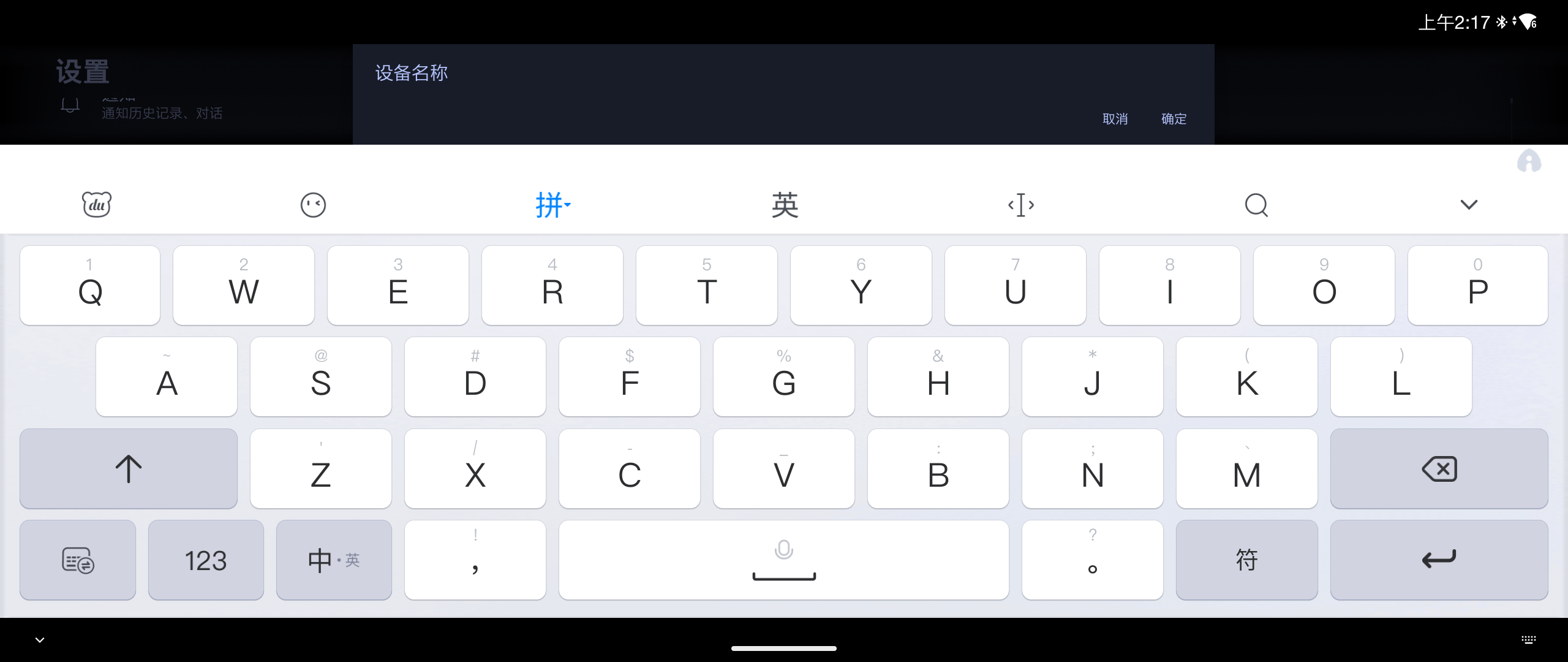

另外在应用商店更新了百度输入法之后，它的表现如下：

可以看出新版本是做了适配的。

综上所述：该问题需要默认安装的百度输入法和搜狗中文输入法，应用自身去做高合大屏的适配，从而可以
避免连接蓝牙和未连接蓝牙键盘时表现出来的差异性。

【】处理策略：
该票需要转百度输入法和搜狗输入法的搭载团队，由应用完成UI和屏幕的适配作业。

Hi 飞哥
■ 分析结果
根据#4中的分析结果，此问题需要客户那边输入法团队做适配
请帮助反馈，十分感谢

■ 下一步计划
反馈给客户的输入法团队适配

输入法问题，请跟进。

看一眼

输入法的UI适配问题，如实作为测试周报反馈项即可，不需要我们修改，源生键盘，以及其他键盘的表现形式都不一样，系统层面无法解决

输入法相关问题

系统层面无法解决，关闭问题单
