Bug #116562

【AF】【EVT1】【OTA】【偶现1次】设备烧机，进入设置，输入*#149#进入副屏调试功能，画面白屏，一段时间后，出现“副屏调试功能已停止运行”

Added by 移动测试一组_CDTS 刘强 over 2 years ago. Updated over 1 year ago.

Status:NEED_INFOStart date:2023-02-27
Priority:NormalDue date:
Assignee:移动测试一组_CDTS 刘强% Done:

100%

Category:CD-FW
Target version:-
Need_Info:TEST Found Version:FlatBuild_HH_MCE_FSE.M.R.user.01.00.0081.C101
Resolution:-- Degrated:No
Severity:Normal Verified Version:
Reproducibility:Occasionally Fixed Version:2023-02-28
Test Type:ST Root cause:没有绑定mcu服务导致退出的时候解绑失败抛出异常。添加逻辑判断在解绑服务时，判断是否有绑定过，如果没有绑定过则不做解绑动作。

Description

【前提条件】
None

【测试步骤】
1. 设备烧机后，进入设置
2. 输入*#149#
3. 查看设备现象

【预期结果】
3 能够正常进入副屏调试功能

【实际结果】

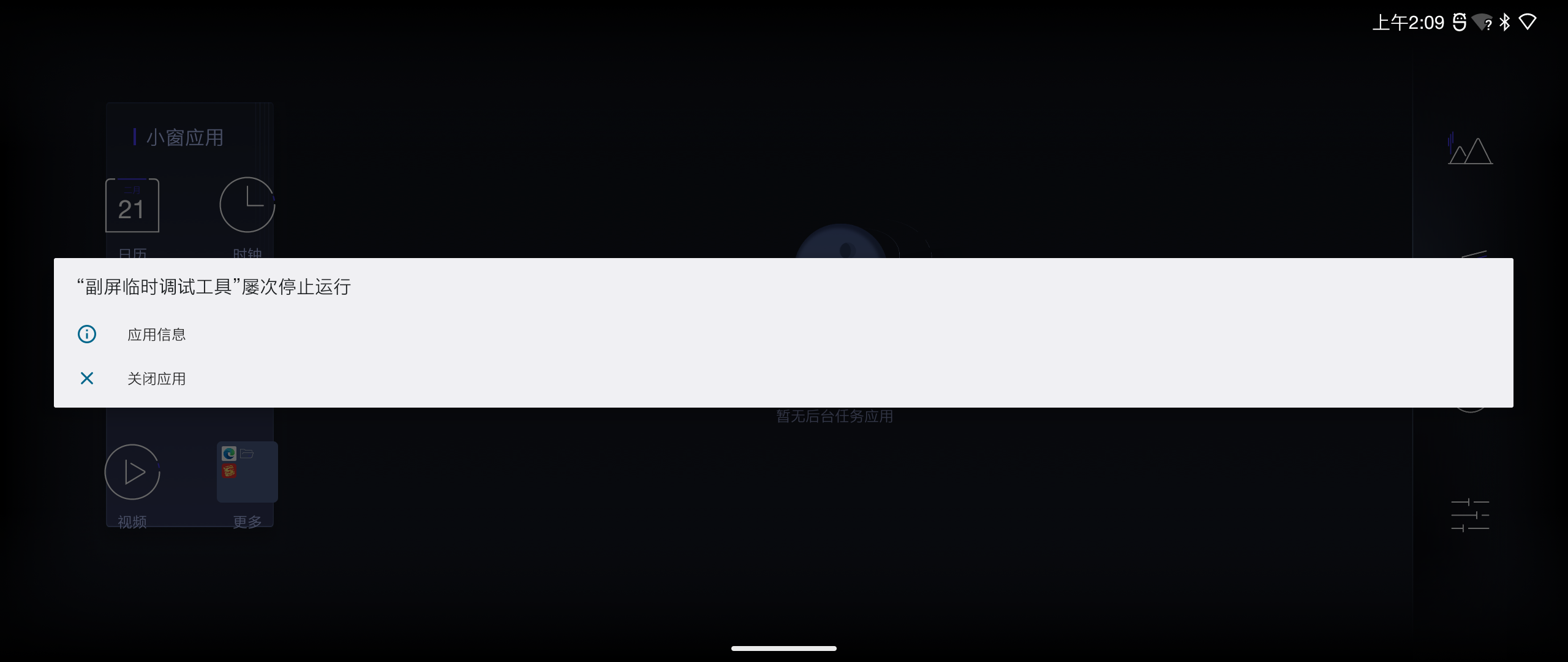

3 偶现一次白屏，一段时间后出现“副屏调试功能已停止运行”

tlog.zip (6.25 MB) 移动测试一组_CDTS 刘强, 2023-02-27 11:10


tlog_sts40x190078_004_0302162320.tar.gz (22.8 MB) CD TEST-方永红, 2023-03-10 11:14

tlog_ea56a99c_000014_0505235728.tar.gz (615 KB) 移动测试一组_CDTS 刘强, 2023-05-06 11:29

20230227-110904

History

#1 Updated by CD TPM-王祥林 over 2 years ago

通过错误日志发现，由于没有绑定mcu服务导致退出的时候解绑失败抛出异常。
02-21 02:08:38.664 4335 4335 E AndroidRuntime: FATAL EXCEPTION: main
02-21 02:08:38.664 4335 4335 E AndroidRuntime: Process: com.thundercomm.mcuupgrade, PID: 4335
02-21 02:08:38.664 4335 4335 E AndroidRuntime: java.lang.RuntimeException: Unable to destroy activity {com.thundercomm.mcuupgrade/com.thundercomm.mcuupgrade.MainActivity}: java.lang.IllegalArgumentException: Service not registered: com.thundercomm.mcuupgrade.MainActivity$1@b18caae
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.app.ActivityThread.performDestroyActivity(ActivityThread.java:5388)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.app.ActivityThread.handleDestroyActivity(ActivityThread.java:5421)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.app.servertransaction.DestroyActivityItem.execute(DestroyActivityItem.java:47)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.app.servertransaction.ActivityTransactionItem.execute(ActivityTransactionItem.java:45)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.app.servertransaction.TransactionExecutor.executeLifecycleState(TransactionExecutor.java:176)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.app.servertransaction.TransactionExecutor.execute(TransactionExecutor.java:97)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.app.ActivityThread$H.handleMessage(ActivityThread.java:2211)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.os.Handler.dispatchMessage(Handler.java:106)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.os.Looper.loopOnce(Looper.java:201)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.os.Looper.loop(Looper.java:288)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.app.ActivityThread.main(ActivityThread.java:7880)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at java.lang.reflect.Method.invoke(Native Method)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:548)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1009)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: Caused by: java.lang.IllegalArgumentException: Service not registered: com.thundercomm.mcuupgrade.MainActivity$1@b18caae
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.app.LoadedApk.forgetServiceDispatcher(LoadedApk.java:1880)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.app.ContextImpl.unbindService(ContextImpl.java:2020)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.content.ContextWrapper.unbindService(ContextWrapper.java:846)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.content.ContextWrapper.unbindService(ContextWrapper.java:846)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at com.thundercomm.mcuupgrade.MainActivity.onDestroy(MainActivity.java:212)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.app.Activity.performDestroy(Activity.java:8341)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.app.Instrumentation.callActivityOnDestroy(Instrumentation.java:1365)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: at android.app.ActivityThread.performDestroyActivity(ActivityThread.java:5375)
02-21 02:08:38.664 4335 4335 E AndroidRuntime: ... 13 more
02-21 02:08:38.665 1506 2045 I am_crash: [4335,0,com.thundercomm.mcuupgrade,818462277,java.lang.IllegalArgumentException,Service not registered:

#2 Updated by CD TPM-王祥林 over 2 years ago

  • Status changed from New to RESOLVED
  • % Done changed from 0 to 100
  • Resolution changed from -- to FIXED
  • Root cause set to 没有绑定mcu服务导致退出的时候解绑失败抛出异常。添加逻辑判断在解绑服务时，判断是否有绑定过，如果没有绑定过则不做解绑动作。

#3 Updated by CD TPM-王祥林 over 2 years ago

  • Assignee changed from CD TPM-王祥林 to 移动测试一组_CDTS 刘强

刘强

请在2.28或者以后的版本验证。

#4 Updated by CD TPM-王祥林 over 2 years ago

  • Degrated changed from -- to No
  • Fixed Version set to 2023-02-28

#5 Updated by 移动测试一组_CDTS 刘强 over 2 years ago

  • Status changed from RESOLVED to VERIFIED

验证版本：0079；0080；0081 三个版本测试10未复现

#6 Updated by 移动测试一组_CDTS 刘强 over 2 years ago

  • Status changed from VERIFIED to CLOSED

#7 Updated by CD TEST-方永红 over 2 years ago

  • File tlog_sts40x190078_004_0302162320.tar.gz added
  • Status changed from CLOSED to New
  • Assignee changed from 移动测试一组_CDTS 刘强 to CD TPM-王祥林
  • Found Version changed from 0076 to FlatBuild_HH_MCE_FSE.M.R.user.01.00.0081.C101

3.10
0081版本再次复现

#8 Updated by CD TPM-王祥林 about 2 years ago

日志里没找到发生问题的原因，可能需要加日志来持续复现和分析。
这个是临时调试apk，正式版本不搭载，暂时不影响使用，先降低优先级。

#9 Updated by 移动测试一组_CDTS 刘强 about 2 years ago

0095-2257 版本再次复现，补充新的日志

#10 Updated by CD TPM-王祥林 about 2 years ago

  • Status changed from New to Pending

非交付功能，偶现不影响使用，暂不处理。

#11 Updated by CD TPM-王祥林 about 2 years ago

  • Status changed from Pending to NEED_INFO

#12 Updated by CDTS_TEST 王成 almost 2 years ago

  • Status changed from NEED_INFO to ASSIGNED

#13 Updated by CD FW 曹覃刚 over 1 year ago

  • Assignee changed from CD TPM-王祥林 to CD FW-程天颖

#14 Updated by CD FW-廖涛 over 1 year ago

  • Assignee changed from CD FW-程天颖 to CD FW-廖涛

#15 Updated by CD FW-廖涛 over 1 year ago

  • Status changed from ASSIGNED to NEED_INFO
  • Assignee changed from CD FW-廖涛 to 移动测试一组_CDTS 刘强
  • Need_Info changed from -- to TEST
  • Resolution changed from FIXED to --

从复现日志 tlog_ea56a99c_000014_0505235728.tar.gz 中没有相关的崩溃信息，无法定位问题，由于问题较久了，不好分析。麻烦测试帮忙复现，若无法复现，麻烦关闭问题，谢谢。
