Bug #117816
【IOVDEV-26132】【VC1】【0072】【台架】【EE环境】【副屏】偶发一次BDCM_PowerMode为local on时，副屏没有亮屏
| Status: | CLOSED | Start date: | 2023-05-08 | |
|---|---|---|---|---|
| Priority: | Normal | Due date: | ||
| Assignee: | CDTS_Test 吴诗雨 | % Done: | 0% | |
| Category: | BSP | |||
| Target version: | - | |||
| Need_Info: | -- | Found Version: | 03.02.0076.C101 | |
| Resolution: | WONTFIX | Degrated: | -- | |
| Severity: | Normal | Verified Version: | ||
| Reproducibility: | Rarely | Fixed Version: | ||
| Test Type: | ST | Root cause: |
Description
【环境信息】EE环境
【问题出现时间】：20230507 14：29
【前提条件】：车机上电（KL30 ON，BDCM_PowerMode=local on），中控和副屏都亮屏可用
【操作步骤】
1. CANoe使用E2D发送BDCM_PowerMode信号为off，停发CGW_NM
2.电源断电再上电
3.只发送CGW_NM（CGW_Active=1 ：active Wakeup ；
CGW_WakeupCGW_IOV_Backbone=1 : Request ）4.等待超过3分钟后，发送信号BDCM_PowerMode=1 ：local on
【实际结果】
中控亮屏，而副屏没有亮屏
【期望结果】
副屏亮屏
【车架号】：
【备注】：
视频地址： https://ofs.human-horizons.com/#/download/index/waoP2WuJa%2BQ%3D
没有亮屏，但WiFi是开启的，可以用adb 连接WiFi截取log
【影响版本】：03.02.0076.C101
【硬件版本号】：/
【是否能恢复】：
14点29分副屏没有亮屏.7z (183 KB)
powermode为local on，副屏没有亮屏.mp4 (9.5 MB)
Powermode为local on时副屏没有亮屏.png (446 KB)
History
#1 Updated by CD TPM-王祥林 about 2 years ago
- File 20230509-150657.png added

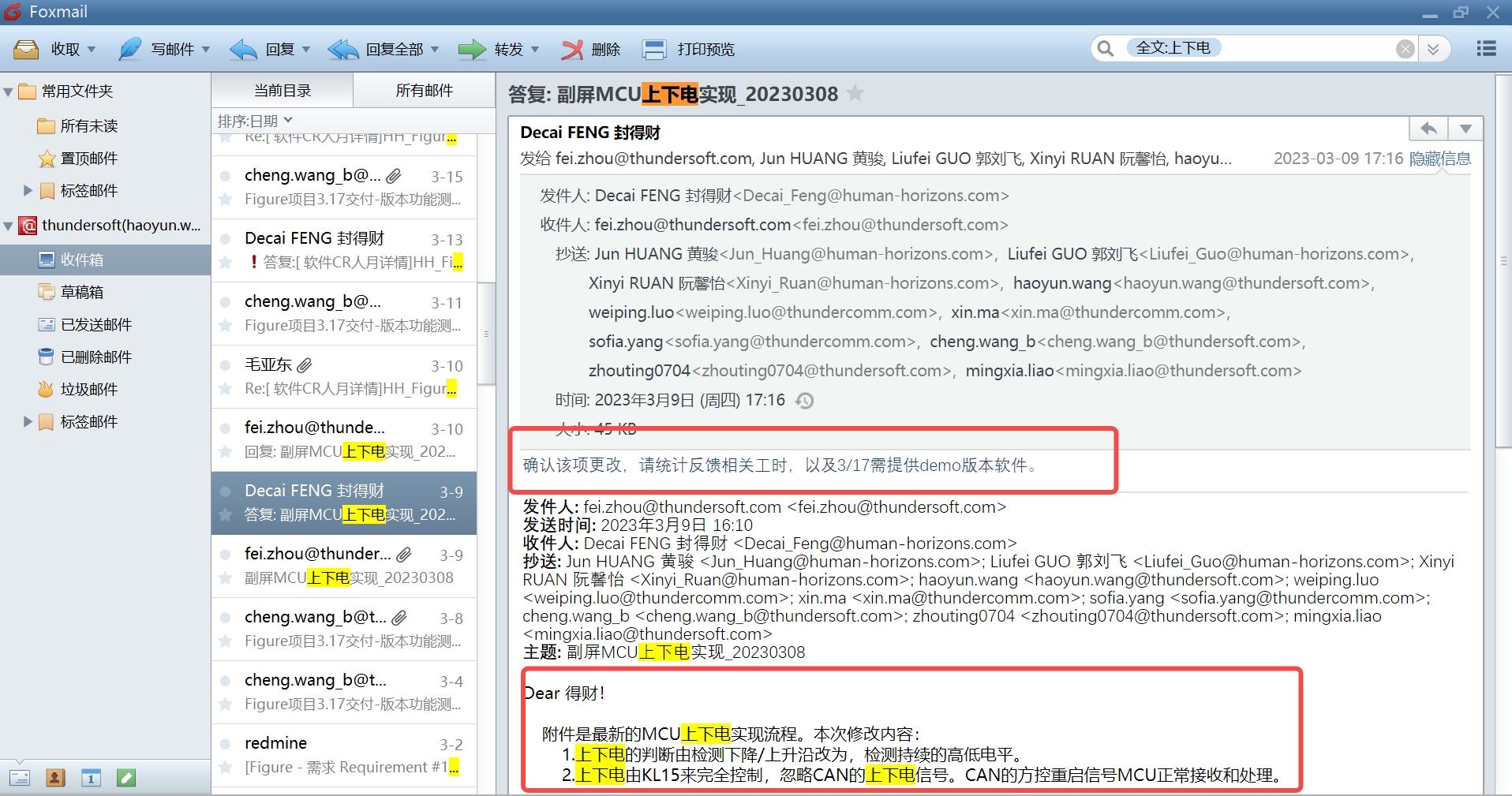

- File 20230509-150845.png added
- Status changed from New to RESOLVED
- Assignee changed from CD TPM-王祥林 to CDTS_Test 吴诗雨
- Resolution changed from -- to WONTFIX

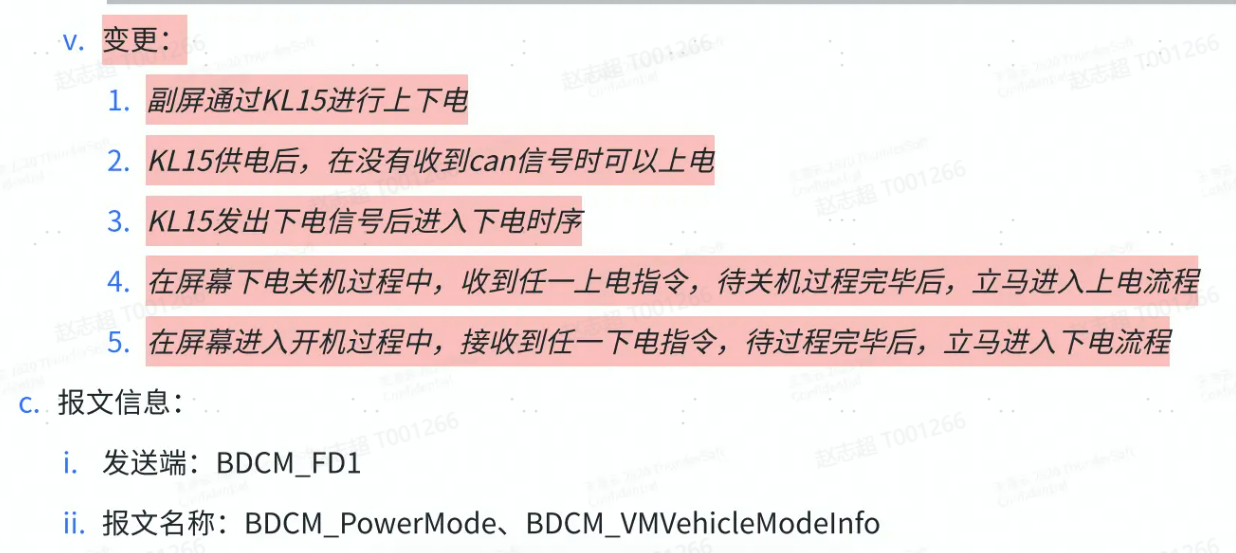

正常行为，副屏不接收CAN的上下电指令，参考附件的图片。
#2 Updated by CDTS_Test 吴诗雨 about 2 years ago
- Status changed from RESOLVED to VERIFIED
#3 Updated by CDTS_Test 吴诗雨 about 2 years ago
- Status changed from VERIFIED to CLOSED
