Bug #117963
【IOV-27900】【VC1】【0095】【台架】【EE环境】【副屏】副屏在打开设置界面搜索框输入时，屏幕右边会自动来回弹出音乐音量设置条
| Status: | CLOSED | Start date: | 2023-05-16 | |
|---|---|---|---|---|
| Priority: | Normal | Due date: | ||
| Assignee: | CDTS_Test 吴诗雨 | % Done: | 0% | |
| Category: | AUDIO-FW | |||
| Target version: | - | |||
| Need_Info: | -- | Found Version: | 01.00.0095.c103 | |
| Resolution: | -- | Degrated: | -- | |
| Severity: | Normal | Verified Version: | ||
| Reproducibility: | Every time | Fixed Version: | ||
| Test Type: | ST | Root cause: |
Description
环境信息】EE环境
【问题出现时间】：20230513 13：55
【前提条件】：副屏上电，网络正常
【操作步骤】
1.点击副屏设置
2.点击上方搜索框
【实际结果】
1.屏幕右边会来回自动弹出音乐音量设置条
【期望结果】
1.搜索框正常进行输入
【备注】：
副屏第103次开机
【应用版本】：
【硬件版本号】：
【中控版本号】：03.02.0076.x101
【副屏版本号】：01.00.0095.c103
飞书20230513-100207.mp4 (1.87 MB)
tlog_iov0201017500006162025411a2212290000000601_000103_0512135615.tar.gz (10.7 MB)
History
#1 Updated by CD FW 曹覃刚 about 2 years ago
- Category changed from CD-FW to 依赖客户及其供应商解决
- Status changed from New to NEED_INFO
- Assignee changed from CD FW 曹覃刚 to CDTS_TEST 王成
Hi 王成
在问题发生时, 收到了中控设置音量的消息
所以显示音量设置条，是由于中控在调整音量，请确认
------------------------
05-12 13:55:31.478 2029 17741 I MicroService: Receive message: SocketMessageBean{businessData='21930', srcService='IDCM_CarAudioService', destService='FSEM_AudioService', messageType='0', uuid='56498310681050', payloadData={"srcService":"IDCM_CarAudioService","dstService":"FSEM_AudioService","methodName":"setVolume","messageType":0,"uuid":56498310681050,"parameters":{"functionInfo":{"IDCM_VolumeValue_Media":"25"}}}}
05-12 13:55:35.688 2029 17751 I MicroService: Receive message: SocketMessageBean{businessData='21930', srcService='IDCM_CarAudioService', destService='FSEM_AudioService', messageType='0', uuid='56502513765892', payloadData={"srcService":"IDCM_CarAudioService","dstService":"FSEM_AudioService","methodName":"setVolume","messageType":0,"uuid":56502513765892,"parameters":{"functionInfo":{"IDCM_VolumeValue_Media":"26"}}}}
05-12 13:55:54.163 2029 17795 I MicroService: Receive message: SocketMessageBean{businessData='21930', srcService='IDCM_CarAudioService', destService='FSEM_AudioService', messageType='0', uuid='56520994461563', payloadData={"srcService":"IDCM_CarAudioService","dstService":"FSEM_AudioService","methodName":"setVolume","messageType":0,"uuid":56520994461563,"parameters":{"functionInfo":{"IDCM_VolumeValue_Media":"25"}}}}
------------------------
#3 Updated by CDTS_TEST 王成 about 2 years ago
- Status changed from RESOLVED to VERIFIED
#4 Updated by CDTS_TEST 王成 about 2 years ago
- Status changed from VERIFIED to CLOSED
#5 Updated by CDTS_TEST 王成 about 2 years ago
- Status changed from CLOSED to New
- Assignee changed from CDTS_TEST 王成 to CD FW 曹覃刚
今天最新出现这个问题抓取的日志地址：https://ofs.human-horizons.com/#/download/index/OCwMIgFLP%2Fs%3D
在连接蓝牙耳机时，断开连接会弹出音量设置条
#6 Updated by CDTS_TEST 王成 about 2 years ago
TaoZhanTao ZHAN 占涛 添加了评论 - 2023/05/18 10:37
128539 05-17 14:20:18.105 1578 1763 I CAR.AUDIO.FSE: onReceiveData receiveData = {"srcService":"FSEM_AudioService","dstService":"IDCM_CarAudioService","messageType":0,"uuid":1684304417449945538,"methodName":"getVolume","parameters":{"functionInfo":
{"IDCM_VolumeValue_Media":"MEDIA"}
}}
128540 05-17 14:20:18.105 1578 1763 I CAR.AUDIO.FSE: receiveDataFromFse methodName = getVolume
128541 05-17 14:20:18.105 1578 1763 I CAR.AUDIO.FSE: receiveDataFromFse volumeType = MEDIA
128544 05-17 14:20:18.105 1578 1763 I CAR.AUDIO.FSE: notifyVolumeValueToFse volume = 39
128545 05-17 14:20:18.105 1578 1763 I CAR.AUDIO.FSE: setDataToFse functionType = 8, parameter = 39
128546 05-17 14:20:18.105 1578 1763 I CAR.AUDIO.FSE: convertToJsonFormat = {"srcService":"IDCM_CarAudioService","dstService":"FSEM_AudioService","methodName":"getVolume","messageType":1,"uuid":1684304417449945538,"parameters":{"functionInfo":
*
{"IDCM_VolumeValue_Media":"39"} *
}}
128770 05-17 14:20:18.707 1578 1763 I CAR.AUDIO.FSE: onReceiveData receiveData = {"srcService":"FSEM_AudioService","dstService":"IDCM_CarAudioService","messageType":0,"uuid":1684304418050689652,"methodName":"isMute","parameters":{"functionInfo":
{"IDCM_VolumeMute_Media":"WHOLE_VEHICLE"}
}}
128772 05-17 14:20:18.707 1578 1763 I CAR.AUDIO.FSE: receiveDataFromFse methodName = isMute
128773 05-17 14:20:18.707 1578 1763 I CAR.AUDIO.FSE: receiveDataFromFse muteType = WHOLE_VEHICLE
128774 05-17 14:20:18.707 1578 1763 I CAR.AUDIO.FSE: notifyMuteStatusToFse muteStatus = false
128775 05-17 14:20:18.707 1578 1763 I CAR.AUDIO.FSE: setDataToFse functionType = 9, parameter = false
128776 05-17 14:20:18.707 1578 1763 I CAR.AUDIO.FSE: convertToJsonFormat = {"srcService":"IDCM_CarAudioService","dstService":"FSEM_AudioService","methodName":"isMute","messageType":1,"uuid":1684304418050689652,"parameters":{"functionInfo":
*
{"IDCM_VolumeMute_Media":"false"} *
}}
根据最新复现的log，主屏没有设置音量给副屏，请副屏调查一下音量条显示的原因
#7 Updated by CD FW 曹覃刚 about 2 years ago
- Category changed from 依赖客户及其供应商解决 to CD-FW
- Status changed from New to ASSIGNED
- Assignee changed from CD FW 曹覃刚 to CD FW-程天颖
#8 Updated by CD FW-程天颖 about 2 years ago
- Assignee changed from CD FW-程天颖 to CD FW-廖涛
#9 Updated by CD FW-廖涛 about 2 years ago
- Assignee changed from CD FW-廖涛 to CDTS_TEST 王成
■ Current conclusion
问题变更，且没有对应日志。
■ Next action
麻烦测试提供下对应的日志。
#10 Updated by CD FW-廖涛 about 2 years ago
- Assignee changed from CDTS_TEST 王成 to CD FW-廖涛
#11 Updated by CD FW-廖涛 about 2 years ago
- Category changed from CD-FW to AUDIO-FW
- Assignee changed from CD FW-廖涛 to Multimedia组-RD3_TSCD 梁卿山
■ Current conclusion
根据日志和现象看，在蓝牙耳机断开的时候，AudioService 会同步中控的音量及状态，然后显示了音量调节 UI。
日志如下：
11-11 00:02:33.139 1895 2056 I Avrcp_ext: storeVolume: Storing stream volume level for device 28:A5:3F:23:F4:A0 : 19
11-11 00:02:33.151 1076 1856 I AS.AudioDeviceBroker: handleBluetoothA2dpActiveDeviceChangeExt state=0 addr=28:A5:3F:23:F4:A0 prof=2 supprNoisy=false vol=-1
11-11 00:02:33.162 1076 1856 I AS.AudioDeviceBroker: msg: setBluetoothA2dpDeviceConnectionStateSuppressNoisyIntent state=0 addr=28:A5:3F:23:F4:A0 prof=2 supprNoisy=false vol=-1
11-11 00:02:33.181 1076 1853 D AS.AudioService: idcm_volume:syncIDCMicroAudioVolume bluetooth disconnected
11-11 00:02:33.181 1076 1853 D AudioIDCMicroNegotiator: idcm_volume:getIDCMicroVolume
11-11 00:02:33.206 1076 2677 D AudioIDCMicroNegotiator: idcm_volume:getIDCMicroVolume volume 10
11-11 00:02:33.207 1076 2677 D AudioIDCMicroNegotiator: idcm_volume:onSetIDCMicroVolume mIsTimeout= false value = 10 isRequested=false
11-11 00:02:33.207 1076 2677 D AS.AudioService: idcm_volume:onSetIDCMicroVolume: 10
11-11 00:02:33.782 1076 1853 D AudioIDCMicroNegotiator: idcm_volume:getIDCMicroAudioMute
11-11 00:02:33.919 1915 2326 I vol.Events: writeEvent active_stream_changed STREAM_MUSIC
11-11 00:02:33.920 1076 2646 D AudioIDCMicroNegotiator: idcm_volume:getIDCMicroAudioMute mute false
11-11 00:02:33.920 1076 2646 D AudioIDCMicroNegotiator: idcm_volume:onSetIDCMicroAudioMute mIsTimeout= false value = mute_off isRequested=false
11-11 00:02:33.920 1076 2646 D AS.AudioService: idcm_volume:onSetIDCMicroAudioMute: mute_off
11-11 00:02:33.982 1915 2326 I vol.Events: writeEvent level_changed STREAM_MUSIC 10
11-11 00:02:34.124 1915 1915 I vol.Events: writeEvent show_dialog volume_changed keyguard=false
11-11 00:02:34.388 1915 2326 I vol.Events: writeEvent level_changed STREAM_SYSTEM 2
11-11 00:02:34.389 1915 2326 I vol.Events: writeEvent level_changed STREAM_VOICE_CALL 2
11-11 00:02:34.393 1915 1915 I vol.Events: writeEvent show_dialog volume_changed keyguard=false
11-11 00:02:37.393 1915 1915 I vol.Events: writeEvent dismiss_dialog timeout
11-11 00:02:37.396 1915 2326 I vol.Events: writeEvent active_stream_changed UNKNOWN_STREAM_-1
■ Next action
麻烦卿山看下怎么处理。
#12 Updated by Multimedia组-RD3_TSCD 梁卿山 about 2 years ago
HI ALL
当前分析：
副屏在蓝牙断开后，会主动获取当前中控的音量，
然后设置到副屏，这时会弹出UI变化，该部分还在咨询客户，是否需要修改。
#13 Updated by Multimedia组-RD3_TSCD 梁卿山 about 2 years ago

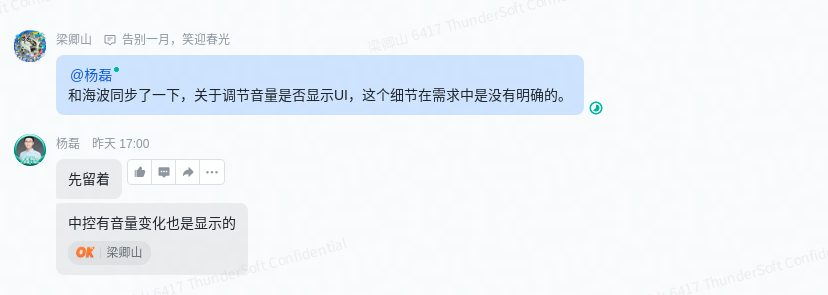

- File 音量UI.png added
- Assignee changed from Multimedia组-RD3_TSCD 梁卿山 to CDTS_Test 吴诗雨
HI 诗雨
该问题和客户确认，音量调节的提示暂时保留。
#14 Updated by CDTS_Test 吴诗雨 about 2 years ago
- Status changed from ASSIGNED to RESOLVED
#15 Updated by CDTS_Test 吴诗雨 about 2 years ago
- Status changed from RESOLVED to VERIFIED
#16 Updated by CDTS_Test 吴诗雨 about 2 years ago
- Status changed from VERIFIED to CLOSED
