Bug #118014: 【IOVDEV-28784】【内部】【VC1】【0095】【台架】【EE环境】【副屏】【蓝牙】副屏蓝牙开启后与蓝牙手柄进行连接配对，蓝牙手柄有震动连接提示，副屏蓝牙设置界面有显示连接蓝牙手柄，但控制中心蓝牙显示未连接，状态栏不显示蓝牙连接图标 - Figure - 中科创达

Bug #118014

【IOVDEV-28784】【内部】【VC1】【0095】【台架】【EE环境】【副屏】【蓝牙】副屏蓝牙开启后与蓝牙手柄进行连接配对，蓝牙手柄有震动连接提示，副屏蓝牙设置界面有显示连接蓝牙手柄，但控制中心蓝牙显示未连接，状态栏不显示蓝牙连接图标

Added by CDTS_Test 吴诗雨 about 2 years ago. Updated about 2 years ago.

Status:

CLOSED

Start date:

2023-05-17

Priority:

High

Due date:

Assignee:

CDTS_Test 吴诗雨

% Done:

Category:

Target version:

Need_Info:

Found Version:

【中控版本号】：03.02.0080.c101
【副屏版本号】：01.00.0095.c103

Resolution:

Degrated:

Severity:

Major

Verified Version:

Reproducibility:

Frequently

Fixed Version:

Test Type:

Root cause:

Description

环境信息】EE环境
【问题出现时间】：20230517 16：35
【前提条件】：副屏上电
【操作步骤】

1.点击开启蓝牙，未连接状态

2.连接蓝牙手柄设备

3.查看控制状态栏蓝牙连接状态图标显示以及控制中心蓝牙图标
【实际结果】
1.状态栏蓝牙图标显示为未连接的状态图标，控制中心显示蓝牙未连接
【期望结果】
1.状态栏蓝牙图标显示为已连接的状态图标，控制中心显示连接蓝牙

【备注】：

第128次开机

偶发事件10次大概一次

日志、视频地址：https://ofs.human-horizons.com/#/download/index/xxpeB8VWkII%3D

【应用版本】：
【硬件版本号】：

【中控版本号】：03.02.0080.c101

【副屏版本号】：01.00.0095.c103

飞书20230517-164507.mp4 (12.9 MB) CDTS_Test 吴诗雨, 2023-05-17 20:14


History

#1 Updated by CDTS_Test 吴诗雨 about 2 years ago

ftp://cdiot@192.168.87.46/Pre_figure/Test_Log/Bug_118014

#2 Updated by CD FW-廖涛 about 2 years ago

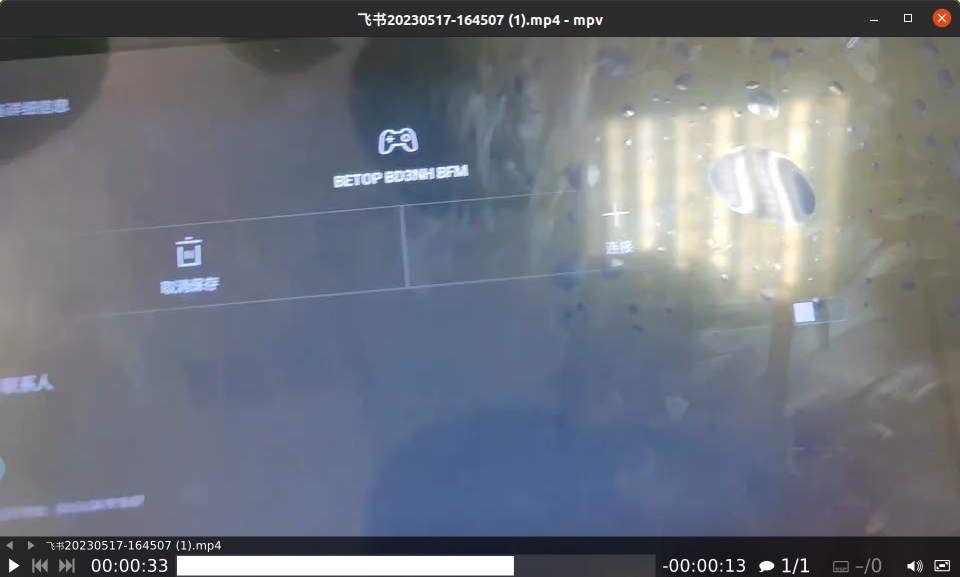

File 中科创达软件股份有限公司20230518-103144.png added
Status changed from New to ASSIGNED
Assignee changed from CD FW-廖涛 to CD LC 陶洪普

Hi，洪普：
麻烦帮忙分析下这个问题，设备未自动连接上。

从视频和日志中看，设备并没有连接上，只是获取到已配对设备的状态。

#3 Updated by CD FW-廖涛 about 2 years ago

Category changed from CD-FW to LC

#4 Updated by CDTS_Test 吴诗雨 about 2 years ago

Priority changed from Normal to High
Severity changed from Normal to Major

#5 Updated by CD LC涂宇 about 2 years ago

从Dump中看并此时没有连接

AdapterProperties
  Name: 高合娱乐副屏1
  Address: F0:74:E4:41:12:FB
  BluetoothClass: null
  ScanMode: SCAN_MODE_CONNECTABLE
  ConnectionState: STATE_DISCONNECTED
  State: ON
  MaxConnectedAudioDevices: 5
  A2dpOffloadEnabled: true
  Discovering: false
  DiscoveryEndMs: 1684312449308
  Bonded devices:
    80:E4:DA:19:15:07 [  LE  ] BETOP BD3NH BFM

05-17 16:34:11.277  1002  8562  8592 I BluetoothBondStateMachine: Bond State Change Intent:80:E4:DA:19:15:07 BOND_BONDING => BOND_BONDED
05-17 16:34:11.277  1002  8562  8592 I BluetoothBondStateMachine: Bonded Completed 80:E4:DA:19:15:07
05-17 16:34:11.277  1002  8562  8592 I BluetoothBondStateMachine: mBondingDevStatus size 0
05-17 16:34:11.277  1002  8562  8592 I BluetoothBondStateMachine: StableState(): Entering Off State

// No profiles. 需要调查一下
05-17 16:34:11.278  1000  3661  3661 D CachedBluetoothDevice: No profiles. Maybe we will connect later for device 80:E4:DA:19:15:07

Next:
Bonded后No profiles. 需要调查一下
