Bug #118796

【VC1】【0110】【实车】【EE环境】【副屏】recent和桌面出现重叠的情况

Added by 物联网测试组_TSCD 王维 about 2 years ago. Updated almost 2 years ago.

Status:CLOSEDStart date:2023-06-15
Priority:NormalDue date:
Assignee:物联网测试组_TSCD 王维% Done:

100%

Category:CD-APP
Target version:-
Need_Info:-- Found Version:中控90
副屏FlatBuild_HH_MCE_FSE.M.R.user.01.00.0110.C105(X105).zip
Resolution:FIXED Degrated:--
Severity:Normal Verified Version:20230725DB
20230726DB
20230727DB
Reproducibility:Occasionally Fixed Version:2023-07-14
Test Type:ST Root cause:编码问题

Description

【环境信息】EE环境
【问题出现时间】：20230615 14:07~08
【前提条件】：整车上电
【操作步骤】
正常打开桌面应用进入recent界面
【实际结果】

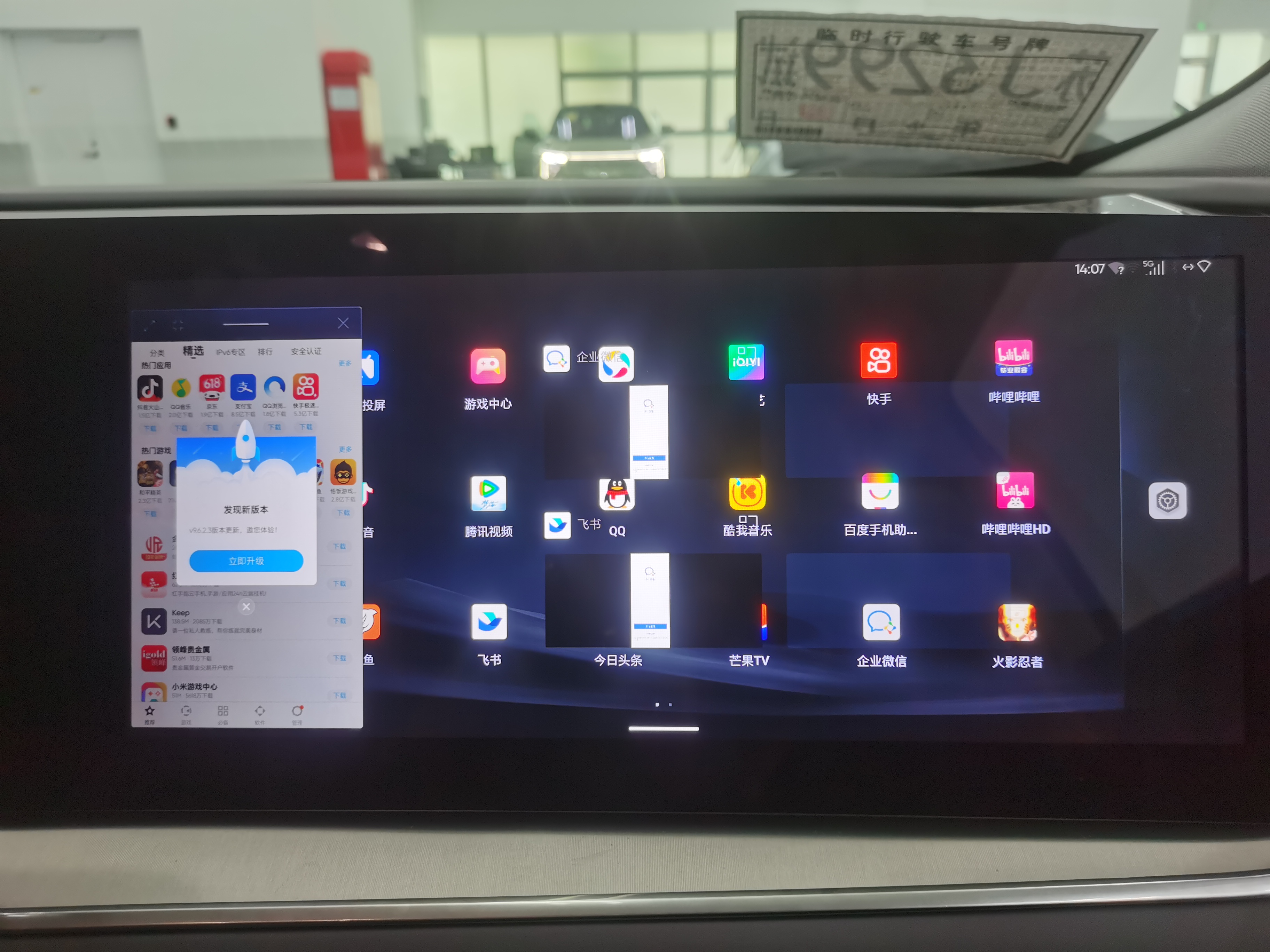

recent和桌面出现重叠的情况
【期望结果】
进入recent显示正常


07101554.txt Magnifier (4.98 MB) CDTS_Test 吴诗雨, 2023-07-10 16:01


Recent%e5%92%8c%e6%a1%8c%e9%9d%a2%e5%87%ba%e7%8e%b0%e9%87%8d%e5%8f%a0%e7%9a%84%e6%83%85%e5%86%b5 20230710-160115

History

#2 Updated by CD FW 曹覃刚 about 2 years ago

  • Category changed from CD-FW to CD-APP

#3 Updated by CD APP-王营 about 2 years ago

  • Status changed from New to ASSIGNED

#4 Updated by CD APP-王宏 about 2 years ago

■ Current conclusion
已提交
■ My analysis
根据操作步骤是进入Recents的过程中出现的。
因此对RecentsView#setContentAlpha() 进行反向调查。
关键代码是在
BaseRecentsViewStateController#setState()
BaseRecentsViewStateController#setStateWithAnimationInternal()

AbsSwipeUpHandler#maybeUpdateRecentsAttachedState()中的recentsAttachedToAppWindow 有关，
因此重点对这几处加入强化日志,等下次该现象出现后，再观察日志是否有明显的问题
■Submit URL
https://dev.thundercomm.com/gerrit/c/general/platform/packages/apps/Launcher3/+/209564

#5 Updated by IoT scm about 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
209529 general/platform/frameworks/base Pre_figure_turbox-c2130c-la1.1-qssi12-dev
Revert AF:Launcher:Fix the abnormal interface display caused by the crash
TC-RID: 1201-0205302
IssueID: TS-R-BUG-118796,IOVDEV-33533
This reverts commit 0bad69b09c7be46741a25f5399d7d6116286ab8d.
Reason for revert: <fixed failed>
Change-Id: I2dec66c2b23321f1a66564acd7c05ec43affb94c

#6 Updated by IoT scm about 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
209564 general/platform/packages/apps/Launcher3 Pre_figure_turbox-c2130c-la1.1-qssi12-dev
AF:Launcher:add log for recent overlap
TC-RID: 1201-0205302
IssueID: TS-R-BUG-118796,IOVDEV-33533
Change-Id: I00f49c3028aedb0c2f2d9f0b03c7ae5f7bff691d

#7 Updated by CD APP-王宏 about 2 years ago

  • Status changed from ASSIGNED to NEED_INFO
  • Assignee changed from CD APP-王宏 to 物联网测试组_TSCD 王维
  • % Done changed from 0 to 10

加入强化日志，请采用6月26日之后的db版本复现，并记录准确的复现时间,以供分析

#8 Updated by IoT scm about 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
209682 general/platform/frameworks/base Pre_figure_turbox-c2130c-la1.1-qssi12-release_sorp
Revert AF:Launcher:Fix the abnormal interface display caused by the crash
TC-RID: 1201-0205302
IssueID: TS-R-BUG-118796,IOVDEV-33533
This reverts commit 0bad69b09c7be46741a25f5399d7d6116286ab8d.
Reason for revert: <fixed failed>
Change-Id: I2dec66c2b23321f1a66564acd7c05ec43affb94c
(cherry picked from commit 2cd1df9dc200162dc5128f8bfcb1bba653e2f140)

#9 Updated by CDTS_Test 吴诗雨 almost 2 years ago

  • File 07101554.txtMagnifier added

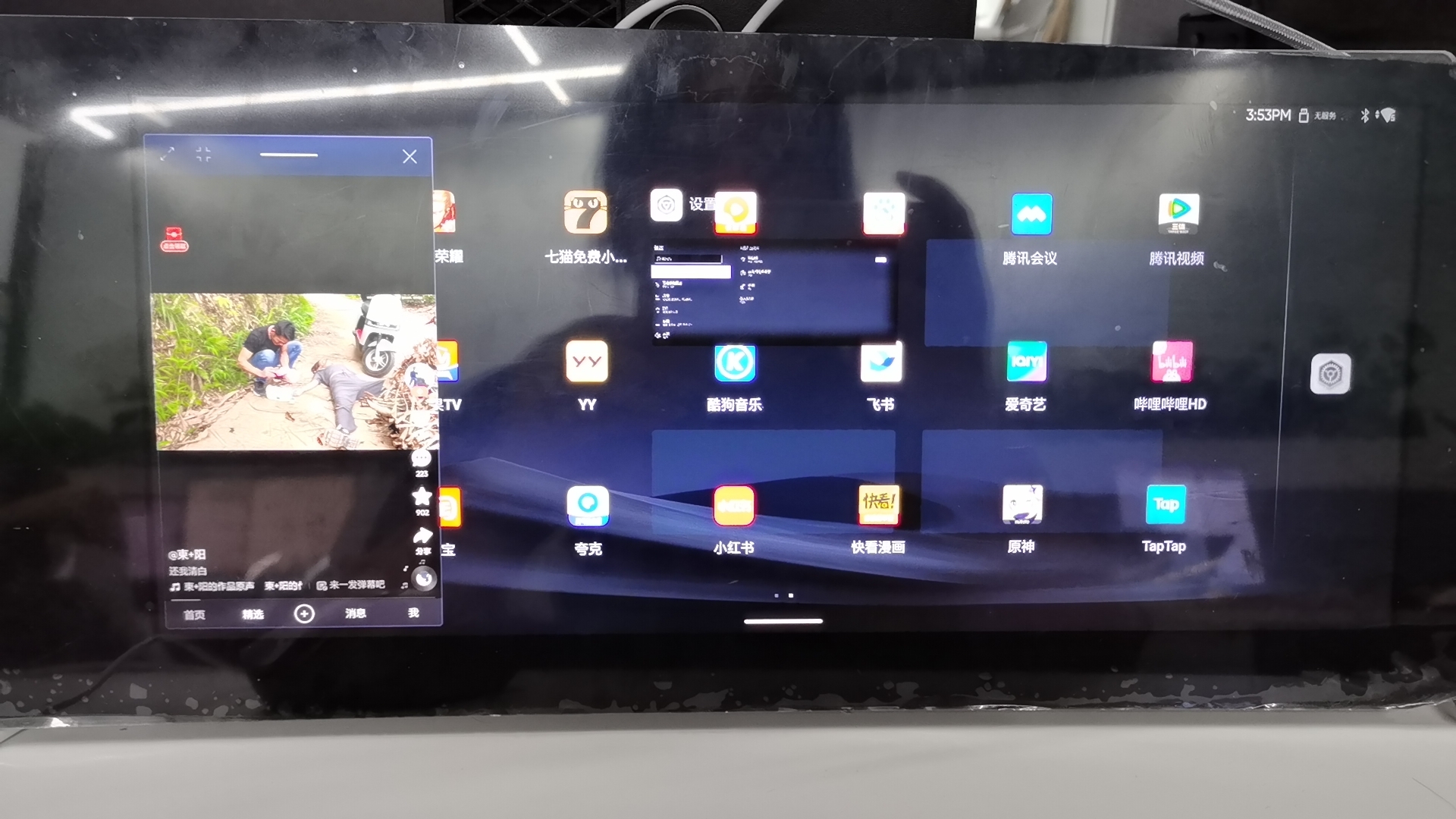

  • File 20230710-160115.jpg added
  • Status changed from NEED_INFO to ASSIGNED
  • Assignee changed from 物联网测试组_TSCD 王维 to CD APP-王宏

0708DB复现，复现步骤：
1、进入任务管理器切换小窗
2、并反复打开全屏应用并进入任务管理器
问题时间为0710-15：54

#10 Updated by CD APP-王宏 almost 2 years ago

  • % Done changed from 10 to 50

■ Current conclusion
已提交
■ My analysis
具体原因是切换consumer的之后，mMotionPauseDetector的pause方法调用了。修复方案是在切换回调里将该回调给取消
■Submit URL
https://dev.thundercomm.com/gerrit/c/general/platform/packages/apps/Launcher3/+/213876

#11 Updated by IoT scm almost 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
213876 general/platform/packages/apps/Launcher3 Pre_figure_turbox-c2130c-la1.1-qssi12-dev
AF:Launcher:Fix Recents overlapping on Home
TC-RID: 0301-0205302
IssueID: TS-R-BUG-118796,IOVDEV-33533
Change-Id: I8c0d8ca0815080eb03b2f6ed9ed6e1b57a759cd7

#12 Updated by CD APP-王宏 almost 2 years ago

  • Status changed from ASSIGNED to RESOLVED
  • Assignee changed from CD APP-王宏 to 物联网测试组_TSCD 王维
  • % Done changed from 50 to 100
  • Resolution changed from -- to FIXED
  • Fixed Version set to 2023-07-14
  • Root cause set to 编码问题

■ Current conclusion
已入库
■ My analysis
未取消飞入动画的回调
■Submit URL
https://dev.thundercomm.com/gerrit/c/general/platform/packages/apps/Launcher3/+/213876

#13 Updated by IoT scm almost 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
214755 general/platform/packages/apps/Launcher3 Pre_figure_turbox-c2130c-la1.1-qssi12-release_sorp
AF:Launcher:add log for recent overlap
TC-RID: 1201-0205302
IssueID: TS-R-BUG-118796,IOVDEV-33533
Change-Id: I00f49c3028aedb0c2f2d9f0b03c7ae5f7bff691d
(cherry picked from commit ea88c5324b5d34bfa23b7635b9aaf75614e208ac)

#14 Updated by IoT scm almost 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
214750 general/platform/packages/apps/Launcher3 Pre_figure_turbox-c2130c-la1.1-qssi12-release_sorp
AF:Launcher:Fix Recents overlapping on Home
TC-RID: 0301-0205302
IssueID: TS-R-BUG-118796,IOVDEV-33533
Change-Id: I8c0d8ca0815080eb03b2f6ed9ed6e1b57a759cd7
(cherry picked from commit 2180056d67d0061026a9fe4dc5e95224ae3cdc68)

#15 Updated by 物联网测试组_TSCD 王维 almost 2 years ago

  • Verified Version set to 20230725DB

复验版本：20230725DB
复验结果：未复现

#16 Updated by 物联网测试组_TSCD 王维 almost 2 years ago

  • Verified Version changed from 20230725DB to 20230725DB 20230726DB 20230727DB

复验版本：20230726DB
复验结果：未复现
复验结果：50次
复验版本：20230727DB
复验结果：未复现
复验结果：50次
连续3个版本未复现bug，故关闭该bug

#17 Updated by 物联网测试组_TSCD 王维 almost 2 years ago

  • Status changed from RESOLVED to VERIFIED

#18 Updated by 物联网测试组_TSCD 王维 almost 2 years ago

  • Status changed from VERIFIED to CLOSED
