Bug #118825
【BSP】【DVT】执行adb reboot recovery 命令之后，界面显示异常
| Status: | CLOSED | Start date: | 2023-06-16 | |
|---|---|---|---|---|
| Priority: | Normal | Due date: | ||
| Assignee: | CDTS_TEST 王成 | % Done: | 0% | |
| Category: | BSP | |||
| Target version: | - | |||
| Need_Info: | -- | Found Version: | 110版本 | |
| Resolution: | WONTFIX | Degrated: | -- | |
| Severity: | Major | Verified Version: | ||
| Reproducibility: | Every time | Fixed Version: | ||
| Test Type: | ST | Root cause: |
Description
【前提条件】：副屏上电
操作步骤：在正常开机的情况下，执行adb reboot recovery
预期结果：设备黑屏显示

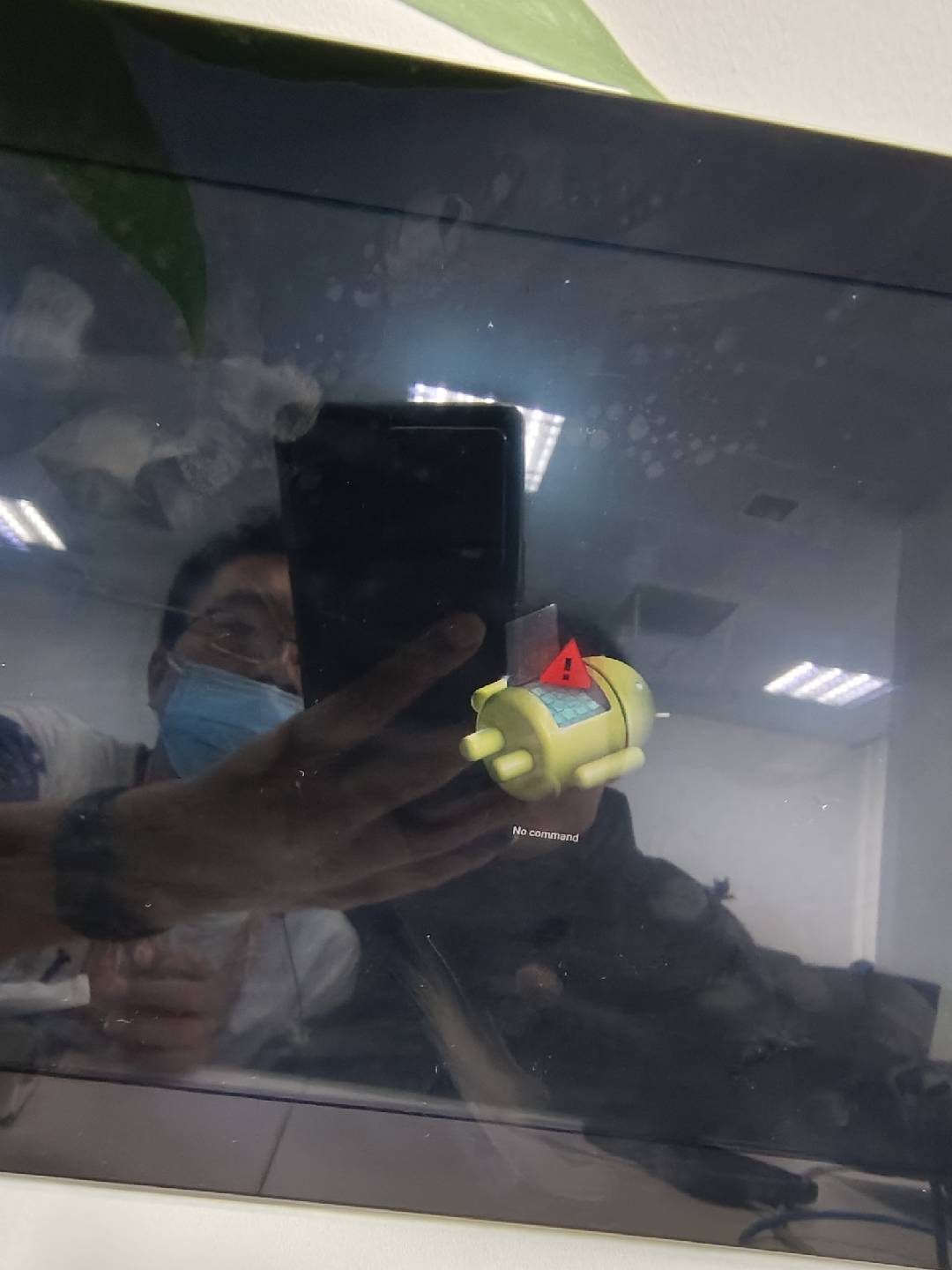

实际结果：会显示一个故障状态的安卓机器人图标
Screenshot from 2023-06-19 13-52-23.png (356 KB)
History
#1 Updated by CD BSP-杜磊 about 2 years ago
- Category changed from BSP to CD-FW
- Status changed from New to ASSIGNED
- Assignee changed from CD BSP-杜磊 to CD FW 曹覃刚
通过二分法排除：
adb reboot recovery
５/29号的版本测试OK
6/01号的版本测试Fail， 此版本主要为AF相关修改
#2 Updated by CD FW 曹覃刚 about 2 years ago
- File Screenshot from 2023-06-19 13-52-23.png added
- Category changed from CD-FW to BSP
- Assignee changed from CD FW 曹覃刚 to CD BSP-杜磊
Hi 杜磊
6/01号的版本测试Fail， 此版本主要为AF相关修改
请确认截图勒，看看changelog, BSP和LC也入了很多代码
#3 Updated by CD BSP-杜磊 about 2 years ago
- Assignee changed from CD BSP-杜磊 to CD TPM-王祥林
FTP:
/Pre_figure/DailyBuild/Pre_figure_turbox-c2130c-la1.1-qssi12-dev/NULL/
如下测试均使用UD版本：
05/30 DB版本, 验证OK
05/31 DB版本，验证OK
06/01 DB版本，验证Fail
BSP: Display相关提交验证：
05/31 UD Flat包 ＋ 06/01 UD boot.img 验证结果：OK
请其他提交相关owner进行排查
#4 Updated by CD TPM-王祥林 about 2 years ago
实际场景不会遇到，降低优先级，后面再处理。
#5 Updated by 移动测试一组_CDTS 刘强 about 2 years ago
- File 20230628-191106.jpg added

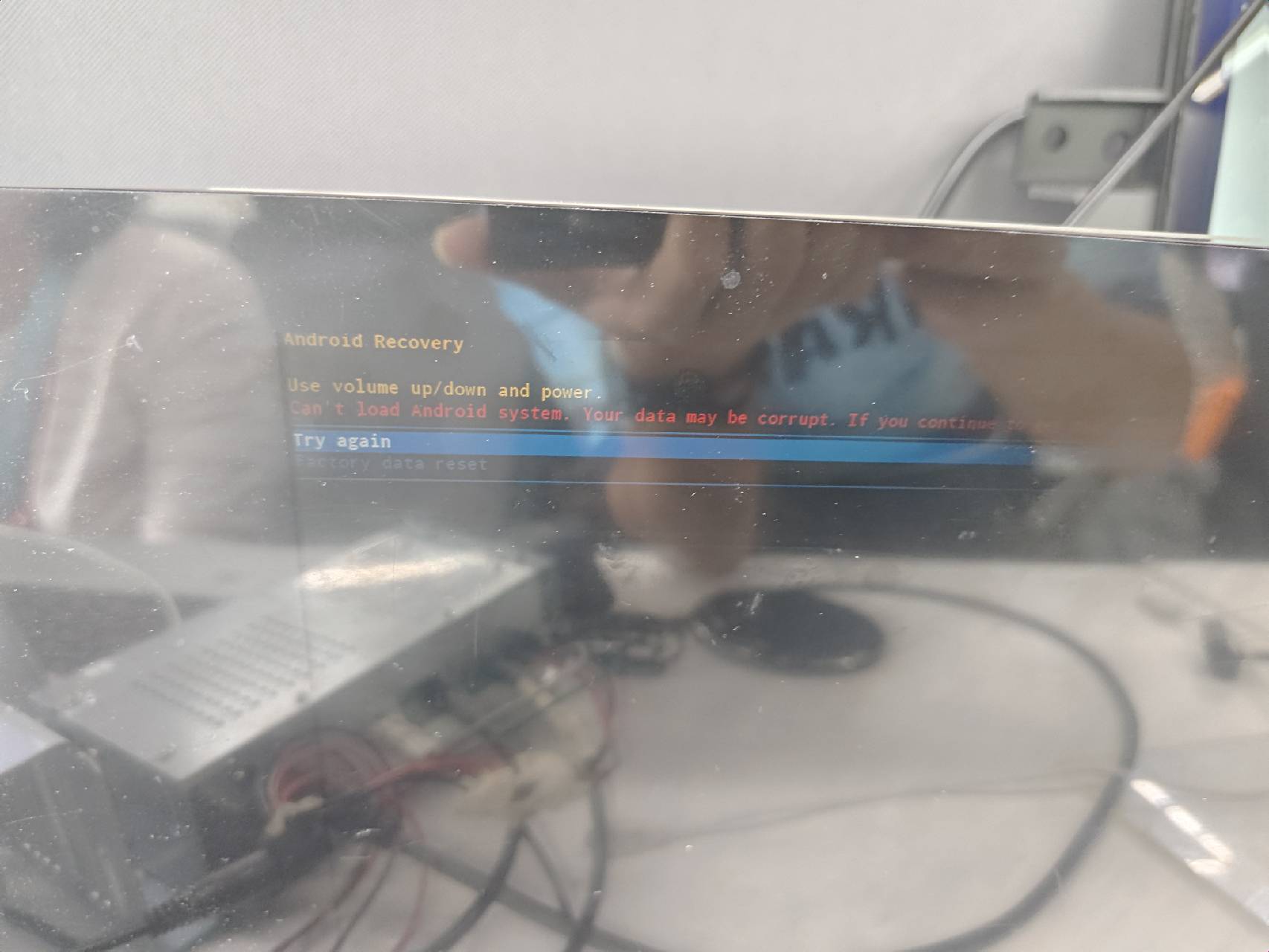

0110-升级到0628 db版本失败后进入recovery复现出现UI界面
#6 Updated by CD TPM-王祥林 almost 2 years ago
- Status changed from ASSIGNED to RESOLVED
- Assignee changed from CD TPM-王祥林 to 移动测试一组_CDTS 刘强
- Resolution changed from -- to WONTFIX
OTA后进入recovery界面的问题已经处理，adb reboot recovery命令之后界面显示异常的问题实际场景不存在，不做处理。
#7 Updated by CD TPM-王祥林 almost 2 years ago
- Assignee changed from 移动测试一组_CDTS 刘强 to CDTS_TEST 王成
#8 Updated by CDTS_TEST 王成 almost 2 years ago
- Status changed from RESOLVED to VERIFIED
#9 Updated by CDTS_TEST 王成 almost 2 years ago
- Status changed from VERIFIED to CLOSED
