Bug #118871
【AF】【EVT3】自动进入屏保5s后息屏，点击唤醒屏幕后右上角菜单不显示
| Status: | CLOSED | Start date: | 2023-06-21 | |
|---|---|---|---|---|
| Priority: | Normal | Due date: | ||
| Assignee: | 物联网测试组_CDTS 唐霞 | % Done: | 0% | |
| Category: | CD-APP | |||
| Target version: | - | |||
| Need_Info: | -- | Found Version: | 01.00.C105_20230621_private_user（621DB版本） | |
| Resolution: | FIXED | Degrated: | -- | |
| Severity: | Normal | Verified Version: | ||
| Reproducibility: | Every time | Fixed Version: | ||
| Test Type: | Release Test | Root cause: | 在需要熄屏的时候,去掉fullscreen的flag,还有将之前隐藏的systembar显示出来 |
Description
【测试步骤】

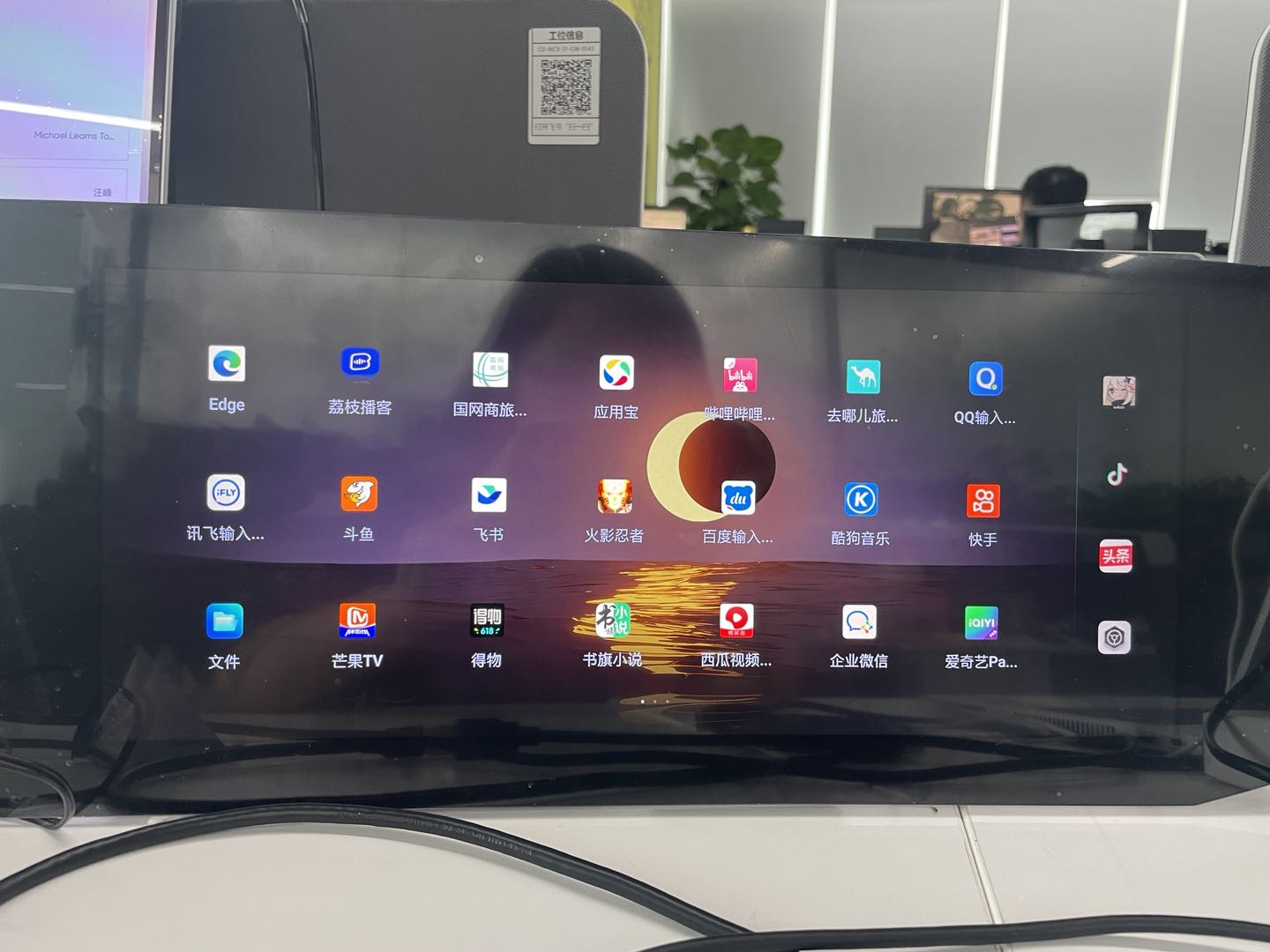

在桌面不操作，进入屏保5s后自动息屏，息屏后点击屏幕
【预期结果】
唤醒屏幕，桌面应用图标菜单栏显示正常
【测试结果】
右上角菜单栏未显示，下拉后显示正常
History
#1 Updated by CD FW 曹覃刚 about 2 years ago
- Category changed from CD-FW to CD-APP
- Status changed from New to ASSIGNED
- Assignee changed from CD FW 曹覃刚 to CD APP-王营
#2 Updated by CD APP-王营 about 2 years ago
【状态】
分析中
【分析】
屏保应用为全屏应用，启动屏保后5秒自动息屏，此时根据Log分析已经退出屏保。
06-24 21:17:29.544 6643 6643 V DreamService[CustomDream]: After dream started 5 seconds we close the screen
06-24 21:17:29.554 1062 1663 I DreamManagerService: Gently waking up from dream.
06-24 21:17:29.557 1062 1185 I DreamManagerService: Performing gentle wake from dream.
06-24 21:17:29.689 6643 6643 E DreamActivity: onDestroy show statusbar
06-24 21:17:29.690 1062 2184 D DreamManagerService: Dream finished: android.os.Binder@1a901cb, immediate=true
06-24 21:17:29.690 1062 2184 I DreamManagerService: Leaving dreamland.
06-24 21:17:29.702 1062 1185 I DreamManagerService: Performing gentle wake from dream.
06-24 21:17:29.702 1062 1185 I DreamController: Stopping dream: name=ComponentInfo{com.thundercomm.screensaver/com.thundercomm.screensaver.service.CustomDream}, isTest=false, canDoze=false, userId=0, reason='finished self'(from 'requested stopDream')
06-24 21:17:29.735 1062 2184 W InputManager-JNI: Input channel object 'ead263d com.thundercomm.screensaver/android.service.dreams.DreamActivity (client)' was disposed without first being removed with the input manager!
尝试在DreamActivity的onDestroy方法中重新显示状态栏，此方案未生效。
【下一步】
尝试在Launcher界面onResume时进行状态栏的显示。
#3 Updated by CD APP-王营 about 2 years ago
- Assignee changed from CD APP-王营 to CD APP-王宏
【分析】
1.此问题不仅在Launcher界面会出现状态栏不显示的情况，在其他带有状态栏的应用界面启动屏保，然后息屏，同样会出现状态栏不显示的问题，所以在Launcher中调出状态栏不可行。
【下一步】
考虑以下几种方案：
1、由于调用息屏方法时，DreamService会先destroy，考虑在DreamService的onDestroy()方法中先显示状态栏，再息屏。
2、参考控制中心的息屏方法，当前使用的是PowerManager.gotoSleep(),控制中心直接息屏不会引起状态栏消失，对比两种方法有何差异。
3、在执行gotoSleep()之前显示状态栏，需调试此方案是否会有状态栏闪烁现象。
结合以上方案尝试是否可以解决此问题
#4 Updated by CD APP-王宏 about 2 years ago
■ Current conclusion
已提交
■ My analysis
根据现象，
1.进入屏保后，点击退出，现象正常
2.息屏后返回，现象不正常
得出结论，只要在息屏之前退出屏保即可解决
■Submit URL
https://dev.thundercomm.com/gerrit/c/general/platform/frameworks/base/+/211973
#5 Updated by CD APP-王宏 about 2 years ago
■ Current conclusion
分析中
■ My analysis
因为昨天的提交会有轻微的页面闪动，所以今天还没有入库；
现在排除了设置为全屏的影响；
根据现象应该是在应用息屏后，状态栏的改变没有更新，
但是目前还没有排查到具体的位置
■Next Action
继续排查
#6 Updated by CD APP-王宏 almost 2 years ago
■ Current conclusion
分析中
■ My analysis
CollapsedStatusBarFragment 中加日志，
发现出现异常时mSystemIconArea的透明度，位置，大小，Visibility,TranslationY,TranslationX ，isShown(),getChildCount ==3 ,且内部的View的Visibility,透明度也是正常的
■Next Action
继续排查
#7 Updated by CD FW 曹覃刚 almost 2 years ago
- Assignee changed from CD APP-王宏 to CD FW-鲁凯峰
#8 Updated by IoT scm almost 2 years ago
| ID | Project | Branch | Uploader |
| 212537 | general/platform/frameworks/base | Pre_figure_turbox-c2130c-la1.1-qssi12-dev | lukf0916@thundersoft.com |
| AF: ScreenSaver: clear fullscreen status when wakeup TC-RID: 1201-0300601 IssueID: TS-R-BUG-118871 Change-Id: Icfee987ba927b20cec0209e1f75fb535414dc9c2 |
|||
#9 Updated by IoT scm almost 2 years ago
| ID | Project | Branch | Uploader |
| 212789 | general/platform/frameworks/base | Pre_figure_turbox-c2130c-la1.1-qssi12-release_sorp | wangxl0510@thundersoft.com |
| AF: ScreenSaver: clear fullscreen status when wakeup TC-RID: 1201-0300601 IssueID: TS-R-BUG-118871 Change-Id: Icfee987ba927b20cec0209e1f75fb535414dc9c2 (cherry picked from commit 614746bbe28f250c4dd821e60c3c2131e9968402) |
|||
#10 Updated by CD FW-鲁凯峰 almost 2 years ago
- Status changed from ASSIGNED to RESOLVED
- Assignee changed from CD FW-鲁凯峰 to 物联网测试组_CDTS 唐霞
- Resolution changed from -- to FIXED
- Root cause set to 在需要熄屏的时候,去掉fullscreen的flag,还有将之前隐藏的systembar显示出来
■ Current conclusion
问题已经解决
■ My analysis
在需要熄屏的时候,去掉fullscreen的flag,还有将之前隐藏的systembar显示出来
■ Submit URL
https://dev.thundercomm.com/gerrit/c/general/platform/frameworks/base/+/212537
#11 Updated by 物联网测试组_CDTS 唐霞 almost 2 years ago
- Status changed from RESOLVED to VERIFIED
验证通过，关闭问题单
验证版本：120release（707）
#12 Updated by 物联网测试组_CDTS 唐霞 almost 2 years ago
- Status changed from VERIFIED to CLOSED
