Bug #119011

测试 Test-IT #111062: V3.0功能测试

测试 Test-IT #111067: AF-V3.0--Launcher/SystemUI-任务管理器

【AF】【EVT】【任务管理器】打开一个全屏应用至于后台，进入多任务管理器选择小窗应用打开，重复操作，出现异常显示，且卡住无法退出

Added by CDTS_Test 吴诗雨 almost 2 years ago. Updated almost 2 years ago.

Status:CLOSEDStart date:2023-07-10
Priority:NormalDue date:
Assignee:CD TEST-方永红% Done:

0%

Category:CD-APP
Target version:-
Need_Info:-- Found Version:0708DB
Resolution:DUPLICATE Degrated:--
Severity:Normal Verified Version:
Reproducibility:Occasionally Fixed Version:
Test Type:ST Root cause:

Description

前提条件】
1、设备已开机
2、打开一个全屏应用至于后台

【测试步骤】
1、进入多任务管理器
2、选择小窗应用打开
3、重复以上步骤

【预期结果】
3、正常显示

【实际结果】
3、显示异常，且卡住无法退出（上划、左滑、右滑均无法退出，下划可以进入控制中心，一段时间后恢复正常）

【问题时间】0701-15：06

07101506.txt Magnifier (4.42 MB) CDTS_Test 吴诗雨, 2023-07-10 15:44

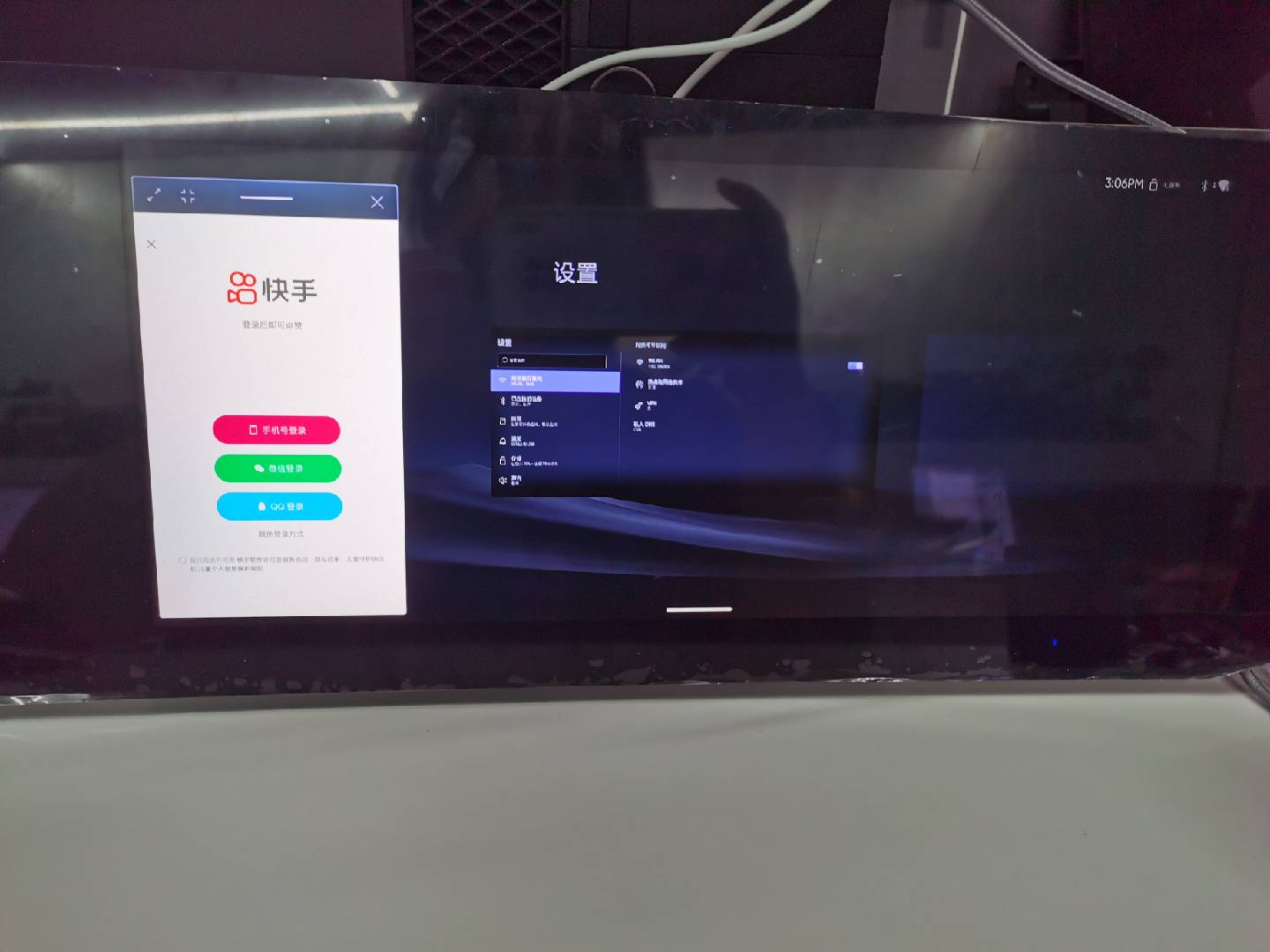

20230710-154242

History

#2 Updated by CDTS_Test 吴诗雨 almost 2 years ago

  • Description updated (diff)

#3 Updated by CDTS_Test 吴诗雨 almost 2 years ago

  • Description updated (diff)

#4 Updated by CD APP-王宏 almost 2 years ago

07101506.txt:20191:07-10 15:05:28.594 2635 2635 D TouchInteractionService: onInputEvent: ACTION_DOWN: OtherActivityInputConsumer
07101506.txt:20640:07-10 15:05:29.001 2635 2635 D TouchInteractionService: onInputEvent: ACTION_UP/ACTION_CANCEL: ResetGestureInputConsumer

OtherActivityInputConsumer 未执行完毕就切换了consumer，接着调查

#5 Updated by CD APP-王宏 almost 2 years ago

  • Status changed from New to ASSIGNED

#6 Updated by CD APP-王宏 almost 2 years ago

根据最近调查，问题出现时
OtherActivityInputConsumer
onInteractionGestureFinished()未执行，继续追查逻辑

AbsSwipeUpHandler

private void finishCurrentTransitionToRecents() {
        if (ENABLE_QUICKSTEP_LIVE_TILE.get()) {
            mStateCallback.setStateOnUiThread(STATE_CURRENT_TASK_FINISHED);
            if (mRecentsAnimationController != null) {
                mRecentsAnimationController.detachNavigationBarFromApp(true);
            }
        } else if (!hasTargets() || mRecentsAnimationController  null) {
            // If there are no targets or the animation not started, then there is nothing to finish
            mStateCallback.setStateOnUiThread(STATE_CURRENT_TASK_FINISHED);
        } else {
            mRecentsAnimationController.finish(true /* toRecents */,
                    () -> mStateCallback.setStateOnUiThread(STATE_CURRENT_TASK_FINISHED));///这个回调没执行
        }
        ActiveGestureLog.INSTANCE.addLog("finishRecentsAnimation", true);
    }
private void finishCurrentTransitionToHome() {
        if (!hasTargets() || mRecentsAnimationController  null) {
            // If there are no targets or the animation not started, then there is nothing to finish
            mStateCallback.setStateOnUiThread(STATE_CURRENT_TASK_FINISHED);
        } else {
            maybeFinishSwipePipToHome();
            finishRecentsControllerToHome(
                    () -> mStateCallback.setStateOnUiThread(STATE_CURRENT_TASK_FINISHED));///这个回调没执行
        }
        ActiveGestureLog.INSTANCE.addLog("finishRecentsAnimation", true);
        doLogGesture(HOME, mRecentsView == null ? null : mRecentsView.getCurrentPageTaskView());
    }

推测要么是这整个方法没执行，或者就只是回调未执行。

下一步：
手动复现，继续加日志调查

#7 Updated by CDTS_Test 吴诗雨 almost 2 years ago

当前复现步骤：
1、打开一个强制小窗应用
2、打开设置
3、上划进入recent界面
4、点击设置
反复3、4步

#8 Updated by CD APP-王宏 almost 2 years ago

//卡住之前的关键日志
07-28 15:16:49.470 10967 10967 D TouchInteractionService: onInputEvent: ACTION_UP/ACTION_CANCEL: OtherActivityInputConsumer
07-28 15:16:49.470 10967 10967 D AbsSwipeUpHandler: onGestureEnded.
07-28 15:16:49.470 10967 10967 D MultiStateCallback: [39666865] Adding [STATE_GESTURE_COMPLETED (512)] to [STATE_LAUNCHER_PRESENT, STATE_LAUNCHER_STARTED, STATE_LAUNCHER_DRAWN, STATE_APP_CONTROLLER_RECEIVED, STATE_GESTURE_STARTED (143)]
07-28 15:16:49.470 1062 1187 I EventSequenceValidator: Transition from INTENT_FAILED to INTENT_STARTED
07-28 15:16:49.470 10967 10967 D MultiStateCallback: [231766765] Adding [STATE_END_TARGET_SET (1)] to [STATE_RECENTS_ANIMATION_INITIALIZED, STATE_RECENTS_ANIMATION_STARTED, STATE_RECENTS_ANIMATION_FINISHED, STATE_RECENTS_ANIMATION_ENDED (108)]
07-28 15:16:49.470 1062 1203 D CompatibilityChangeReporter: Compat change id reported: 143937733; UID 10142; state: DISABLED
07-28 15:16:49.470 10967 10967 D OrientationTouchTransformer: clearing all regions except rotation: 0
07-28 15:16:49.470 1062 1187 I EventSequenceValidator: inc AccIntentStartedEvents to 1
07-28 15:16:49.470 10967 10967 W OrientationEventListener: Cannot detect sensors. Invalid disable
07-28 15:16:49.470 10967 10967 D MultiStateCallback: [231766765] Adding [STATE_RECENTS_SCROLLING_FINISHED (256)] to [STATE_END_TARGET_SET, STATE_RECENTS_ANIMATION_INITIALIZED, STATE_RECENTS_ANIMATION_STARTED, STATE_RECENTS_ANIMATION_FINISHED, STATE_RECENTS_ANIMATION_ENDED (109)]
07-28 15:16:49.470 10967 10967 D AbsSwipeUpHandler: animateToProgress: go to animateToProgressInternal, endTarget=HOME
07-28 15:16:49.471 10967 10967 D AbsSwipeUpHandler: Recents: action=com.android.quickstep.AbsSwipeUpHandler$$ExternalSyntheticLambda35@a285ef6 Callbacks=null
//下一个手势开始了
07-28 15:16:49.686 10967 10967 D TouchInteractionService: onInputEvent mUncheckedConsumer = com.android.quickstep.inputconsumers.OverviewInputConsumer@91113d0
07-28 15:16:49.686 10967 10967 D OrientationTouchTransformer: touchInValidSwipeRegions 940.0,1069.0 in RectF(0.0, 1032.0, 2560.0, 1080.0) rotation: 0 this: com.android.quickstep.OrientationTouchTransformer@2d02d62
07-28 15:16:49.686 10967 10967 D TouchInteractionService: onInputEvent: isOneHandedModeActive=false,isInSwipeUpTouchRegion=true,isUserUnlocked=true,isFullyGesturalNavMode=true,canTriggerAssistantAction=false,canTriggerOneHandedAction=false
07-28 15:16:49.686 10967 10967 D TouchInteractionService: onInputEvent: ACTION_DOWN: OverviewInputConsumer

#9 Updated by CD APP-王宏 almost 2 years ago

  • Status changed from ASSIGNED to NEED_INFO
  • Assignee changed from CD APP-王宏 to CD TEST-方永红

#10 Updated by CD TPM-王祥林 almost 2 years ago

  • Status changed from NEED_INFO to RESOLVED
  • Resolution changed from -- to DUPLICATE

在jira上跟踪，内部票关闭。

#11 Updated by CDTS_TEST 王成 almost 2 years ago

  • Status changed from RESOLVED to VERIFIED

IOVDEV-36522 多个版本未复现已关闭

#12 Updated by CDTS_TEST 王成 almost 2 years ago

  • Status changed from VERIFIED to CLOSED
