Bug #111220
【Figure】【EVT】【SI】VDD18_OUT上电至0.37V时有433us平台
| Status: | CLOSED | Start date: | 2022-08-11 | |
|---|---|---|---|---|
| Priority: | High | Due date: | ||
| Assignee: | 项目二组_SD3 曾小文 | % Done: | 0% | |
| Category: | EE | |||
| Target version: | - | |||
| Need_Info: | -- | Found Version: | 2022.08.07 | |
| Resolution: | -- | Degrated: | -- | |
| Severity: | Major | Verified Version: | ||
| Reproducibility: | Every time | Fixed Version: | ||
| Test Type: | Release Test | Root cause: |
Description
VDD18_OUT上电至0.37V时有433us平台

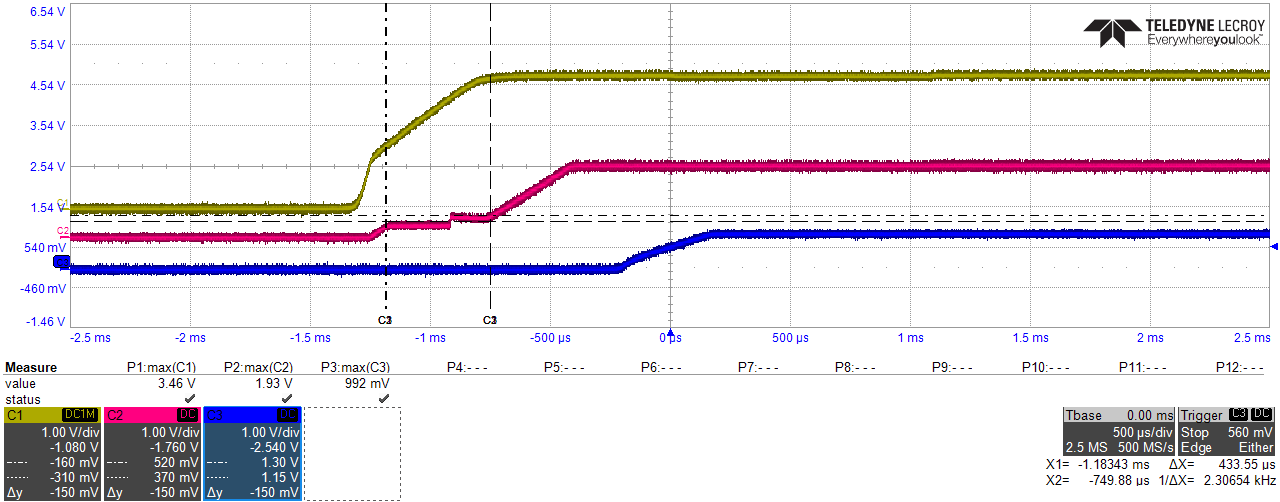

REGIN-CH1,VDD18 OUT-CH2,DVDD OUT-CH3 pingtai.png (62.8 KB)

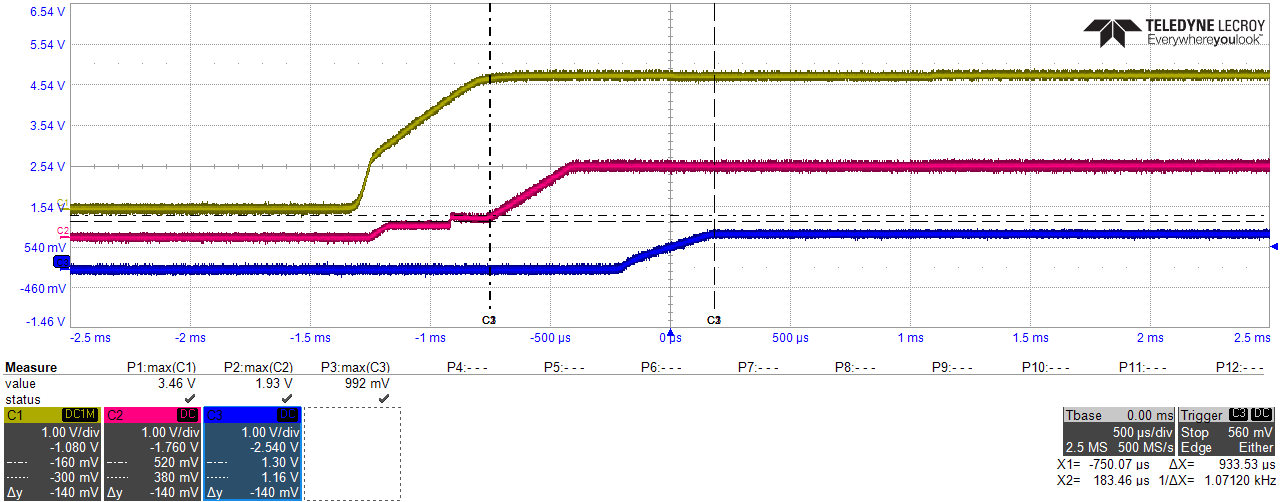

REGIN-CH1,VDD18 OUT-CH2,DVDD OUT-CH3 Trising2.png (62.9 KB)
History
#1 Updated by SZ TPM-罗云进 almost 3 years ago
- Assignee set to SZ-硬件二组_SD3 王苗
#2 Updated by SZ HW Test-曾小文 almost 3 years ago
- Subject changed from VDD18_OUT上电至0.37V时有433us平台 to 【Figure】【EVT】【SI】VDD18_OUT上电至0.37V时有433us平台
#3 Updated by SZ-硬件二组_SD3 王苗 almost 3 years ago

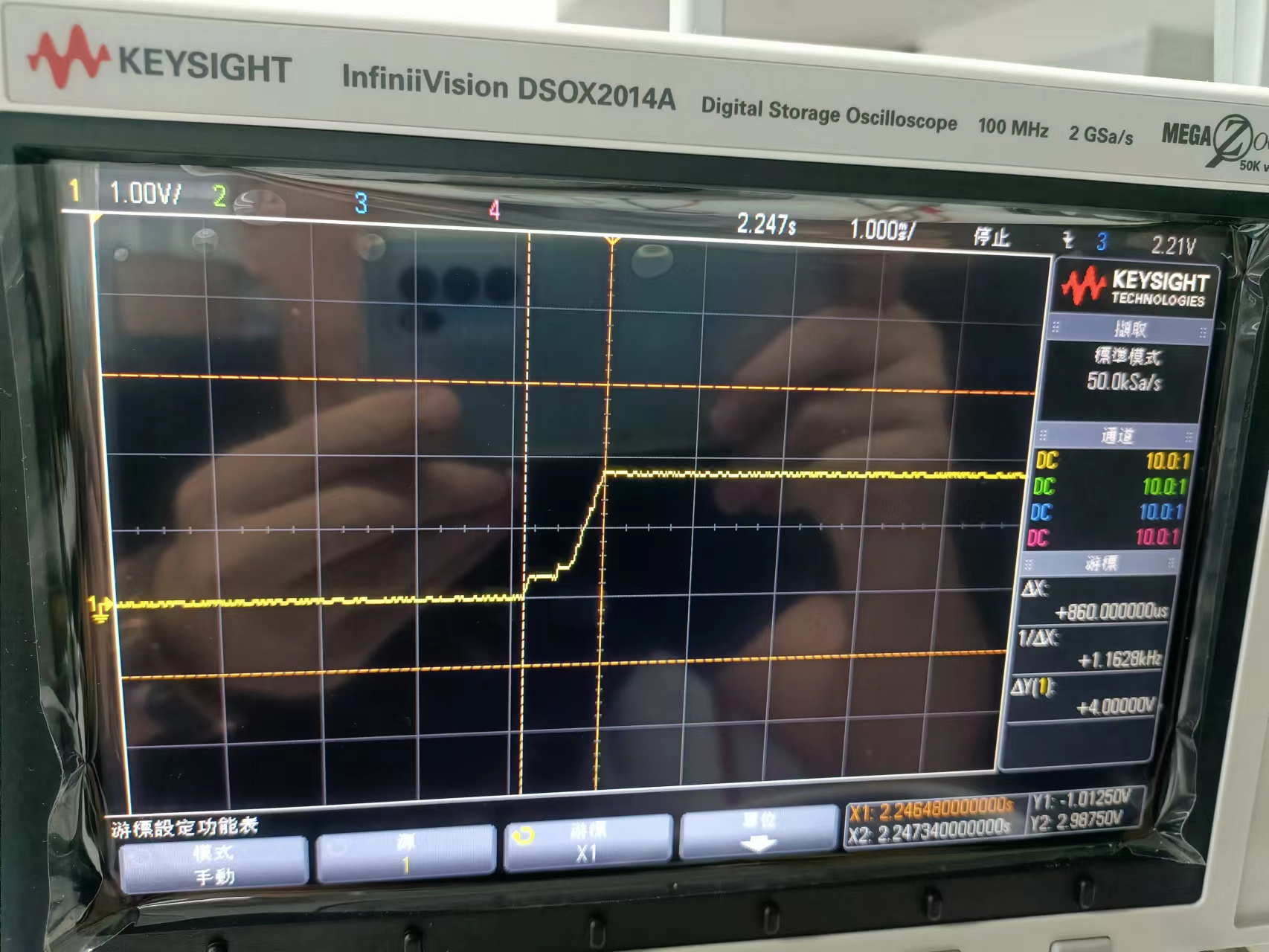

- File 断开B815测试输出.jpg added
此电压为芯片输出电压，断开电压输出 B815与后级的连接，测试波形依然有台阶，芯片自身有台阶输出，不是设计BUG。
#4 Updated by SZ-硬件二组_SD3 王苗 almost 3 years ago
- File 断开B815测试输出.jpg added
- Assignee changed from SZ-硬件二组_SD3 王苗 to 项目二组_SD3 曾小文
此电压为芯片输出电压，断开电压输出 B815与后级的连接，测试波形依然有台阶，芯片自身有台阶输出，不是设计BUG。
#6 Updated by 项目二组_SD3 曾小文 almost 3 years ago
- Status changed from RESOLVED to VERIFIED
#7 Updated by 项目二组_SD3 曾小文 almost 3 years ago
- Status changed from VERIFIED to CLOSED
#8 Updated by CD TPM-申艳艳 almost 3 years ago
- Category set to EE
