Bug #115174: 【AF】【EVT2】【桌面管理】重复从多任务管理器启动应用小窗后，桌面dock栏位置整体向左移动【2/5】 - Figure - 中科创达

Bug #115174

测试 Test-IT #110961: V2.0功能测试

测试 Test-IT #111050: AF-V2.0-Launcher/SystemUI-桌面管理

【AF】【EVT2】【桌面管理】重复从多任务管理器启动应用小窗后，桌面dock栏位置整体向左移动【2/5】

Added by CD Test赵飞 over 2 years ago. Updated over 2 years ago.

Status:

CLOSED

Start date:

2023-01-09

Priority:

Normal

Due date:

2023-01-13

Assignee:

CD Test赵飞

% Done:

100%

Category:

CD-APP

Target version:

Need_Info:

Found Version:

FlatBuild_HH_VX1_MCE_FSE.M.D.user.01.00.X101.202301080304

Resolution:

FIXED

Degrated:

Severity:

Normal

Verified Version:

Reproducibility:

Frequently

Fixed Version:

2023-01-17

Test Type:

Root cause:

Hotseat的锚点发生修改，导致从更多小窗应用列表中启动时的缩放会产生位移的效果

Description

【前提条件】
1、设备已开机

【测试步骤】
1、进入多任务管理
2、在小窗应用列表中启动一个小窗应用
3、重复步骤1~2

【预期结果】

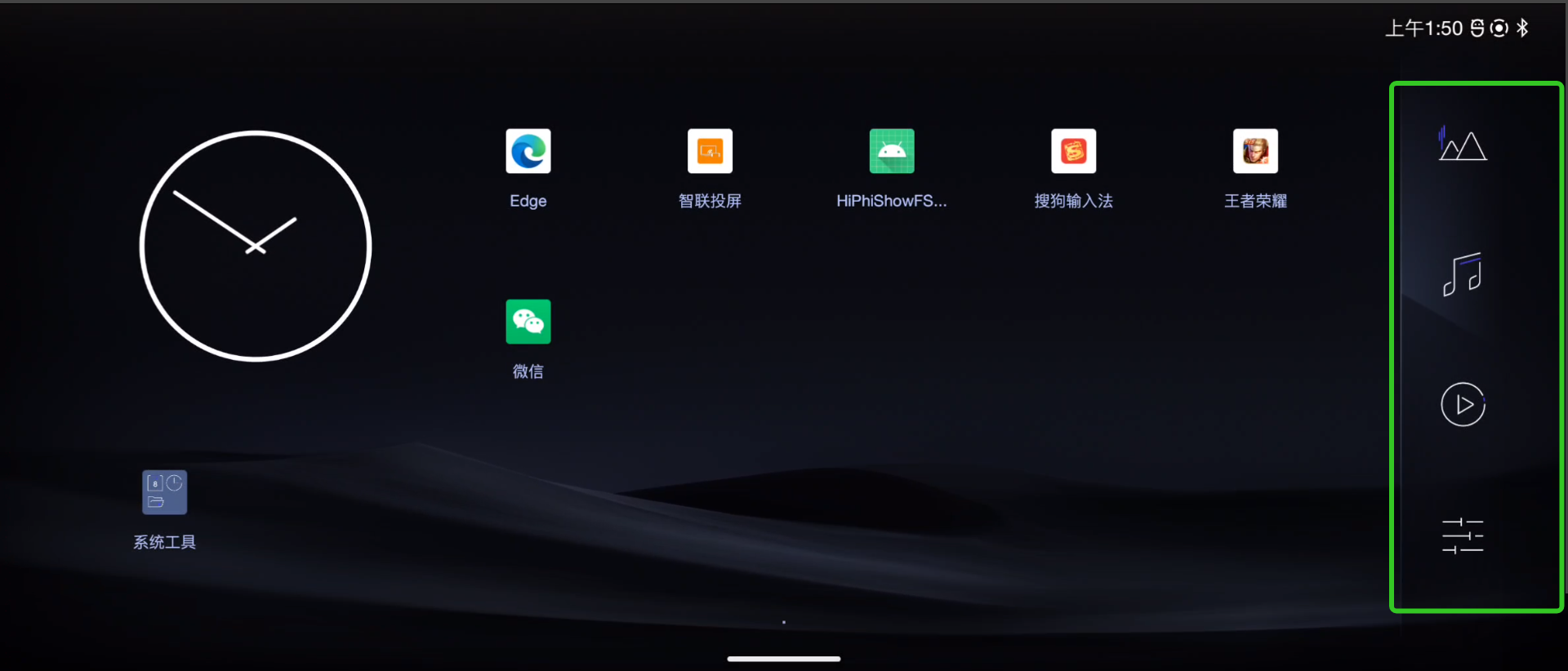

3、桌面dock栏显示正常

【实际结果】

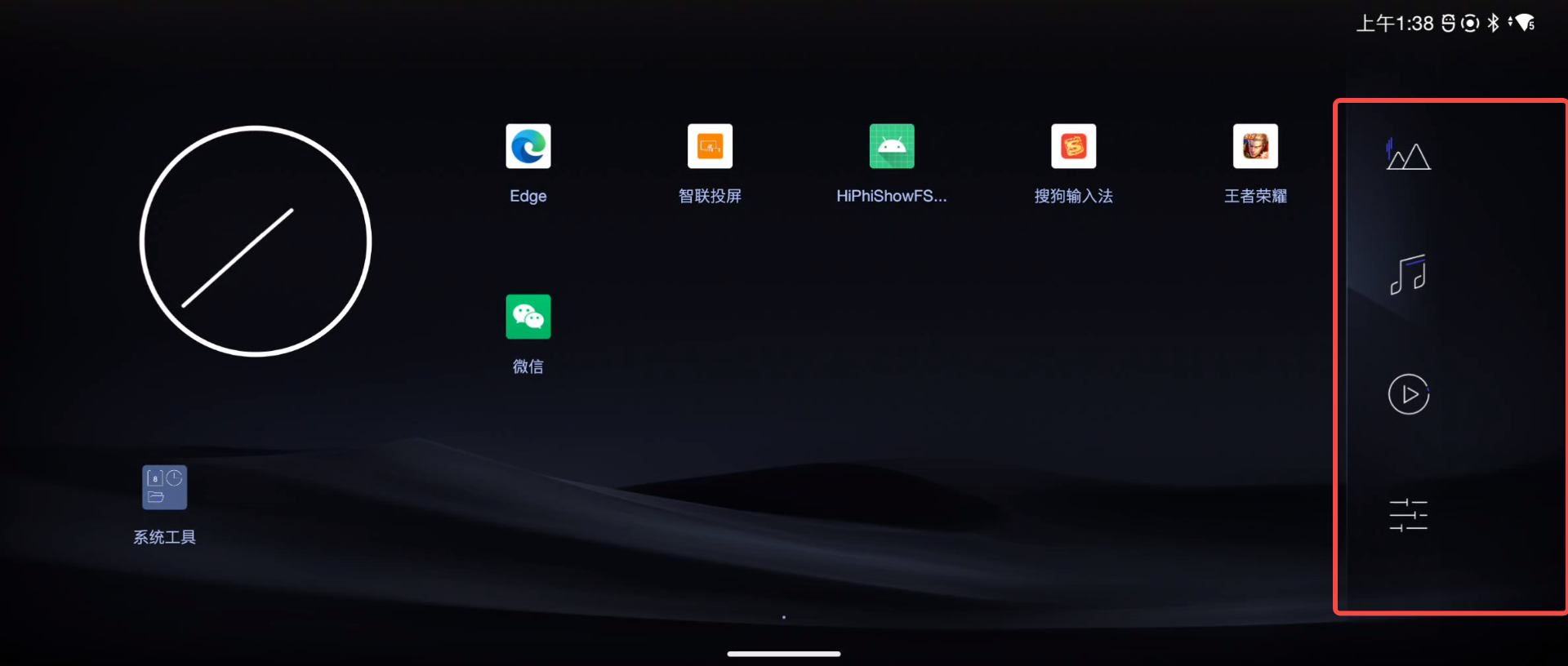

3、桌面dock栏位置整体向左移动

logcat.txt (3.02 MB) CD Test赵飞, 2023-01-09 14:33



History

#1 Updated by CD Test赵飞 over 2 years ago

Category set to CD-APP

#2 Updated by CD APP-王营 over 2 years ago

Status changed from New to ASSIGNED
Assignee changed from CD APP-王营 to CD APP-王宏

#3 Updated by CD APP-王营 over 2 years ago

Due date set to 2023-01-13

#4 Updated by CD APP-王宏 over 2 years ago

■ Current conclusion
已查找到问题原因
■ My analysis
根据hotseat内打印日志
TranslationX: 0.0 ScaleX: 1.0 ScaleY: 1.0 Bounds: Rect(2038, 0 - 2380, 1020) PivotX: 93.0 PivotY: 400.0
TranslationX: 0.0 ScaleX: 0.92 ScaleY: 0.92 Bounds: Rect(1963, 32 - 2278, 970) PivotX: -938.0 PivotY: 400.0
发现PivotX 发生了较大改变，导致缩放过后会产生明显的位置变化，最终排查到
WorkspaceRevealAnim$WorkspaceRevealAnim{
Workspace workspace = launcher.getWorkspace();
//这里设置setPivotX 的算法有问题
workspace.setPivotToScaleWithSelf(launcher.getHotseat());
}
■ Next action
修改算法，并做好代码提交

#5 Updated by IoT scm over 2 years ago

Gerrit Merge Information：

ID	Project	Branch	Uploader
177172	general/platform/packages/apps/Launcher3	Pre_figure_turbox-c2130c-la1.1-qssi12-dev	hong.wang_a@thundersoft.com
FW:Launcher:Fix hotshot UI display exception 1. Enter recnet 2. Open more applications from the small window list to open the small window 3. There is a certain chance to display abnormalities TC-RID: 1201-0205303 IssueID: TS-R-BUG-115174 Change-Id: I0d12d9345ca20cf95781876bc5256c2c4fcadd68
