Bug #116877

【AF】【EVT3】【ST】【MCU】MCU 过压保护在未跳过开机向导时，无法生效

Added by 移动测试一组_CDTS 刘强 over 2 years ago. Updated about 2 years ago.

Status:CLOSEDStart date:2023-03-10
Priority:HighDue date:
Assignee:移动测试一组_CDTS 刘强% Done:

100%

Category:CD-FW
Target version:VC1_FSE_0090_20230411
Need_Info:TEST Found Version:0078
Resolution:FIXED Degrated:No
Severity:Major Verified Version:
Reproducibility:Frequently Fixed Version:2023-04-06
Test Type:ST Root cause:在Launcher启动之前就收到了过压警告, 所以当前没有注册任何回调，导致后续流程不会继续处理

Description

【前提条件】
使用稳压电源进线供电

【测试步骤】
1. 烧写正常版本后开机
2. 在开机引导界面或开机动画界面升压至19V
3. 触发过压保护后，重新上电开机，执行恢复出厂
4. 在开机动画和开机引导界面升压

【预期结果】
2&4 均能触发过压保护

【实际结果】
目前的情况看，只要过了一次开机向导，就能生效
如果第一次开机向导刚过的时候（立马重启，这个时候下一次重启的时候还有这个界面，同样会生效了）

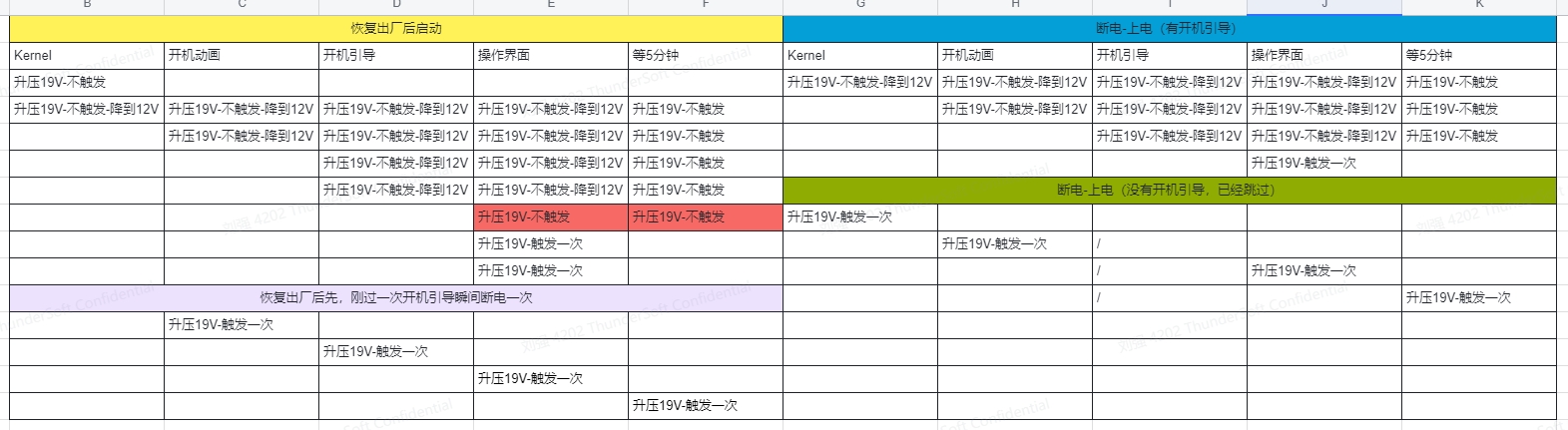

现象：https://thundersoft.feishu.cn/sheets/shtcnOEcoyyATbrgXEXTNOK0Czd?sheet=ttyz1j 中过压保护sheet


log.zip (1.1 MB) 移动测试一组_CDTS 刘强, 2023-04-03 15:01

log.txt Magnifier (2.19 MB) 移动测试一组_CDTS 刘强, 2023-04-06 15:47

20230310-182241

History

#1 Updated by CD TPM-王祥林 over 2 years ago

  • Category changed from BSP to CD-FW
  • Assignee changed from CD TPM-王祥林 to CD FW 曹覃刚

#2 Updated by CD FW 曹覃刚 over 2 years ago

  • Status changed from New to ASSIGNED

■ 我的分析
已追加日志并编译版本
http://10.0.76.24:8080/job/VerifyBuild_for_IOT_6490/2940/

■ 下一步解析计划
待编译完成后抓取日志

#3 Updated by CD FW 曹覃刚 over 2 years ago

  • Assignee changed from CD FW 曹覃刚 to CD FW王武军

#4 Updated by CD FW 曹覃刚 over 2 years ago

  • Assignee changed from CD FW王武军 to CD FW 曹覃刚

#5 Updated by CDTS_TEST 王成 over 2 years ago

  • Target version set to VC1_FSE_0090_20230411

#6 Updated by CD FW 曹覃刚 over 2 years ago

■ 我的分析
上次版本追加日志有限
已新增日志并编译版本
http://10.0.76.24:8080/job/VerifyBuild_for_IOT_6490/3085/

■ 下一步解析计划
待编译完成后抓取日志

#7 Updated by CD FW 曹覃刚 over 2 years ago

  • Status changed from ASSIGNED to NEED_INFO
  • Assignee changed from CD FW 曹覃刚 to 移动测试一组_CDTS 刘强
  • Need_Info changed from -- to TEST

Hi 强哥
如飞书沟通，请帮忙使用如下版本抓取日志，感谢
/Pre_figure/VerifyBuild/Pre_figure_turbox-c2130c-la1.1-qssi12-dev/20230324/202303241905-3085

#8 Updated by 移动测试一组_CDTS 刘强 over 2 years ago

  • File log.zip added
  • Status changed from NEED_INFO to ASSIGNED
  • Assignee changed from 移动测试一组_CDTS 刘强 to CD FW 曹覃刚

log已经上传

#9 Updated by CD FW 曹覃刚 over 2 years ago

  • Status changed from ASSIGNED to NEED_INFO
  • Assignee changed from CD FW 曹覃刚 to 移动测试一组_CDTS 刘强

Hi 强哥
■ 我的分析
------------
error1.txt:14165: 03-24 19:36:02.563 2552 2689 D ProtectUartService: send mpu boot completed res=0
error1.txt:16722: 03-24 19:36:45.578 2552 2694 D ProtectUartService: DTC_MCU: received voltage warning //收到高压警告
error1.txt:16723: 03-24 19:36:45.578 2552 2694 D ProtectUartService: java.lang.Throwable: ProtectUartService
error1.txt:16724: 03-24 19:36:45.578 2552 2694 D ProtectUartService: at com.thundercomm.tcservice.protect.ProtectServiceUartService.handleUartMessage(ProtectServiceUartService.java:41)
error1.txt:16725: 03-24 19:36:45.578 2552 2694 D ProtectUartService: at com.thundercomm.tcservice.comm.TcServiceUartComm$1.onMessage(TcServiceUartComm.java:50)
error1.txt:16726: 03-24 19:36:45.578 2552 2694 D ProtectUartService: at com.thundercomm.tcservice.comm.TcServiceUartComm.onUartMessage(TcServiceUartComm.java:83)
error1.txt:16727: 03-24 19:36:45.578 2552 2694 D ProtectUartService: at vendor.ts.uart.V1_0.IUartCallback$Stub.onTransact(IUartCallback.java:528)
error1.txt:21903: 03-24 19:41:12.825 2690 2690 D TCServiceManager: add linkToDeath
error1.txt:21904: 03-24 19:41:12.825 2690 2690 D TCServiceManager: TCServiceManager bind TcService, status=success
error1.txt:21905: 03-24 19:41:12.825 2690 2690 D TCServiceManager: registerListener
error1.txt:21906: 03-24 19:41:12.825 2690 2690 D TCServiceManager: registerListener //桌面注册回调
error1.txt:21907: 03-24 19:41:12.825 2690 2690 D TCServiceManager: java.lang.Throwable: TCServiceManager
error1.txt:21908: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at com.thundercomm.tcservice.TCServiceManager.registerListener(TCServiceManager.java:123)
error1.txt:21909: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at com.android.launcher3.Launcher.registerReceiver(Launcher.java:3488)
error1.txt:21910: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at com.android.launcher3.Launcher.onCreate(Launcher.java:579)
error1.txt:21911: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at com.android.launcher3.BaseQuickstepLauncher.onCreate(BaseQuickstepLauncher.java:147)
error1.txt:21912: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at android.app.Activity.performCreate(Activity.java:8085)
error1.txt:21913: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at android.app.Activity.performCreate(Activity.java:8065)
error1.txt:21914: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at android.app.Instrumentation.callActivityOnCreate(Instrumentation.java:1330)
error1.txt:21915: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:3609)
error1.txt:21916: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:3793)
error1.txt:21917: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at android.app.servertransaction.LaunchActivityItem.execute(LaunchActivityItem.java:103)
error1.txt:21918: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at android.app.servertransaction.TransactionExecutor.executeCallbacks(TransactionExecutor.java:135)
error1.txt:21919: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at android.app.servertransaction.TransactionExecutor.execute(TransactionExecutor.java:95)
error1.txt:21920: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at android.app.ActivityThread$H.handleMessage(ActivityThread.java:2211)
error1.txt:21921: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at android.os.Handler.dispatchMessage(Handler.java:106)
error1.txt:21922: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at android.os.Looper.loopOnce(Looper.java:201)
error1.txt:21923: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at android.os.Looper.loop(Looper.java:288)
error1.txt:21924: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at android.app.ActivityThread.main(ActivityThread.java:7880)
error1.txt:21925: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at java.lang.reflect.Method.invoke(Native Method)
error1.txt:21926: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:548)
error1.txt:21927: 03-24 19:41:12.825 2690 2690 D TCServiceManager: at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1009)
error1.txt:21929: 03-24 19:41:12.826 2552 2612 D ProtectUartService: received RegisterListener token:LAUNCHER_VOLTAGE_PROTECT
------------
由上述日志分析可知
在Launcher启动之前就收到了过压警告, 所以当前没有注册任何回调，导致后续流程不会继续处理

在桌面未起来之前，如果收到过压警告，因没有任何内容需要完成，此时应该直接完成过压保护的处理。
我制作了如下提交
https://dev.thundercomm.com/gerrit/c/general/platform/vendor/thundercomm/apps/TCService/+/191649
并编译了版本
http://10.0.76.24:8080/job/VerifyBuild_for_IOT_6490/3183/

■ 下一步解析计划
我根据日志了做了修复提交，并编译了版本，请明天帮忙使用下列版本验证此问题，谢谢
/Pre_figure/VerifyBuild/Pre_figure_turbox-c2130c-la1.1-qssi12-dev/20230403/202304031940-3183

#10 Updated by CD BSP-杜磊 over 2 years ago

  • Subject changed from 【BSP】【EVT3】【ST】【MCU】MCU 过压保护在未跳过开机向导时，无法生效 to 【AF】【EVT3】【ST】【MCU】MCU 过压保护在未跳过开机向导时，无法生效

#11 Updated by IoT scm over 2 years ago

Gerrit Merge Information：
ID Project Branch Uploader
191649 general/platform/vendor/thundercomm/apps/TCService Pre_figure_turbox-c2130c-la1.1-qssi12-dev
FW:UART: when received voltage warning, but no project need to do, need finish directly
TC-RID: 1201-0207301
IssueID: TS-R-BUG-116877
Change-Id: I28ca43135d86286ac963d4a0107c349ca30b9194

#12 Updated by CD FW 曹覃刚 over 2 years ago

  • Status changed from NEED_INFO to RESOLVED
  • % Done changed from 0 to 100
  • Need_Info deleted (TEST)
  • Resolution changed from -- to FIXED
  • Degrated changed from -- to No
  • Fixed Version set to 2023-04-06
  • Root cause set to 在Launcher启动之前就收到了过压警告, 所以当前没有注册任何回调，导致后续流程不会继续处理

#13 Updated by 移动测试一组_CDTS 刘强 about 2 years ago

  • Status changed from RESOLVED to VERIFIED

已根据过压保护sheet条件验收通过

#14 Updated by 移动测试一组_CDTS 刘强 about 2 years ago

  • Status changed from VERIFIED to CLOSED

验收版本：0089
验收结果：pass
综合验收次数：50次

#15 Updated by 移动测试一组_CDTS 刘强 about 2 years ago

  • File log.txtMagnifier added
  • Status changed from CLOSED to New
  • Assignee changed from 移动测试一组_CDTS 刘强 to CD FW 曹覃刚

在0089版本再次复现问题，相关日志已上传

#16 Updated by CD FW 曹覃刚 about 2 years ago

  • Status changed from New to NEED_INFO
  • Assignee changed from CD FW 曹覃刚 to 移动测试一组_CDTS 刘强
  • Need_Info set to TEST

Hi 强哥
如下午当面沟通，请确认是否板子短路导致

#17 Updated by 移动测试一组_CDTS 刘强 about 2 years ago

  • Status changed from NEED_INFO to RESOLVED

使用新板子，0089测试 10次未复现

#18 Updated by 移动测试一组_CDTS 刘强 about 2 years ago

  • Status changed from RESOLVED to VERIFIED

#19 Updated by 移动测试一组_CDTS 刘强 about 2 years ago

  • Status changed from VERIFIED to CLOSED
