Bug #118099
Bug #118333: 【IOVDEV-31145】【自动化测试】【稳定性测试】【VC1】稳定性测试，副屏黑屏（自动化台架2）
Bug #118378: 5/27 黑屏问题分析
【IOVDEV-29349】【内部】【VC1】【0095】【台架】【EE环境】【副屏】副屏黑屏，ADB与副屏还在连接状态
| Status: | CLOSED | Start date: | 2023-05-19 | ||
|---|---|---|---|---|---|
| Priority: | High | Due date: | |||
| Assignee: | 移动测试一组_CDTS 刘强 | % Done: | 90% | ||
| Category: | BSP | ||||
| Target version: | - | ||||
| Need_Info: | -- | Found Version: |
【中控版本号】：03.02.0080.C101
VIN：HRYTTESTVINMGM401 【副屏版本号】：01.00.0095.c103 |
||
| Resolution: | -- | Degrated: | -- | ||
| Severity: | Critical | Verified Version: | |||
| Reproducibility: | Occasionally | Fixed Version: | |||
| Test Type: | ST | Root cause: | 屏端异常,no video |
Description
环境信息】EE环境
【问题出现时间】：20230519 10：00
【前提条件】：副屏上电，中控已连接
【操作步骤】
1.前一天晚上跑monkey早上来到之后monkey已断开
2.此时副屏正常，还操作导出过副屏日志
【实际结果】
1.九点半左右副屏黑屏
2.adb还可以连接
3.副屏黑屏之后下电过一次，依然是黑屏
4.第二次下电重启，恢复正常
4.连接的中控大概11:30分左右也黑屏了
【期望结果】
1.副屏不黑屏
【备注】：
【当前开机次数】：黑屏之前83次，恢复之后85次
【应用版本】：
【硬件类型】：B样件
【中控版本号】：03.02.0080.C101
VIN：HRYTTESTVINMGM401
【副屏版本号】：01.00.0095.c103
History
#2 Updated by CD FW 曹覃刚 about 2 years ago
- Category changed from CD-FW to BSP
- Status changed from New to ASSIGNED
- Assignee changed from CD FW 曹覃刚 to CD BSP-杜磊
Hi 杜磊
看日志，屏端电压异常了，是否需要屏厂分析，请确认，谢谢
-----------------
FSEM_000084_0045_0519112122/logcat/000083_persist_00608_230519_105053.log:423:05-19 10:51:04.655 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00608_230519_105053.log:552:05-19 10:51:10.900 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00608_230519_105053.log:2072:05-19 10:52:06.827 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00630_230519_110208.log:1273:05-19 11:02:13.775 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00714_230519_111011.log:1242:05-19 11:10:15.795 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00699_230519_110829.log:1314:05-19 11:08:35.682 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00738_230519_111323.log:144:05-19 11:13:23.134 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00637_230519_110352.log:1445:05-19 11:04:03.395 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00776_230519_111635.log:1599:05-19 11:16:41.755 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00676_230519_110700.log:1404:05-19 11:07:02.546 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00751_230519_111440.log:1922:05-19 11:14:44.486 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00751_230519_111440.log:1923:05-19 11:14:44.486 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00744_230519_111403.log:886:05-19 11:14:06.927 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00625_230519_110117.log:1780:05-19 11:01:24.486 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00707_230519_110923.log:633:05-19 11:09:25.759 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00613_230519_105754.log:16:05-19 10:57:54.215 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00613_230519_105754.log:630:05-19 10:58:19.043 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00724_230519_111136.log:168:05-19 11:11:36.939 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00787_230519_111842.log:1251:05-19 11:18:51.740 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00692_230519_110800.log:1458:05-19 11:08:04.399 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00705_230519_110912.log:413:05-19 11:09:13.258 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00791_230519_111918.log:1081:05-19 11:19:22.994 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00792_230519_111926.log:332:05-19 11:19:29.243 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00792_230519_111926.log:333:05-19 11:19:29.243 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00750_230519_111435.log:1273:05-19 11:14:38.230 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00669_230519_110633.log:1465:05-19 11:06:37.530 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00669_230519_110633.log:1466:05-19 11:06:37.530 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00660_230519_110551.log:864:05-19 11:05:53.887 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00788_230519_111853.log:2016:05-19 11:18:57.983 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00658_230519_110539.log:331:05-19 11:05:41.383 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00695_230519_110813.log:1644:05-19 11:08:16.914 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00710_230519_110943.log:1832:05-19 11:09:50.766 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00728_230519_111215.log:1325:05-19 11:12:20.711 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00621_230519_110038.log:831:05-19 11:00:46.935 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00735_230519_111302.log:963:05-19 11:13:04.467 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00611_230519_105459.log:45:05-19 10:55:00.691 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00611_230519_105459.log:517:05-19 10:55:19.448 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00611_230519_105459.log:1248:05-19 10:55:50.667 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00611_230519_105459.log:1432:05-19 10:55:56.907 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00798_230519_112031.log:353:05-19 11:20:31.842 0 0 E DTC_Display: screen not ready(0), bl_sta(116), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00760_230519_111526.log:906:05-19 11:15:28.283 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00615_230519_105919.log:690:05-19 10:59:20.490 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00615_230519_105919.log:691:05-19 10:59:20.490 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00624_230519_110100.log:1458:05-19 11:01:11.969 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00712_230519_110957.log:1729:05-19 11:10:03.278 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00612_230519_105630.log:86:05-19 10:56:34.419 0 0 E DTC_Display: Abnormal voltage: 0mV
FSEM_000084_0045_0519112122/logcat/000083_persist_00612_230519_105630.log:582:05-19 10:56:53.176 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00725_230519_111143.log:1438:05-19 11:11:55.699 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
FSEM_000084_0045_0519112122/logcat/000083_persist_00755_230519_111458.log:1762:05-19 11:15:03.246 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
#3 Updated by CD BSP-杜磊 about 2 years ago
- Assignee changed from CD BSP-杜磊 to CDTS_TEST 王成
如上log所示，由于屏端内部发生异常导致黑屏，需屏厂进行调查分析
#4 Updated by CD TEST-方永红 about 2 years ago

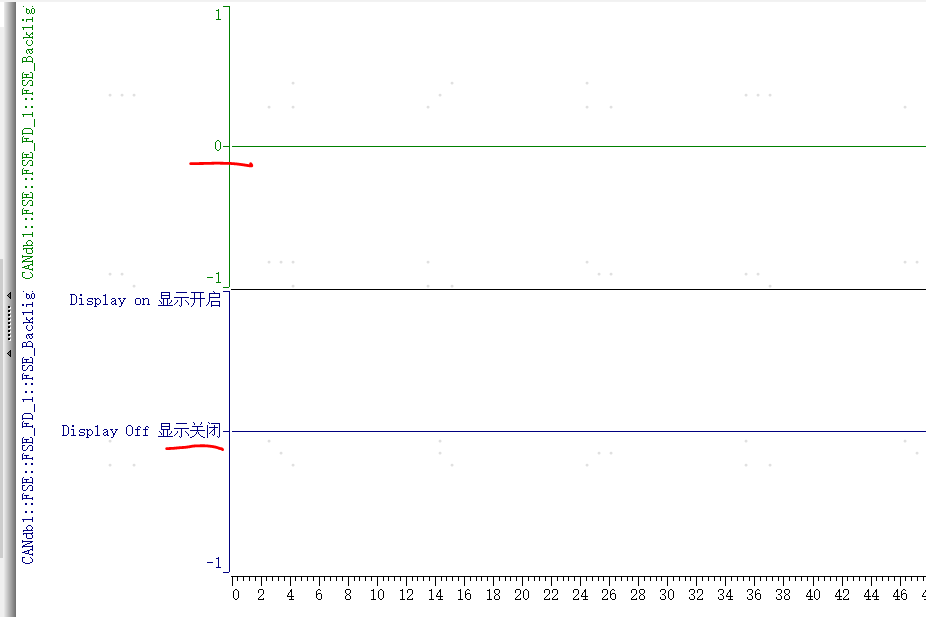

- File image-2023-05-24-17-12-38-501.png added
这个DTC根据这几天的确认应该是历史故障，黑屏的时候有录过CAN log 屏端是收到了display off 以及亮度=0，请确认
#5 Updated by CDTS_TEST 王成 about 2 years ago
- Assignee changed from CDTS_TEST 王成 to CD FW 曹覃刚
#6 Updated by CDTS_TEST 王成 about 2 years ago
- Assignee changed from CD FW 曹覃刚 to CD SYSTEM-夏旭
#7 Updated by CDTS_TEST 王成 about 2 years ago
- Assignee changed from CD SYSTEM-夏旭 to CD BSP-杜磊
#8 Updated by CD BSP-杜磊 about 2 years ago
- Assignee changed from CD BSP-杜磊 to CD FW 曹覃刚
覃刚，
客户回复说，屏端收到了灭屏指令，帮忙看一下上层是否有下发灭屏指令呢
#9 Updated by CD FW 曹覃刚 about 2 years ago
- Assignee changed from CD FW 曹覃刚 to CD BSP-杜磊
Hi 杜磊
■ 我的分析
覃刚，
客户回复说，屏端收到了灭屏指令，帮忙看一下上层是否有下发灭屏指令呢
在九点之后的日志中check, 上层没有发过灭屏的指令
logcat/000083_persist_00551_230519_092822.log:1956:05-19 09:29:26.934 26602 26986 I ActivityTaskManager: START u0 {flg=0x10000000 cmp=com.hht.lebocast/com.hpplay.sdk.sink.business.BusinessActivity (has extras)} from uid 10082
//在09:29:26时，进入了投屏SDK中的画面
logcat/000083_persist_00553_230519_093020.log:329:05-19 09:30:29.548 26602 30810 I ActivityTaskManager: START u0 {flg=0x10000000 pkg=com.thundercomm.screensaver cmp=com.thundercomm.screensaver/android.service.dreams.DreamActivity (has extras)} from uid 10046
//在09:30:29时，进入屏保画面
看日志文件名称
FSEM_000083_0044_0519105152.tar.gz
FSEM_000084_0046_0519115139.tar.gz 开机次数由83变为84，在10:50左右第一次断电
FSEM_000084_0045_0519112122.tar.gz
FSEM_000085_0049_0519130734.tar.gz 开机次数由84变为85，在11:21左右第二次断电
1.检查09:30之后到10:50这段时间内的日志，上层没有任何异常
2.从票的描述信息看，似乎是完全黑屏，没有背光
■ 下一步计划
1.检查对应时间内的日志，上层没有下发灭屏指令，@杜磊请确认
2.上层检查无异常，不存在显示问题，看问题现象，似乎是完全黑屏，没有背光，请BSP的同学帮忙检查
#10 Updated by CD BSP-余霄 about 2 years ago
- Status changed from ASSIGNED to RESOLVED
- Assignee changed from CD BSP-杜磊 to CDTS_TEST 王成
- Root cause set to 屏端异常
Z:\home\thundersoft\HDD\Project\Figure\118099\bk\FSEM_000083_0044_0519105152\kernel\000083_kernel_00129_230519_101530.log (6 hits)
Line 1168: 05-19 10:20:24.219 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1193: 05-19 10:20:30.459 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1392: 05-19 10:21:20.423 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1445: 05-19 10:21:32.907 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1446: 05-19 10:21:32.907 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 1627: 05-19 10:22:16.635 0 0 E DTC_Display: Abnormal voltage: 0mV
Z:\home\thundersoft\HDD\Project\Figure\118099\bk\FSEM_000083_0044_0519105152\kernel\000083_kernel_00130_230519_102344.log (11 hits)
Line 17: 05-19 10:23:47.927 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 92: 05-19 10:24:06.691 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 315: 05-19 10:25:02.771 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 1037: 05-19 10:28:04.319 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 1158: 05-19 10:28:35.535 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1183: 05-19 10:28:41.775 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1208: 05-19 10:28:48.023 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1257: 05-19 10:29:00.555 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 1464: 05-19 10:29:55.515 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1663: 05-19 10:30:45.495 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1862: 05-19 10:31:35.507 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Z:\home\thundersoft\HDD\Project\Figure\118099\bk\FSEM_000083_0044_0519105152\kernel\000083_kernel_00131_230519_103205.log (16 hits)
Line 4: 05-19 10:32:05.615 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 55: 05-19 10:32:18.095 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 80: 05-19 10:32:24.335 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 305: 05-19 10:33:20.587 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 330: 05-19 10:33:26.827 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 677: 05-19 10:34:54.023 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 852: 05-19 10:35:37.795 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 1122: 05-19 10:36:46.091 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1368: 05-19 10:37:47.335 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 1419: 05-19 10:37:59.843 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1420: 05-19 10:37:59.843 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 1589: 05-19 10:38:42.419 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1664: 05-19 10:39:01.203 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 1691: 05-19 10:39:07.455 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1742: 05-19 10:39:19.939 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1941: 05-19 10:40:09.919 0 0 E DTC_Display: Abnormal voltage: 0mV
Z:\home\thundersoft\HDD\Project\Figure\118099\bk\FSEM_000083_0044_0519105152\kernel\000083_kernel_00132_230519_104021.log (7 hits)
Line 275: 05-19 10:41:30.471 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 589: 05-19 10:42:50.379 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1410: 05-19 10:46:17.283 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1487: 05-19 10:46:36.016 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 1612: 05-19 10:47:07.303 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 1816: 05-19 10:47:57.271 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 1841: 05-19 10:48:03.559 0 0 E DTC_Display: Abnormal voltage: 0mV
Z:\home\thundersoft\HDD\Project\Figure\118099\bk\FSEM_000083_0044_0519105152\kernel\000083_kernel_00133_230519_104838.log.ing (4 hits)
Line 188: 05-19 10:49:24.864 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 559: 05-19 10:50:58.395 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 581: 05-19 10:51:04.655 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 608: 05-19 10:51:10.900 0 0 E DTC_Display: Abnormal voltage: 0mV
Z:\home\thundersoft\HDD\Project\Figure\118099\FSEM_000084_0045_0519112122\kernel\000083_kernel_00133_230519_104838.log (12 hits)
Line 188: 05-19 10:49:24.864 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 559: 05-19 10:50:58.395 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 581: 05-19 10:51:04.655 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 608: 05-19 10:51:10.900 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 839: 05-19 10:52:06.827 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 1278: 05-19 10:53:58.191 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 1525: 05-19 10:55:00.691 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1602: 05-19 10:55:19.448 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 1722: 05-19 10:55:50.667 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1749: 05-19 10:55:56.907 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1894: 05-19 10:56:34.419 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1971: 05-19 10:56:53.176 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Z:\home\thundersoft\HDD\Project\Figure\118099\FSEM_000084_0045_0519112122\kernel\000083_kernel_00134_230519_105656.log (22 hits)
Line 232: 05-19 10:57:54.215 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 331: 05-19 10:58:19.043 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 606: 05-19 10:59:20.490 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 607: 05-19 10:59:20.490 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 896: 05-19 11:00:28.159 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 919: 05-19 11:00:34.407 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 970: 05-19 11:00:46.935 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1104: 05-19 11:01:11.969 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1162: 05-19 11:01:24.486 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 1417: 05-19 11:02:13.775 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1718: 05-19 11:04:03.395 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 1771: 05-19 11:04:21.955 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1800: 05-19 11:04:34.462 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 1946: 05-19 11:05:41.383 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1971: 05-19 11:05:53.887 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 2060: 05-19 11:06:37.530 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 2061: 05-19 11:06:37.530 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 2112: 05-19 11:07:02.546 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 2159: 05-19 11:07:26.837 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 2242: 05-19 11:08:04.399 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 2269: 05-19 11:08:16.914 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 2309: 05-19 11:08:35.682 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Z:\home\thundersoft\HDD\Project\Figure\118099\FSEM_000084_0045_0519112122\kernel\000083_kernel_00135_230519_110857.log.ing (30 hits)
Line 37: 05-19 11:09:13.258 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 63: 05-19 11:09:25.759 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 111: 05-19 11:09:50.766 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 138: 05-19 11:10:03.278 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 163: 05-19 11:10:15.795 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 273: 05-19 11:11:05.678 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 302: 05-19 11:11:18.178 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 340: 05-19 11:11:36.939 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 379: 05-19 11:11:55.699 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 428: 05-19 11:12:20.711 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 456: 05-19 11:12:33.214 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 523: 05-19 11:13:04.467 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 562: 05-19 11:13:23.134 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 651: 05-19 11:14:06.927 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 719: 05-19 11:14:38.230 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 732: 05-19 11:14:44.486 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 733: 05-19 11:14:44.486 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 772: 05-19 11:15:03.246 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 825: 05-19 11:15:28.283 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 864: 05-19 11:15:40.483 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 924: 05-19 11:16:04.874 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 1014: 05-19 11:16:41.755 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 1275: 05-19 11:18:51.740 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1288: 05-19 11:18:57.983 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1343: 05-19 11:19:22.994 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1358: 05-19 11:19:29.243 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1359: 05-19 11:19:29.243 0 0 E DTC_Display: screen not ready(0), bl_sta(118), lvl(0)
Line 1452: 05-19 11:20:13.043 0 0 E DTC_Display: screen not ready(0), bl_sta(117), lvl(0)
Line 1481: 05-19 11:20:25.578 0 0 E DTC_Display: Abnormal voltage: 0mV
Line 1494: 05-19 11:20:31.842 0 0 E DTC_Display: screen not ready(0), bl_sta(116), lvl(0)
根据上层提供日志时间点，查看对应日志，确认由于屏端内部发生异常导致黑屏，需屏厂进行调查分析
#11 Updated by CDTS-TEST 周婷 about 2 years ago
- Assignee changed from CDTS_TEST 王成 to CD BSP-余霄
需跟踪屏厂优化结果
#12 Updated by CD TEST-方永红 about 2 years ago
- Status changed from RESOLVED to ASSIGNED
#13 Updated by CDTS-TEST 周婷 about 2 years ago
- Assignee changed from CD BSP-余霄 to CD BSP-杜磊
#14 Updated by CD BSP-杜磊 about 2 years ago
#15 Updated by CD BSP-杜磊 about 2 years ago
- Parent task set to #118378
#16 Updated by CD BSP-杜磊 about 2 years ago
- Status changed from ASSIGNED to RESOLVED
- Assignee changed from CD BSP-杜磊 to 移动测试一组_CDTS 刘强
- % Done changed from 0 to 90
- Root cause changed from 屏端异常 to 屏端异常,no video
请使用6/13 V110版本进行复测
#17 Updated by 物联网测试组_CDTS 唐霞 about 2 years ago
110（6/13）版本monkey跑3天均未复现该相信
#18 Updated by CDTS_TEST 王成 almost 2 years ago
- Status changed from RESOLVED to VERIFIED
客户反馈：跟踪多个版本未复现，BUG已关闭
#19 Updated by CDTS_TEST 王成 almost 2 years ago
- Status changed from VERIFIED to CLOSED
