Bug #118477
【IOVDEV-30998】【系统测试】【VC1】【SORP】【0082】【实车】【EE环境】【系统设置】开启仅副驾息屏之后，副驾没有息屏
| Status: | CLOSED | Start date: | 2023-06-02 | |
|---|---|---|---|---|
| Priority: | Normal | Due date: | ||
| Assignee: | CDTS_TEST 王成 | % Done: | 0% | |
| Category: | CD-FW | |||
| Target version: | - | |||
| Need_Info: | -- | Found Version: | 0100 | |
| Resolution: | FIXED | Degrated: | -- | |
| Severity: | Normal | Verified Version: | ||
| Reproducibility: | Occasionally | Fixed Version: | ||
| Test Type: | ST | Root cause: | 106版本优化了以太网丢包问题，客户未复现close了。 |
Description
【车架号】：LJD8BB3F7P0000708
【环境信息】：EE环境
【问题出现时间】：2023.5.27 15：39
【前提条件】：1、车机上电
【操作步骤】
1、点击设置-显示
2、开启仅副驾息屏
【实际结果】
1、偶现了一次打开仅副驾息屏，但是副驾没有息屏
【期望结果】
1、开启仅副驾息屏之后，副驾要息屏
【备注】：
【版本详情】
【硬件版本号】B样
仅副驾屏.mp4 (6.04 MB)
1685611304912.zip (7.58 MB)
1685783770576.zip (4.81 MB)
History
#1 Updated by CDTS_TEST 王成 about 2 years ago

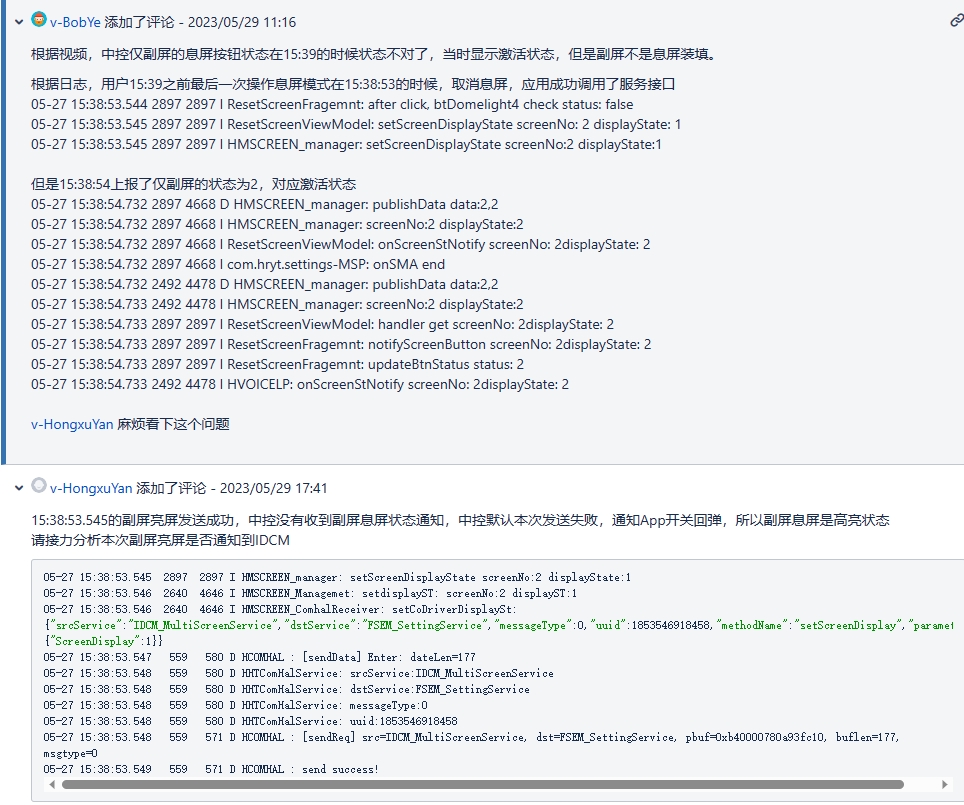

副屏收到了中控的亮信号，uuid与中控13:38:53:564的消息一致

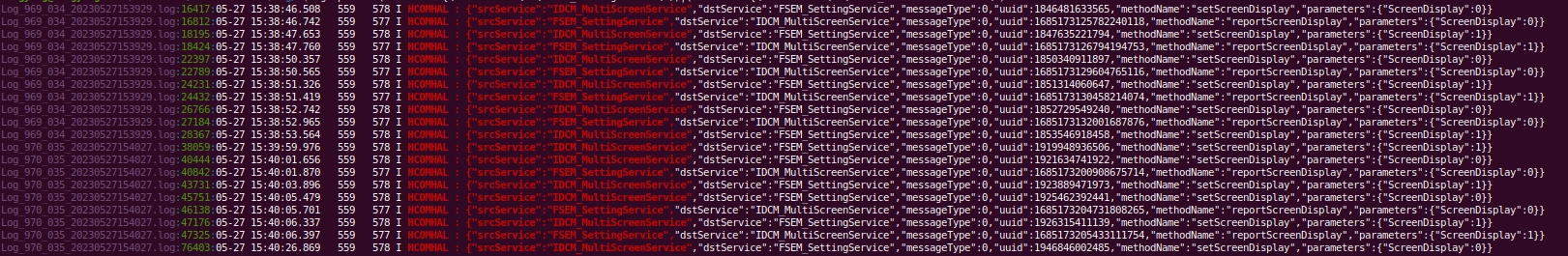

000816_persist_00455_230527_153852.log:05-27 15:38:52.613 2055 12506 I MicroService: Receive message: SocketMessageBean{businessData='21930', srcService='IDCM_MultiScreenService', destService='FSEM_SettingService', messageType='0', uuid='1853546918458', payloadData={"srcService":"IDCM_MultiScreenService","dstService":"FSEM_SettingService","messageType":0,"uuid":1853546918458,"methodName":"setScreenDisplay","parameters":{"ScreenDisplay":1}}}
上报屏幕状态给中控，微服务log显示发送成功，但是根据之前的分析说中控并未收到
000816_persist_00455_230527_153852.log:05-27 15:38:52.699 2055 12516 D MicroService: Send message to IDCM:SocketMessageBean{businessData='21930', srcService='FSEM_SettingService', destService='IDCM_MultiScreenService', messageType='0', uuid='1685173132695483240', payloadData={"srcService":"FSEM_SettingService","dstService":"IDCM_MultiScreenService","messageType":0,"uuid":1685173132695483240,"methodName":"reportScreenDisplay","parameters":{"ScreenDisplay":1}}}
结论：
副屏确实有上报屏幕状给中控，但是中控并未收到，此前也有丢包的情况，该现象疑似tcp丢包，需要网络相关的同学进行确认
#2 Updated by CD LC 陶洪普 about 2 years ago
该现象疑似tcp丢包，需要网络相关的同学进行确认
从抓取的日志包 1685611304912.zip 中，未包含tcpdump文件
请抓取tcpdump，同时下面信息也请获取。
当前的Interface信息(MAC,包统计)
ifconfig
路由信息
ip route list table all
ip 规则
ip rule
包统计信息
cat /proc/net/dev
#3 Updated by CD TEST-方永红 about 2 years ago
- File 1685783770576.zip added
#4 Updated by CD TPM-王祥林 about 2 years ago
- Status changed from New to RESOLVED
- Assignee changed from CD TPM-王祥林 to CDTS_TEST 王成
- Resolution changed from -- to FIXED
- Root cause set to 106版本优化了以太网丢包问题，客户未复现close了。
#5 Updated by SZTS_TEST 邹涛 about 2 years ago
在FlatBuild_HH_MCE_FSE.M.D.user.01.00.C104.202306080125版本验证不通过
#6 Updated by SZTS_TEST 邹涛 about 2 years ago
- Status changed from RESOLVED to VERIFIED
在 FlatBuild_HH_MCE_FSE.M.D.user.01.00.C104.202306090153 版本验证通过
#7 Updated by CD TEST-方永红 about 2 years ago
- Status changed from VERIFIED to CLOSED
