Bug #118624
【IOVDEV-26762】【IOV测试】【VC1】【SORP】【语音】【设置】【实车】反复点击息屏模式，会出现退出息屏模式后，仅中控屏息屏按钮打开状态。
| Status: | CLOSED | Start date: | 2023-06-07 | |
|---|---|---|---|---|
| Priority: | Normal | Due date: | ||
| Assignee: | CDTS_Test 吴诗雨 | % Done: | 0% | |
| Category: | CD-FW | |||
| Target version: | - | |||
| Need_Info: | -- | Found Version: | 03.02.0082.C101 | |
| Resolution: | -- | Degrated: | -- | |
| Severity: | Normal | Verified Version: | ||
| Reproducibility: | Every time | Fixed Version: | ||
| Test Type: | ST | Root cause: |
Description
【前置条件】
语音准备完成
【操作步骤】
反复点击：全部息屏
【预期结果】
退出息屏模式后，按钮全部未打开
【实际结果】
出现“仅中控屏”息屏按钮打开的情况
详见附件视频
【备注】
时间：5/9 9：56
VIN：LJD8BC3F3P0000310
息屏模式.mp4 (1.53 MB)
IOVDEV-26762.zip (4.26 MB)
1686131611601.zip (3.67 MB)
History
#1 Updated by CDTS_Test 吴诗雨 about 2 years ago

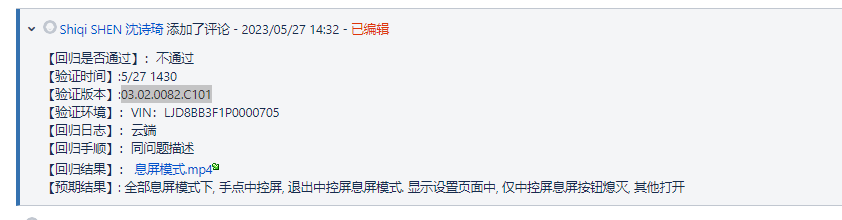

- File screenshot-20230607-175448.png added
详细情况请看截图，云端日志已上传。
#2 Updated by CD FW-程天颖 about 2 years ago
- Status changed from New to NEED_INFO
- Assignee changed from CD FW-程天颖 to CDTS_Test 吴诗雨
■ Current conclusion
分析出原因极大可能是副屏版本不对
■ My analysis
从副屏未打印上报屏幕状态的日志给中控
副屏收到中控的息屏指令：
05-27 14:30:04.993 2153 15990 I MicroService: getStringByData: {"srcService":"IDCM_MultiScreenService","dstService":"FSEM_SettingService","messageType":0,"uuid":2709877191309,"methodName":"setScreenDisplay","parameters":{"ScreenDisplay":0}}
05-27 14:30:04.993 2153 15990 I MicroService: Receive message: SocketMessageBean{businessData='21930', srcService='IDCM_MultiScreenService', destService='FSEM_SettingService', messageType='0', uuid='2709877191309', payloadData={"srcService":"IDCM_MultiScreenService","dstService":"FSEM_SettingService","messageType":0,"uuid":2709877191309,"methodName":"setScreenDisplay","parameters":{"ScreenDisplay":0}}}
05-27 14:30:04.993 2153 15990 I MicroService: dealMessage: 0
05-27 14:30:04.993 2153 15990 I MicroService: onRequest(setScreenDisplay): {"ScreenDisplay":0}
05-27 14:30:04.993 2165 4504 D MicroSettings: ITCMicroCommonCallback: get request method = setScreenDisplay parameters = {"ScreenDisplay":0}
05-27 14:30:04.994 2165 4504 E MicroSettings: NullAction: Do NullAction! ------- Info: Have no action match setScreenDisplay
根据日志来看，微设定中还未制作setScreenDisplay功能，从tlog的结构来看，该日志是很古老的tlog版本，严重怀疑测试环境中的副屏版本不是最新的
■ Next action
请确认测试环境中的副屏版本
#3 Updated by CDTS_Test 吴诗雨 about 2 years ago
已同步
#5 Updated by CDTS_TEST 王成 about 2 years ago
- Status changed from RESOLVED to VERIFIED
#6 Updated by CDTS_TEST 王成 about 2 years ago
- Status changed from VERIFIED to CLOSED
