Bug #118929

测试 Test-IT #111062: V3.0功能测试

测试 Test-IT #111067: AF-V3.0--Launcher/SystemUI-任务管理器

【AF】【EVT】【任务管理器】打开小窗应用，反复上划进入recent界面，卡在放大的“暂无后台任务应用”界面

Added by CDTS_Test 吴诗雨 about 2 years ago. Updated almost 2 years ago.

Status:

CLOSED

Start date:

2023-06-29

Priority:

Normal

Due date:

Assignee:

CD TEST-方永红

% Done:

Category:

CD-APP

Target version:

Need_Info:

Found Version:

0629DB

Resolution:

FIXED

Degrated:

Severity:

Normal

Verified Version:

Reproducibility:

Rarely

Fixed Version:

Test Type:

Root cause:

跟#118923一样

Description

【前提条件】
1、设备已开机

【测试步骤】
1、打开小窗应用
2、反复上划进入recent界面

【预期结果】
2、正常出现recent界面

【实际结果】

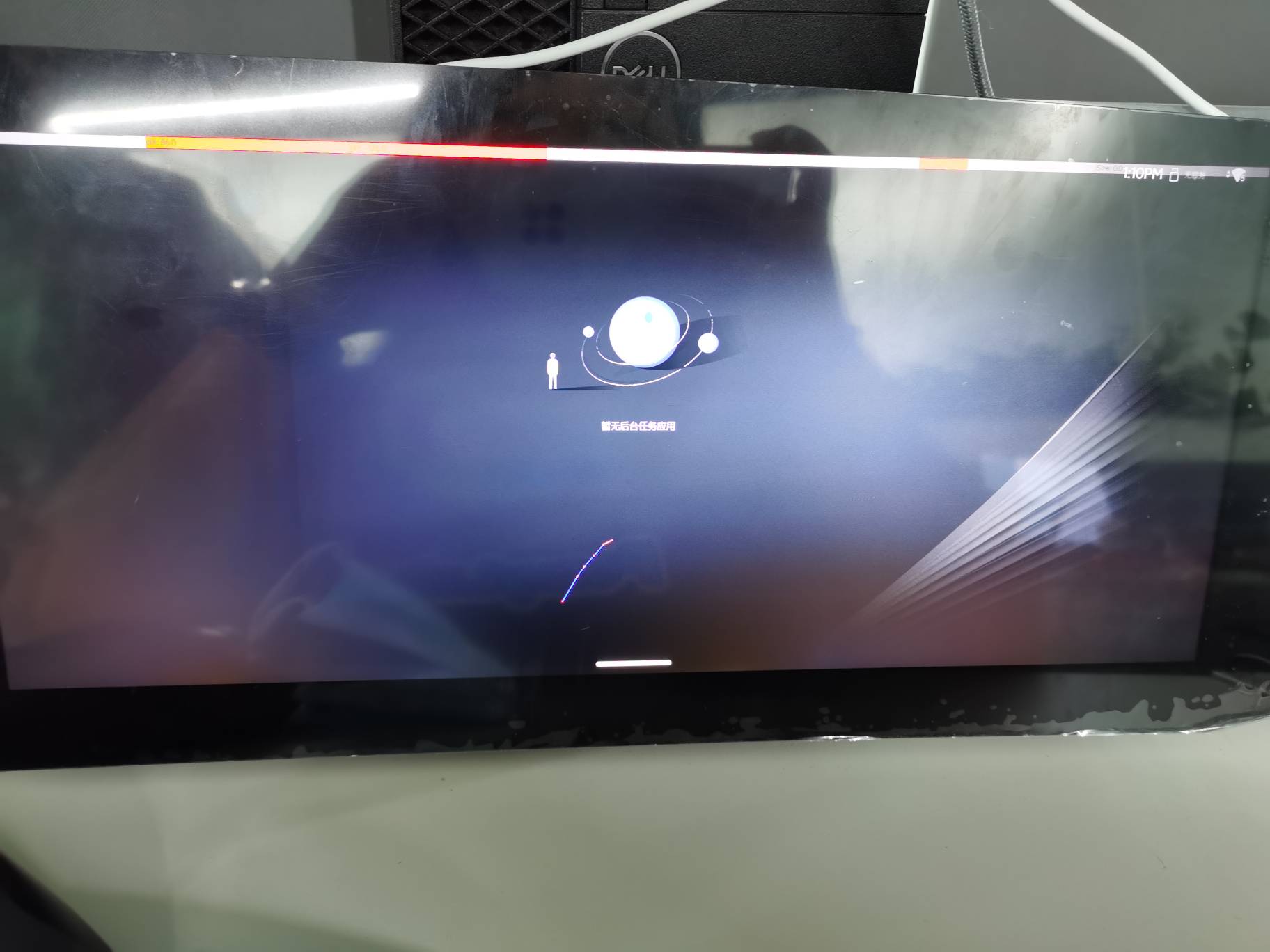

2、卡在放大的“暂无后台任务应用”界面

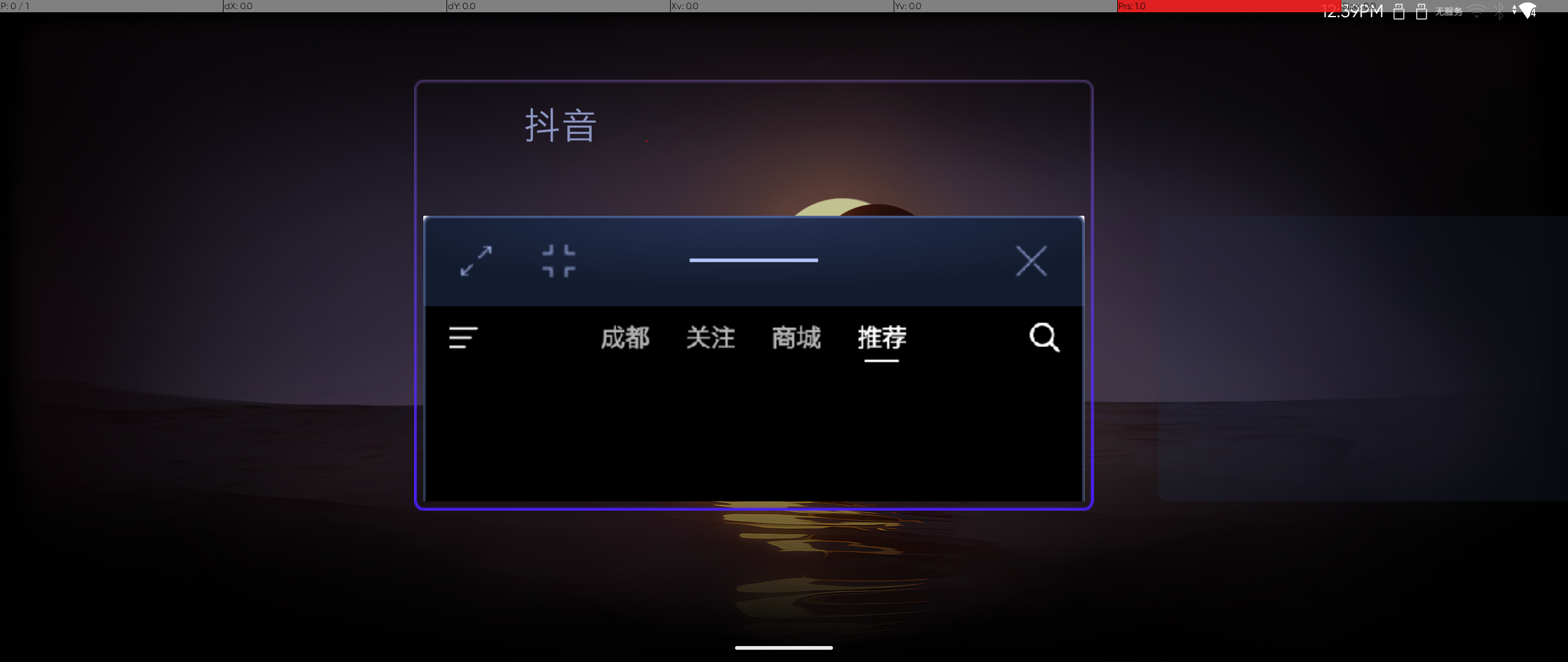

device-2023-07-05-174254.png - 小窗应用异常展示在task list 内 (1.89 MB) CD APP-王宏, 2023-07-05 18:11

1527.txt (4.05 MB) CDTS_Test 吴诗雨, 2023-07-14 16:00

History

#1 Updated by CD APP-王宏 about 2 years ago

意外卡在Background 状态下，堆栈日志如下

2023-06-27 05:52:14.931 10253-10253/com.android.launcher3 D/StateManager: goToState: Background animated: false
java.lang.Throwable
at com.android.launcher3.statemanager.StateManager.goToState(StateManager.java:199)
at com.android.launcher3.statemanager.StateManager.goToState(StateManager.java:148)
at com.android.quickstep.BaseActivityInterface$DefaultAnimationFactory.initUI(BaseActivityInterface.java:428)
at com.android.quickstep.LauncherActivityInterface.prepareRecentsUI(LauncherActivityInterface.java:137)
at com.android.quickstep.AbsSwipeUpHandler.lambda$onLauncherStart$5$AbsSwipeUpHandler(AbsSwipeUpHandler.java:428)
at com.android.quickstep.AbsSwipeUpHandler$$ExternalSyntheticLambda16.run(Unknown Source:2)
at com.android.quickstep.MultiStateCallback.setState(MultiStateCallback.java:83)
at com.android.quickstep.MultiStateCallback.setStateOnUiThread(MultiStateCallback.java:58)
at com.android.quickstep.AbsSwipeUpHandler.onGestureStarted(AbsSwipeUpHandler.java:803)
at com.android.quickstep.inputconsumers.OtherActivityInputConsumer.notifyGestureStarted(OtherActivityInputConsumer.java:388)
at com.android.quickstep.inputconsumers.OtherActivityInputConsumer.onMotionEvent(OtherActivityInputConsumer.java:343)
at com.android.quickstep.TouchInteractionService.onInputEvent(TouchInteractionService.java:706)
at com.android.quickstep.TouchInteractionService.$r8$lambda$QnySfMPM3HQvC_OREg1W70p37mY(Unknown Source:0)
at com.android.quickstep.TouchInteractionService$$ExternalSyntheticLambda4.onInputEvent(Unknown Source:2)
at com.android.systemui.shared.system.InputChannelCompat$InputEventReceiver$1.onInputEvent(InputChannelCompat.java:74)
at android.view.InputEventReceiver.dispatchInputEvent(InputEventReceiver.java:260)
at android.view.InputEventReceiver.nativeConsumeBatchedInputEvents(Native Method)
at android.view.InputEventReceiver.consumeBatchedInputEvents(InputEventReceiver.java:240)
at android.view.BatchedInputEventReceiver.onBatchedInputEventPending(BatchedInputEventReceiver.java:44)
at android.os.MessageQueue.nativePollOnce(Native Method)
at android.os.MessageQueue.next(MessageQueue.java:335)
at android.os.Looper.loopOnce(Looper.java:161)
at android.os.Looper.loop(Looper.java:288)
at android.app.ActivityThread.main(ActivityThread.java:7880)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:548)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1009)

发现 Background 之后未进入normal，这将会导致状态不对应，且界面上的展示也会出问题。
之前出现的Recent重叠在桌面上也可能于此有关

#2 Updated by CD APP-王宏 almost 2 years ago

File device-2023-07-05-174254.png added
Status changed from New to ASSIGNED
Assignee changed from CD APP-王宏 to CD FW-鲁凯峰

根据最新测试情况，发现是小窗应用在滑动过程中意外转变为全屏应用后突然消失，此处手势走了返回到全屏应用的逻辑，
导致页面展示异常，请小窗同事保证一下小窗不要出现应用全屏的情况

#3 Updated by CD APP-王宏 almost 2 years ago

Category changed from CD-APP to 窗口定制

#4 Updated by CD FW-鲁凯峰 almost 2 years ago

Status changed from ASSIGNED to RESOLVED
Assignee changed from CD FW-鲁凯峰 to CDTS_Test 吴诗雨
Resolution changed from -- to FIXED
Root cause set to 跟#118923一样

全屏问题已经解决

跟#118923一样

#5 Updated by CDTS_Test 吴诗雨 almost 2 years ago

Status changed from RESOLVED to VERIFIED

0708DB验证通过

#6 Updated by CDTS_Test 吴诗雨 almost 2 years ago

Status changed from VERIFIED to CLOSED

#7 Updated by CDTS_Test 吴诗雨 almost 2 years ago

File 1527.txt added
Status changed from CLOSED to New
Assignee changed from CDTS_Test 吴诗雨 to CD FW-鲁凯峰

122版本复现一次
复现情况：
打开APP，进入多任务管理器，返回主页。反复操作

#8 Updated by CD FW-鲁凯峰 almost 2 years ago

Category changed from 窗口定制 to CD-APP
Assignee changed from CD FW-鲁凯峰 to CD APP-王宏

跟上次相比,这次不存在本该是小窗应用变成全屏的情况

//上次小窗应用变成全屏
07-02 12:57:33.991 1041 6161 D FreeFormWindowHelper: handleFreeformTask : Task{c9b553d #1117 type=standard A=10104:com.ss.android.ugc.aweme U=0 visible=true mode=fullscreen translucent=false sz=2 visible freeform task=true rootAffinity=10104:com.ss.android.ugc.aweme isMini=false}

从这次的日志看,应用的launchMode都是对的
07-14 06:21:10.278 1611 2049 D FreeFormWindowHelper: handleFreeformTask : Task{f8630fe #2003 type=standard A=10122:com.qiyi.video U=0 visible=true mode=fullscreen translucent=false sz=1 visible freeform task=true rootAffinity=10122:com.qiyi.video isMini=false}
07-14 06:21:10.503 1611 21255 D FreeFormWindowHelper: handleFreeformTask : Task{f8630fe #2003 type=standard A=10122:com.qiyi.video U=0 visible=true mode=fullscreen translucent=false sz=1 visible freeform task=true rootAffinity=10122:com.qiyi.video isMini=false}
...
07-14 06:22:16.284 1611 18823 D FreeFormWindowHelper: handleFreeformTask : Task{6ebe6c #1 type=home ?? U=0 visible=true mode=fullscreen translucent=false sz=1 visible freeform task=true rootAffinity=null isMini=false}
07-14 06:22:16.776 1611 1761 D FreeFormWindowHelper: handleFreeformTask : Task{6ebe6c #1 type=home ?? U=0 visible=true mode=fullscreen translucent=false sz=1 visible freeform task=true rootAffinity=null isMini=false}

需要Launcher继续调查原因
