Bug #116963
测试 Test-IT #111062: V3.0功能测试
测试 Test-IT #111069: AF-V3.0--Launcher/SystemUI-小窗模式入口
【AF】【EVT】【小窗模式】打开音乐小窗以后，再打开视频小窗，视频或图片小窗以mini小窗出现，屏幕上有两个小窗【出现一次】
| Status: | CLOSED | Start date: | 2023-03-15 | |
|---|---|---|---|---|
| Priority: | High | Due date: | ||
| Assignee: | CDTS_Test 吴诗雨 | % Done: | 0% | |
| Category: | 窗口定制 | |||
| Target version: | - | |||
| Need_Info: | -- | Found Version: | FlatBuild_HH_MCE_FSE.M.R.user.01.00.0082.C101(X101) | |
| Resolution: | FIXED | Degrated: | -- | |
| Severity: | Normal | Verified Version: | ||
| Reproducibility: | Rarely | Fixed Version: | ||
| Test Type: | ST | Root cause: | 由于FreeFormWindowHelper中添加freeform task的时候,出现了异常,导致上一个Task没有删掉 |
Description
【前提条件】
1、设备已开机
【测试步骤】
1、打开音乐小窗
2、长按视频/图片，点击小窗
3、查看屏幕情况
【预期结果】
3、正常显示
【实际结果】

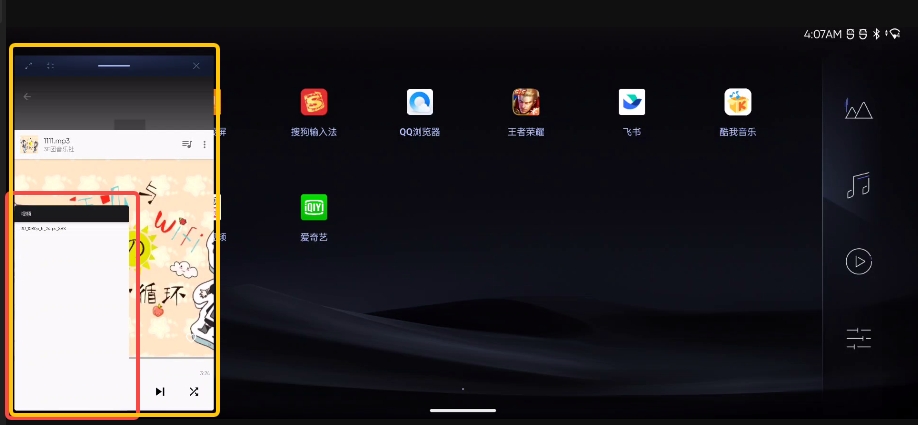

3、音乐小窗仍然在，视频/图片小窗以mini小窗的形式出现。屏幕上共有两个小窗
【备注】
在打开音乐小窗后反复切换mini和正常小窗，再打开的视频/图片小窗
logcat.txt
(3.75 MB)
20230315-164626.mp4 (3.37 MB)
log3.txt
(4.09 MB)
History
#1 Updated by CD FW 曹覃刚 over 2 years ago
- Category changed from CD-FW to 窗口定制
- Status changed from New to ASSIGNED
#2 Updated by CDTS_Test 吴诗雨 over 2 years ago
- File log3.txt added
- File 20230315-185833.jpeg added
- File 20230315-185900.jpg added
- Category changed from 窗口定制 to CD-FW

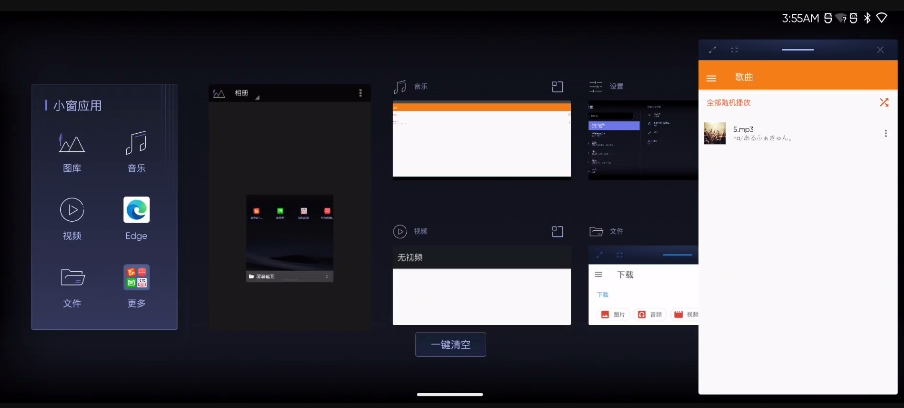

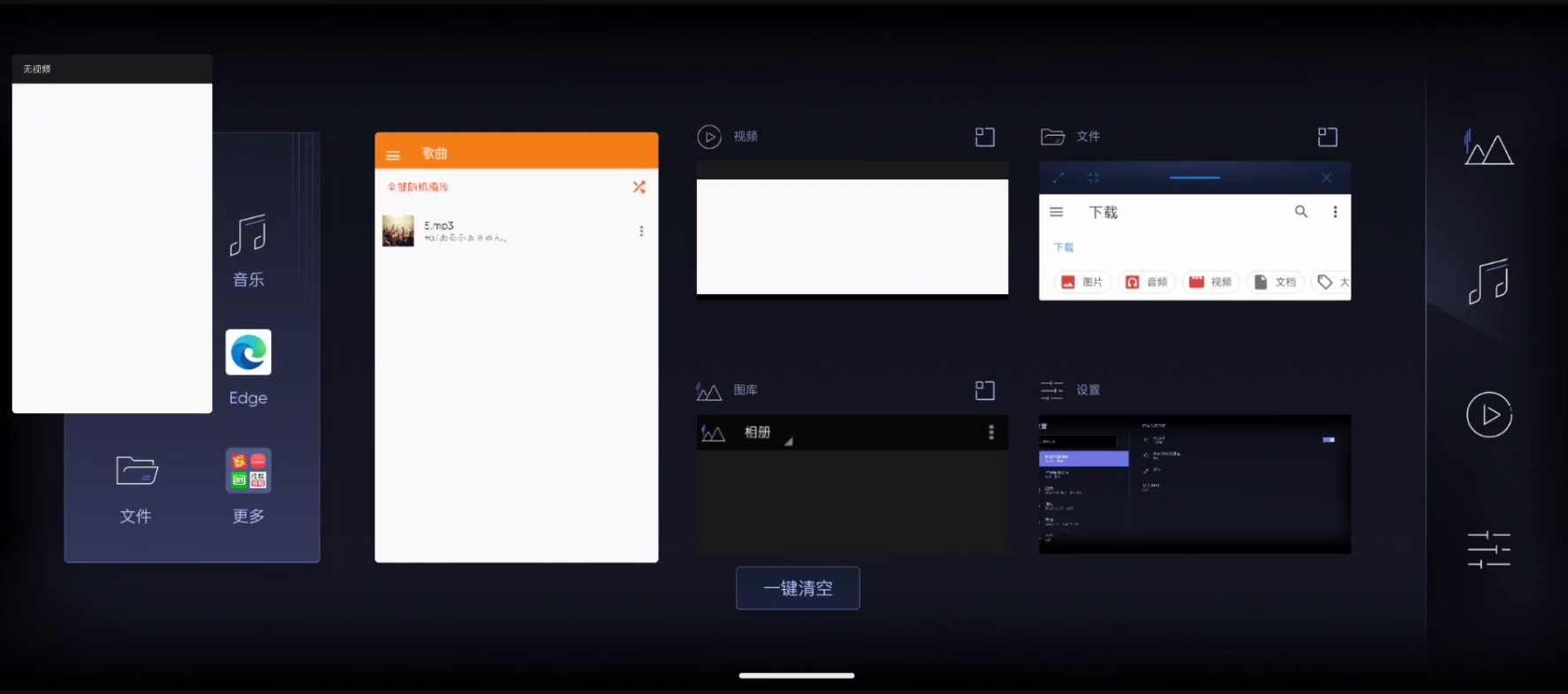

出现recent界面有两个小窗的情况，小窗卡片里有一个应用，表面还有另一个应用。
复现步骤：
1、打开图片/音乐/视频小窗，缩成mini
2、进入recent界面查看，返回
3、每次打开不同的应用重复1、2步骤
#3 Updated by CD TEST-方永红 over 2 years ago
- Category changed from CD-FW to 窗口定制
#4 Updated by CD FW-鲁凯峰 over 2 years ago
- Root cause set to 由于FreeFormWindowHelper中添加freeform task的时候,出现了异常,导致上一个Task没有删掉
■ Current conclusion
问题已经解决
■ My analysis
导致问题的原因是由于FreeFormWindowHelper中添加freeform task的时候,出现了异常,导致上一个Task没有删掉
03-14 04:05:17.562 2625 2625 E AndroidRuntime: Caused by: android.os.RemoteException: Remote stack trace:
03-14 04:05:17.562 2625 2625 E AndroidRuntime: at com.android.server.wm.FreeFormWindowHelper.lambda$addRootTaskReferenceIfNeeded$1$FreeFormWindowHelper(FreeFormWindowHelper.java:331)
03-14 04:05:17.562 2625 2625 E AndroidRuntime: at com.android.server.wm.FreeFormWindowHelper$$ExternalSyntheticLambda0.accept(Unknown Source:4)
03-14 04:05:17.562 2625 2625 E AndroidRuntime: at com.android.server.wm.ActivityRecord.forAllActivities(ActivityRecord.java:4082)
03-14 04:05:17.562 2625 2625 E AndroidRuntime: at com.android.server.wm.WindowContainer.forAllActivities(WindowContainer.java:1457)
03-14 04:05:17.562 2625 2625 E AndroidRuntime: at com.android.server.wm.WindowContainer.forAllActivities(WindowContainer.java:1451)
解决方法,在添加task的时候,加个非空的判断就行
■ Submit URL
http://10.0.232.3:3307/gerrit/c/general/platform/frameworks/base/+/188512
#5 Updated by IoT scm over 2 years ago
| ID | Project | Branch | Uploader |
| 188512 | general/platform/frameworks/base | Pre_figure_turbox-c2130c-la1.1-qssi12-dev | lukf0916@thundersoft.com |
| AF:MultiWindow: fix mutil freeform windows TC-RID: 1201-0204601 IssueID: TS-R-DF-116963 Change-Id: Ic90dab6740880c528cce8b7853736aa5872f39fb |
|||
#6 Updated by CD FW-鲁凯峰 over 2 years ago
- Status changed from ASSIGNED to RESOLVED
- Assignee changed from CD FW-鲁凯峰 to CDTS_Test 吴诗雨
- Resolution changed from -- to FIXED
#7 Updated by CDTS_Test 吴诗雨 over 2 years ago
【验证版本】FlatBuild_HH_MCE_FSE.M.R.user.01.00.0084.C101
【验证情况】
1、打开视频、音乐、图库小窗，缩成mini，返回recent查看。重复以上步骤30遍，未出现异常
2、打开视频小窗切换成mini，再打开音乐小窗切换成mini，再打开图库小窗切换成mini。重复以上步骤30遍，未出现异常
#8 Updated by CDTS_Test 吴诗雨 over 2 years ago
- Status changed from RESOLVED to VERIFIED
#9 Updated by CDTS_Test 吴诗雨 over 2 years ago
- Status changed from VERIFIED to CLOSED
