Bug #114666

【AF】【EVT2】【FOTA】【WIFI】FOTA升级后，搜索到路由器类型从Wifi4变更为 WIFI5

Added by CDTS_TEST 刘勇 over 2 years ago. Updated over 2 years ago.

Status:CLOSEDStart date:2022-12-16
Priority:HighDue date:
Assignee:CDTS_TEST 刘勇% Done:

100%

Category:LC
Target version:VX1_MCE_FSE_V5.0_20221230
Need_Info:-- Found Version:FlatBuild_HH_VX1_MCE_FSE.M.D.user.01.00.X101.202212140521
Resolution:WONTFIX Degrated:No
Severity:Normal Verified Version:
Reproducibility:Every time Fixed Version:
Test Type:IT Root cause:需求变更，wifi 功能移除https://share.thundersoft.com/redmine/issues/114797

Description

【前提条件】
1.中控环境搭建好
2.中控环境中有全量包

【测试步骤】

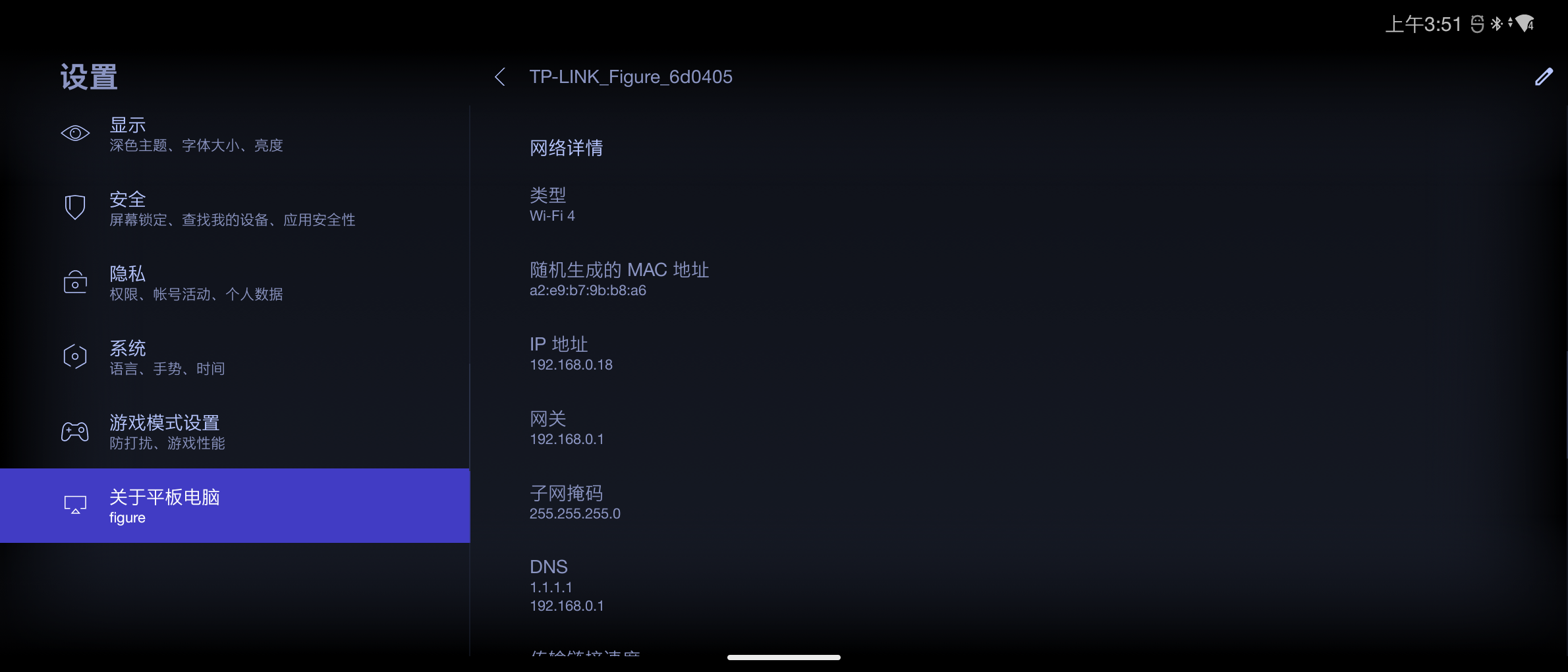

2.查看设置中已保存的WIFI4 路由。查看并截图
3.中控通过网线链接路由，路由通过网线或者wifi 链接DUT
4.中控IP：192.168.0.2 ，DUT-IP：192.168.0.18
5.进入终端，cd ~/server/目录，并运行命令
sudo ./run_https.sh
sudo ./run_orch.sh
adb shell logcat > logcat-screnen-not_black.txt
6.待功能启动
7.选择功能2（Download PACKAGE）
输入"2"->按"回车" ->输入 "1"->输入"update.zip"
8.等待下载完成并选择运行功能0（run script ）
输入 "0"-> 按"回车"->等待log中有提示下载完成(download succesful)->“adb reboot "
9.升级成功后，查看WIFI类型

【期望结果】
9.升级前后，WIFI类型一致

【实际结果】

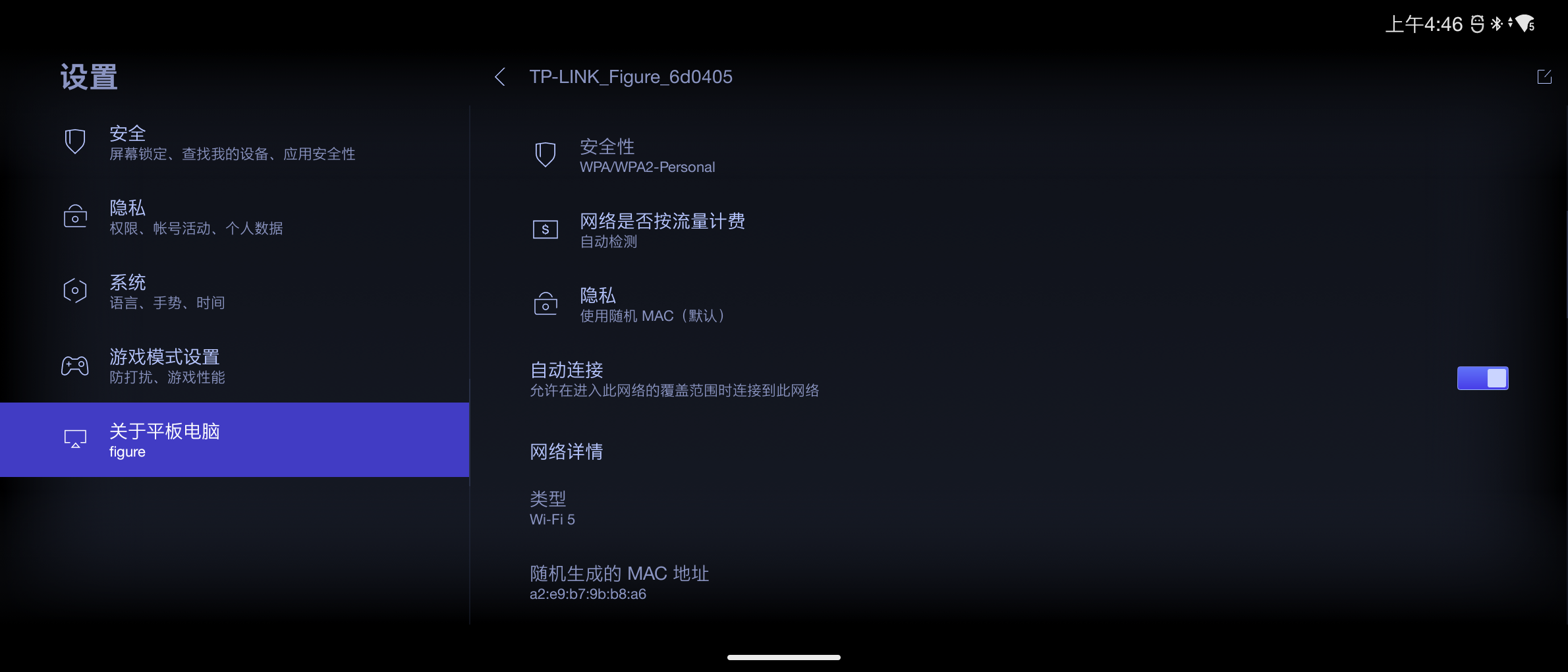

4.升级后，WIFI类型由WIFI4变为WIFI5

【复现概率】2/2
【路由器】TP-WDR5620
见截图

logcat-boxes-fota-dut_screen_not_poweroff.txt Magnifier (3.38 MB) CDTS_TEST 刘勇, 2022-12-16 22:31

logcat-boxes-fota-dut_inor_upgrade_fail.txt Magnifier (2.28 MB) CDTS_TEST 刘勇, 2022-12-16 22:45

logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt Magnifier (2.49 MB) CDTS_TEST 刘勇, 2022-12-16 22:54

logcat-boxes-fota-dut-all_parameter.txt Magnifier (4.07 MB) CDTS_TEST 刘勇, 2022-12-16 22:54

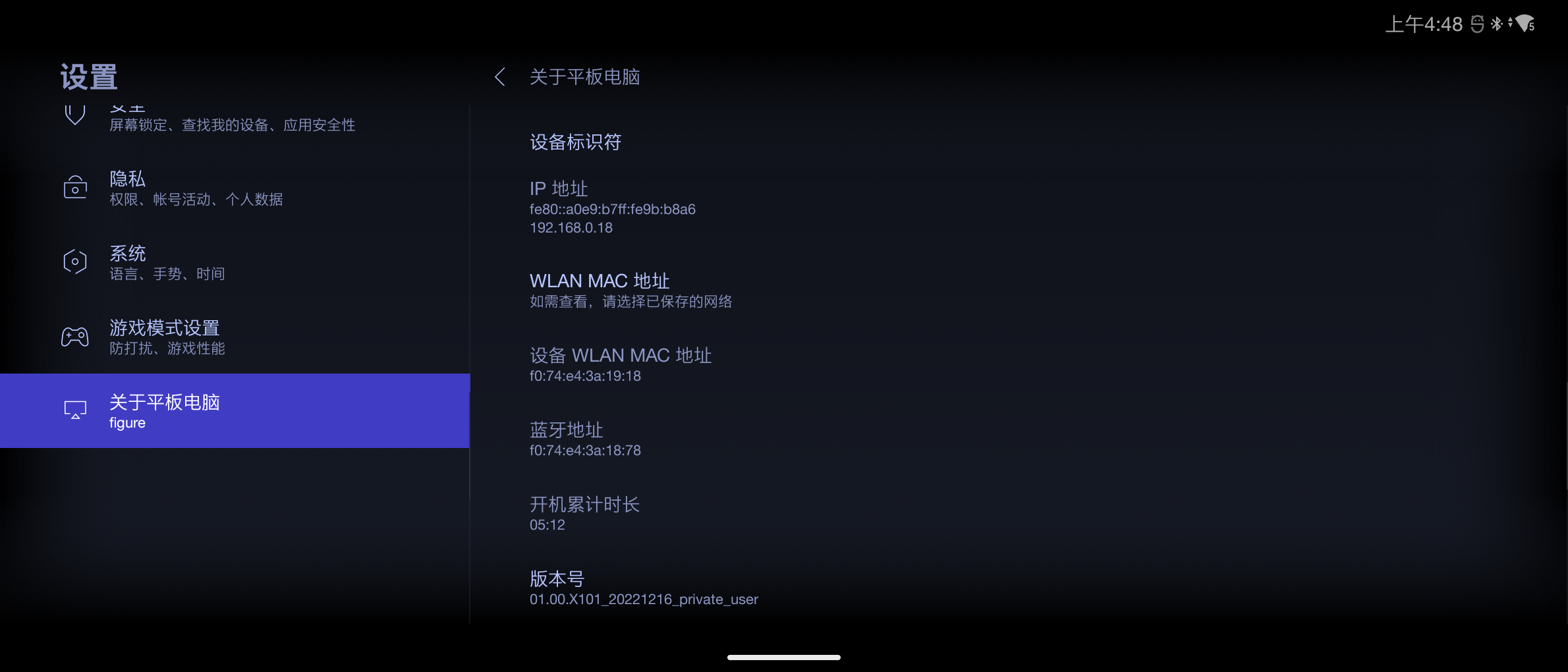

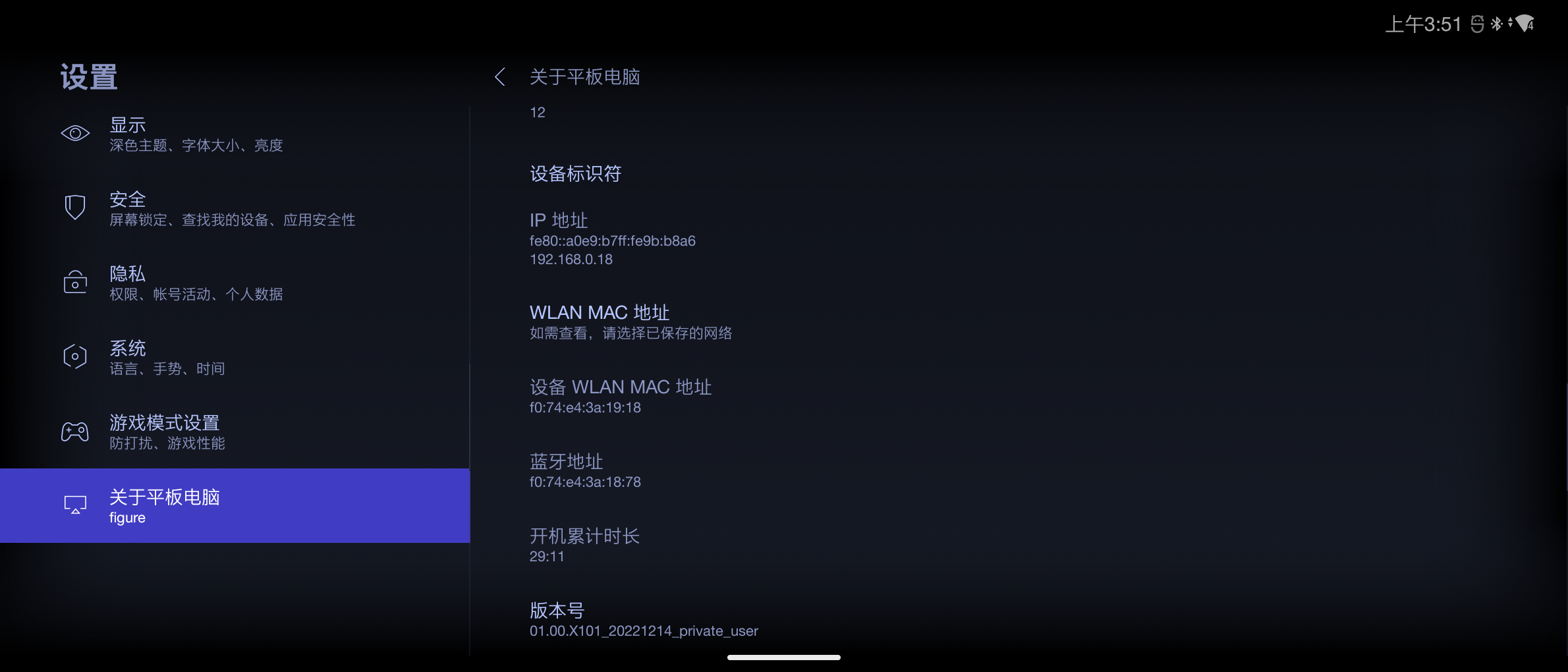

Before_version Before_wifi_type Upgrade_banben Upgrade_wifi_type Tp-link_figure_6d0405--showonotherdevice

Related issues

Copied from Figure - Bug #114665: 【BSP】【EVT2】【FOTA】增量包升级失败 CLOSED 2022-12-16

History

#1 Updated by CDTS_TEST 刘勇 over 2 years ago

  • Subject changed from 【BSP】【EVT2】【FOTA】【WIFI】FOTA升级后，搜索到路由器类型从Wifi4变更为 WIFI5 to 【AF】【EVT2】【FOTA】【WIFI】FOTA升级后，搜索到路由器类型从Wifi4变更为 WIFI5
  • Category changed from BSP to CD-FW

#2 Updated by CD LC 陶洪普 over 2 years ago

  • Status changed from New to ASSIGNED

Checking

#3 Updated by CD LC 陶洪普 over 2 years ago

分析:
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt
这个日志是升级之后的日志, 从日志中查看有一次连接和断开. 连接的是 TP-LINK_Figure_6d0405 Associated with 6c:b1:58:0f:7d:39
-------------
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:22:32.135 3441 3441 I wpa_supplicant: wlan0: Trying to associate with SSID 'TP-LINK_Figure_6d0405'
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:22:32.630 3441 3441 I wpa_supplicant: wlan0: Associated with 6c:b1:58:0f:7d:39
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:22:32.630 3441 3441 I wpa_supplicant: wlan0: CTRL-EVENT-SUBNET-STATUS-UPDATE status=0
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:22:32.964 3441 3441 I wpa_supplicant: wlan0: WPA: RX message 1 of 4-Way Handshake from 6c:b1:58:0f:7d:39 (ver=2)
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:22:32.964 3441 3441 I wpa_supplicant: wlan0: WPA: Sending EAPOL-Key 2/4
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:22:33.088 3441 3441 I wpa_supplicant: wlan0: WPA: RX message 3 of 4-Way Handshake from 6c:b1:58:0f:7d:39 (ver=2)
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:22:33.088 3441 3441 I wpa_supplicant: wlan0: WPA: Sending EAPOL-Key 4/4
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:22:33.119 3441 3441 I wpa_supplicant: wlan0: WPA: Key negotiation completed with 6c:b1:58:0f:7d:39 [PTK=CCMP GTK=CCMP]
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:22:33.119 3441 3441 I wpa_supplicant: wlan0: CTRL-EVENT-CONNECTED - Connection to 6c:b1:58:0f:7d:39 completed [id=0 id_str=%7B%22configKey%22%3A%22%5C%22TP-LINK_Figure_6d0405%5C%22WPA_PSK%22%2C%22creatorUid%22%3A%221000%22%7D]
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:29:08.220 3441 3441 I wpa_supplicant: wlan0: CTRL-EVENT-DISCONNECTED bssid=6c:b1:58:0f:7d:39 reason=3 locally_generated=1
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:29:08.752 3441 3441 E wpa_supplicant: Failed to invoke HIDL iface callback
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:29:08.752 3441 3441 I wpa_supplicant: Try to unregister vendor STA network
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:29:08.752 3441 3441 E wpa_supplicant: Failed to invoke HIDL iface callback
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:29:08.753 3441 3441 I wpa_supplicant: nl80211: deinit ifname=wlan0 disabled_11b_rates=0
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:29:08.753 3441 3441 I wpa_supplicant: Try to unregister vendor interface
logcat-boxes-fota-dut-all_parameter2_WIFI4_Changeto_WIFI5.txt:12-14 03:29:08.753 3441 3441 I wpa_supplicant: wlan0: CTRL-EVENT-TERMINATING
----------------
12-14 03:22:33.462 1500 1860 W WifiScoreReport: Cannot start external scoring netId=100 currentNetId=100 currentNetCapabilities=[ Transports: WIFI Capabilities: NOT_METERED&INTERNET&NOT_RESTRICTED&TRUSTED&NOT_VPN&NOT_ROAMING&NOT_CONGESTED&NOT_SUSPENDED&NOT_VCN_MANAGED LinkUpBandwidth>=12000Kbps LinkDnBandwidth>=30000Kbps Specifier: <WifiNetworkAgentSpecifier [WifiConfiguration=, SSID="TP-LINK_Figure_6d0405", BSSID=6c:b1:58:0f:7d:39, band=1, mMatchLocalOnlySpecifiers=false]> TransportInfo: <SSID: "TP-LINK_Figure_6d0405", BSSID: 6c:b1:58:0f:7d:39, MAC: a2:e9:b7:9b:b8:a6, Security type: 2, Supplicant state: COMPLETED, HE Eight Max VHT Spatial Streams Supported AP: false, Eight Max VHT Spatial streams support: false, Wi-Fi standard: 4, RSSI: -2, Link speed: 150Mbps, Tx Link speed: 150Mbps, Max Supported Tx Link speed: 150Mbps, Rx Link speed: 150Mbps, Max Supported Rx Link speed: 150Mbps, Frequency: 2462MHz, Net ID: 0, Metered hint: false, score: 60, CarrierMerged: false, SubscriptionId: -1, IsPrimary: 1> SignalStrength: -2 OwnerUid: 1000 AdminUids: [1000] SSID: "TP-LINK_Figure_6d0405"] sessionId=1008

从连接信息看,连接的是wifi 4, BSSID: 6c:b1:58:0f:7d:39, MAC: a2:e9:b7:9b:b8:a6, freq 2462

#4 Updated by CD LC 陶洪普 over 2 years ago

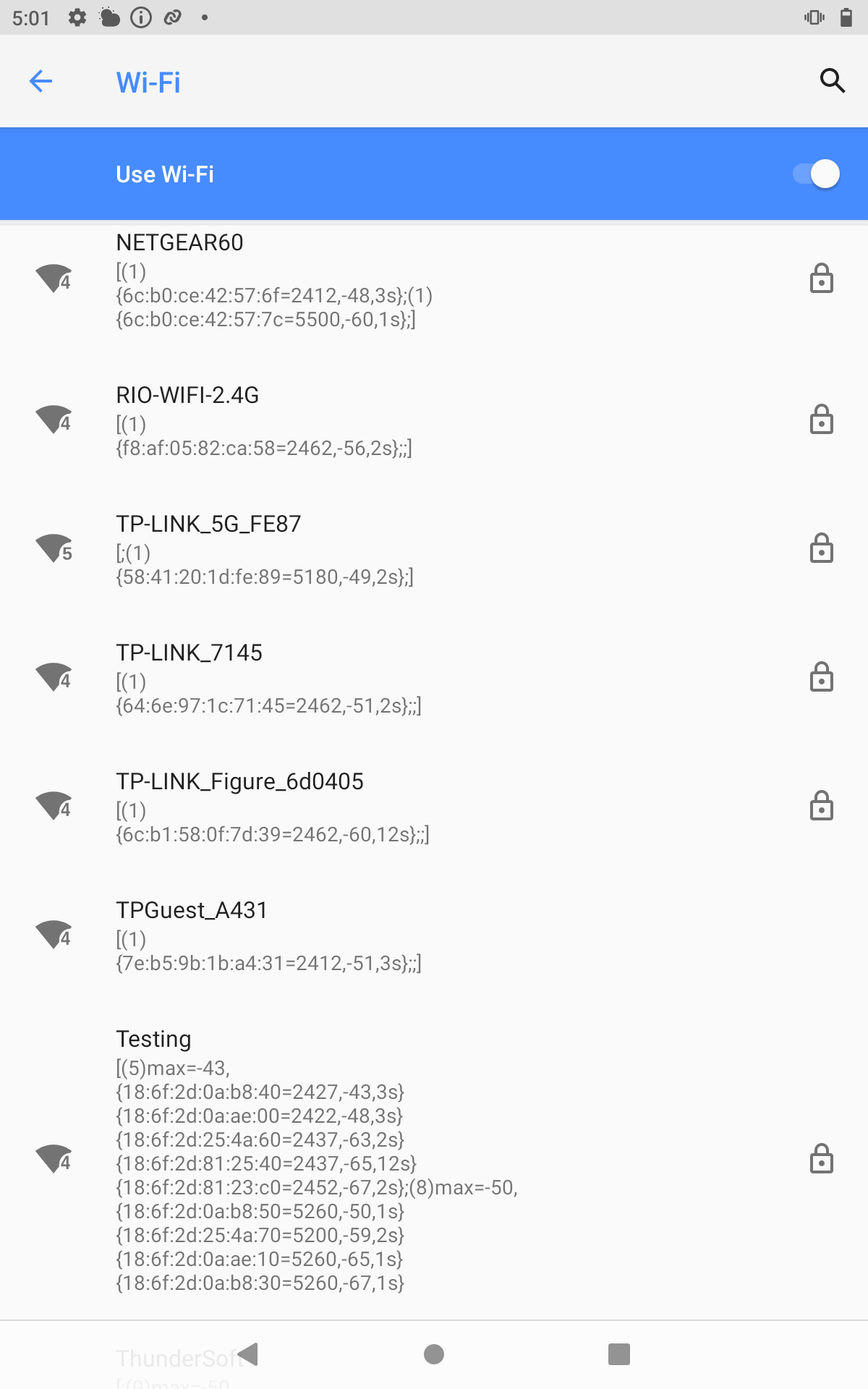

在TP-LINK_Figure_6d0405--ShowOnOtherDevice.png 中显示 TP-LINK_Figure_6d0405 在其他设备上显示的是wifi 4, 2462 Channel

#5 Updated by CD LC 陶洪普 over 2 years ago

与测试刘勇沟通, 协调时间复现测试.

#6 Updated by CD FW 曹覃刚 over 2 years ago

  • Category changed from CD-FW to LC

#7 Updated by CD TPM-王祥林 over 2 years ago

  • Status changed from ASSIGNED to NEED_INFO
  • Assignee changed from CD LC 陶洪普 to CDTS_TEST 刘勇
  • Resolution deleted (--)

刘勇

根据下面的最新需求，WIFI功能会被移除，整个网络菜单都会删除掉。所以不存在设备连接WIFI的场景了，请确认是否需要close这个票。
https://share.thundersoft.com/redmine/issues/114797

#8 Updated by CDTS_TEST 刘勇 over 2 years ago

  • Assignee changed from CDTS_TEST 刘勇 to CD LC 陶洪普

可close此票，Need_INFO状态，测试这边无法修改状态走到Close，麻烦走一下状态

#9 Updated by CDTS-TEST 周婷 over 2 years ago

  • Status changed from NEED_INFO to RESOLVED
  • Assignee changed from CD LC 陶洪普 to CDTS_TEST 刘勇
  • % Done changed from 0 to 100
  • Resolution set to WONTFIX
  • Degrated changed from -- to No
  • Root cause set to 需求变更，wifi 功能移除https://share.thundersoft.com/redmine/issues/114797

#10 Updated by CDTS_TEST 刘勇 over 2 years ago

  • Status changed from RESOLVED to VERIFIED

#11 Updated by CDTS_TEST 刘勇 over 2 years ago

  • Status changed from VERIFIED to CLOSED
